How to Install Snipe-IT on Your UGREEN NAS

Snipe-IT is a free, open source IT asset management system written in PHP. Snipe-IT was made for IT asset management, to enable IT departments to track who has which laptop, when it was purchased, which software licenses and accessories are available, and so on. In this step by step guide I will show you how to install Snipe-IT on your UGREEN NAS using Docker and Portainer.

💡Note: This guide works perfectly with the latest Snipe-IT v8.3.7 release.

💡Note: Check out my guide on how to Install Snipe-IT on Your Synology NAS.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your UGREEN NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

⚠️Mandatory: Enable HTTPS on your UGREEN NAS.

  • STEP 4

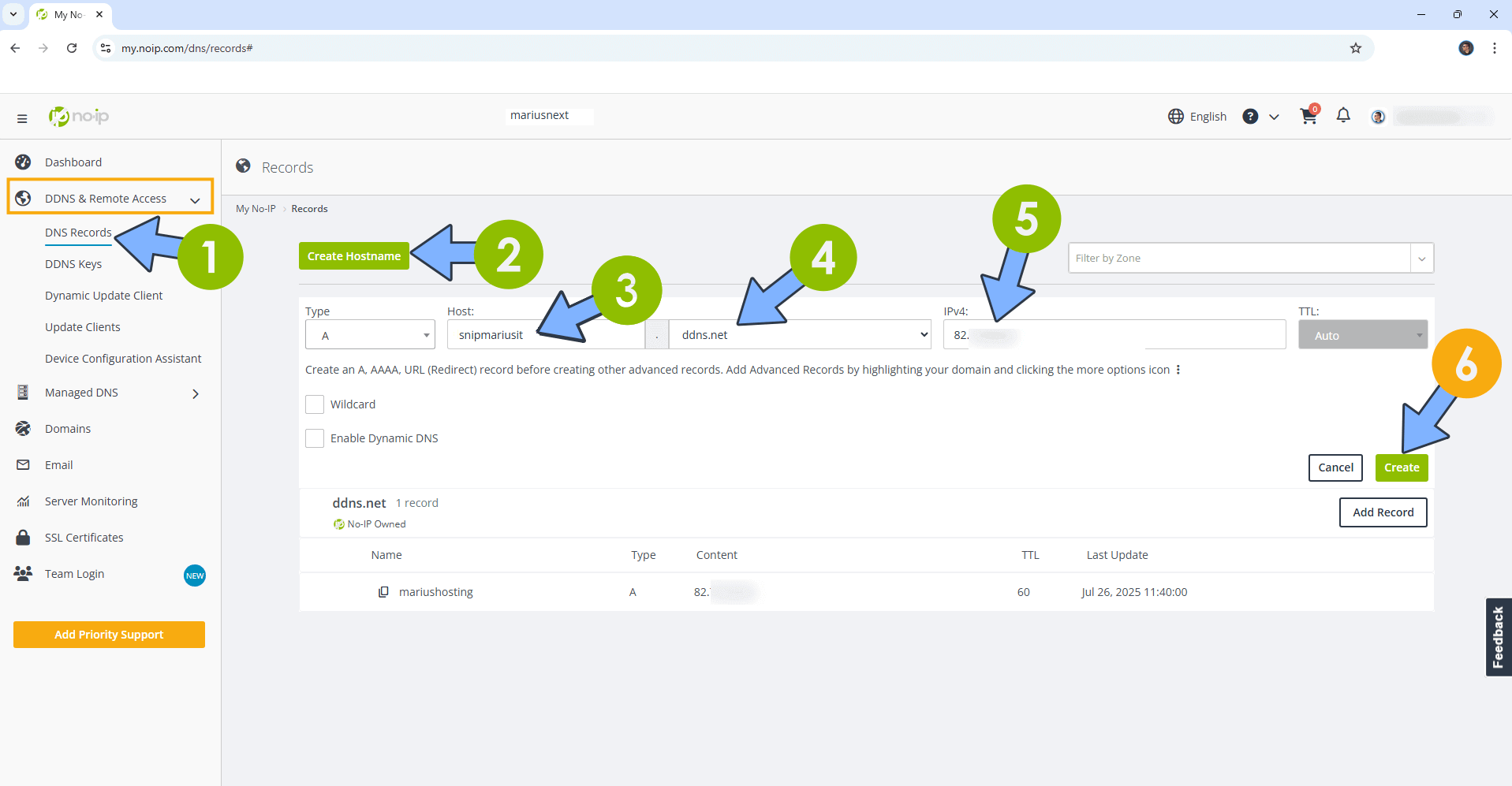

Create a new hostname on the noip website using your noip account. For example, I have created snipmariusit as Host and I use the free ddns.net domain. In the IP Address area, type in your own IPV4 IP address from your ISP, then click Create. Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 1

  • STEP 5

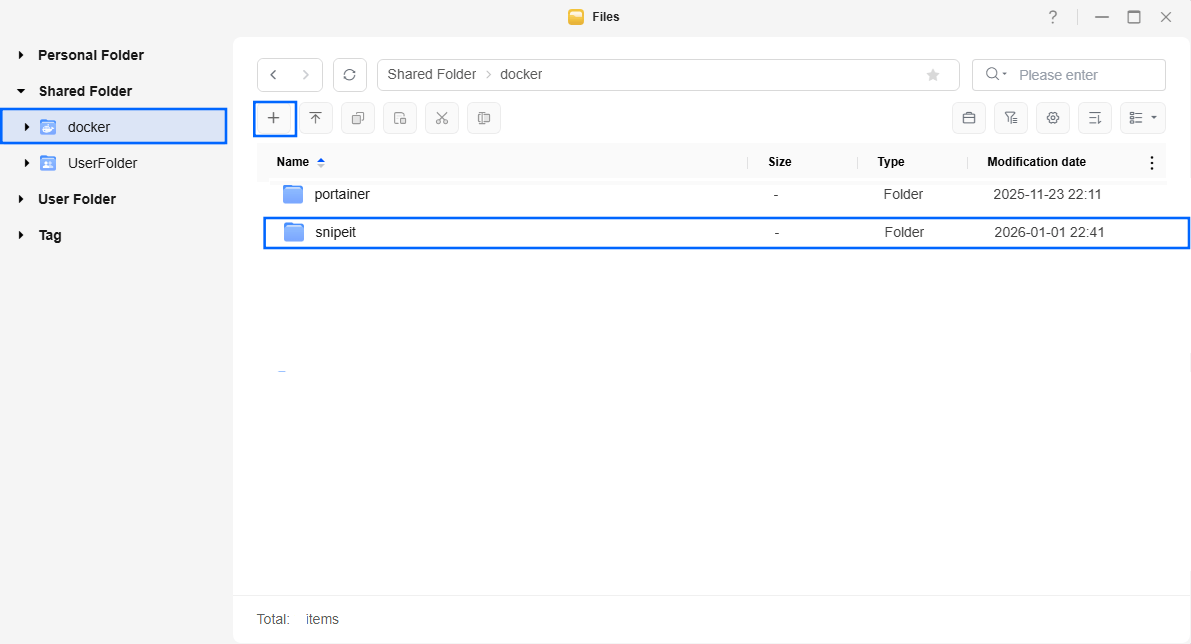

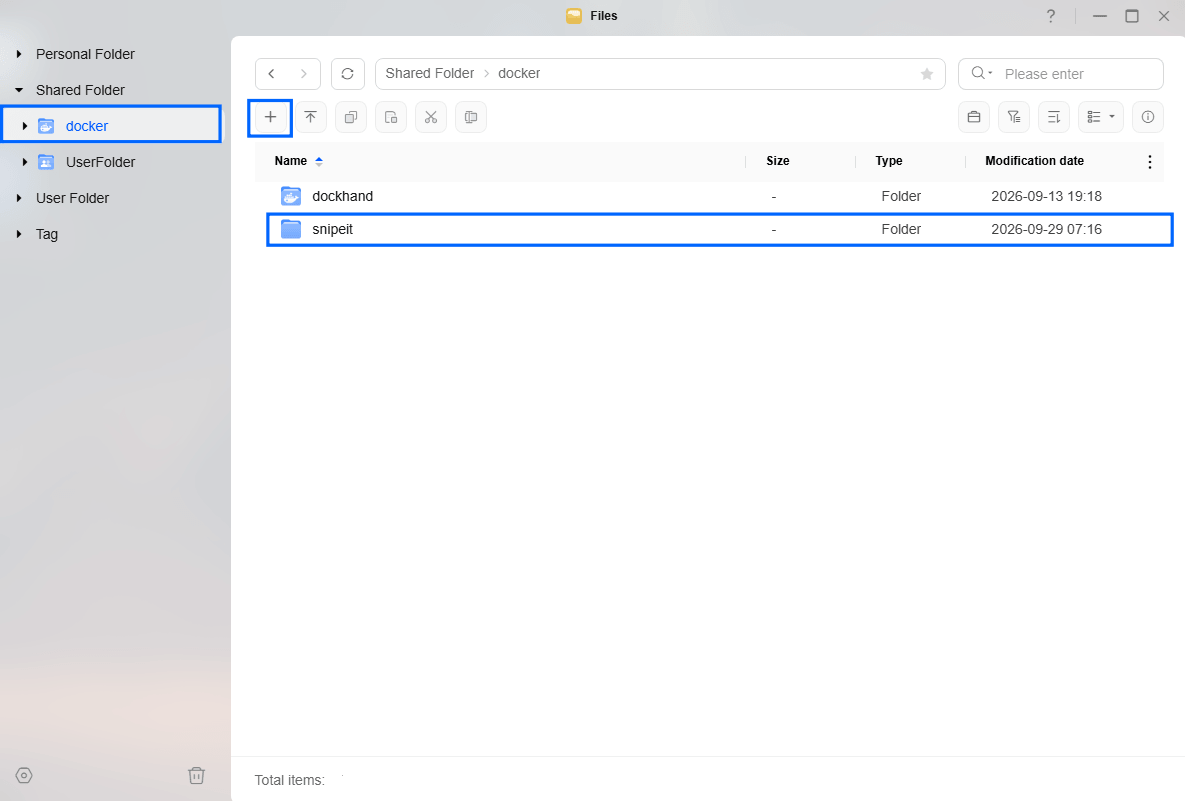

Go to Files and open the docker folder. Inside the docker folder, create one new folder and name it snipeit. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Snipe-IT UGREEN NAS Set up 2

  • STEP 6

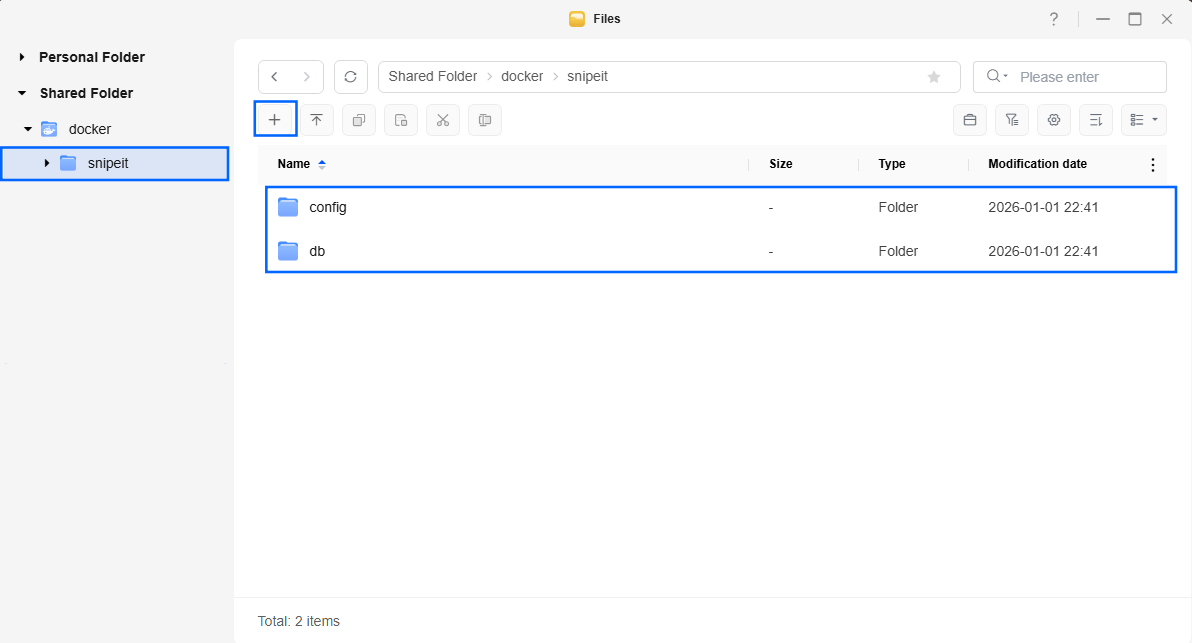

Now create two new folders inside the snipeit folder that you have previosuly created at STEP 5 and name them config and db. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Snipe-IT UGREEN NAS Set up 3

  • STEP 7

Follow my step by step guide on how to activate SMTP for your Gmail account. This step is mandatory. Note: If you don’t want to use the easiest way for SMTP with Google and you already have SMTP details from your own Mail Server, you can just skip this STEP and use your personalized email SMTP details instead.

  • STEP 8

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Home then Live connect. Follow the instructions in the image below.

Portainer Add Stack NAS 1

On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

Portainer Add Stack NAS 2

  • STEP 9

In the Name field type in snipeit. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  db:
    image: mariadb:11.4-noble #LTS Long Time Support Until May 29, 2029.
    container_name: SNIPE-IT-DB
    security_opt:
      - no-new-privileges:false
    user: 999:10
    volumes:
      - /volume1/docker/snipeit/db:/var/lib/mysql:rw
    environment:
      - MYSQL_ROOT_PASSWORD=snipe
      - MYSQL_USER=snipe
      - MYSQL_PASSWORD=snipe
      - MYSQL_DATABASE=snipe
      - TZ=Europe/Bucharest
    restart: on-failure:5

  snipeit:
    image: snipe/snipe-it:latest
    container_name: SNIPE-IT
    healthcheck:
      test: curl -f http://localhost:80/ || exit 1
    depends_on:
      - db
    volumes:
      - /volume1/docker/snipeit/config:/var/lib/snipeit:rw
    environment:
      - TZ=Europe/Bucharest
      - APP_URL=https://snipmariusit.ddns.net
      - NGINX_APP_URL=https://snipmariusit.ddns.net
      - APP_KEY=base64:ivoEDdeb+0ywdn/+d/lF8414TrIwbFOyz8DI187V8vo=
      - APP_FORCE_TLS=true
      - MYSQL_PORT_3306_TCP_ADDR=db
      - MYSQL_PORT_3306_TCP_PORT=3306
      - MYSQL_DATABASE=snipe
      - MYSQL_USER=snipe
      - MYSQL_PASSWORD=snipe
      - PUID=999
      - PGID=10
      - MAIL_PORT_587_TCP_ADDR=smtp.gmail.com
      - MAIL_PORT_587_TCP_PORT=587
      - MAIL_ENV_FROM_ADDR=Your-own-gmail-address
      - MAIL_ENV_FROM_NAME=Your-own-gmail-address
      - MAIL_ENV_ENCRYPTION=TLS
      - MAIL_ENV_USERNAME=Your-own-gmail-address
      - MAIL_ENV_PASSWORD=Your-own-app-password
    ports:
      - 1339:80
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value numbers for user with your own values. (Follow my step by step guide on how to do this.) 999 is my personal PUID value and 10 is my personal PGID value. You have to type in your own values.
Note: Before you paste the code above in the Web editor area below, change the value for TZ. (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Web editor area below, change the value for APP_URL and type in your own NO IP DDNS with https:// at the beginning that you have previously created at STEP 4.
Note: Before you paste the code above in the Web editor area below, change the value for NGINX_APP_URL and type in your own NO IP DDNS with https:// at the beginning that you have previously created at STEP 4.
Note: Before you paste the code above in the Web editor area below, change the value for APP_KEY. (Generate your own free APP KEY.)
Note: Before you paste the code above in the Web editor area below, change the value numbers for PUID and PGID with your own values. (Follow my step by step guide on how to do this.) 999 is my personal PUID value and 10 is my personal PGID value. You have to type in your own values.
Note: Before you paste the code above in the Web editor area below, change the value for MAIL_ENV_FROM_ADDR and type in your own Gmail address. STEP 7.
Note: Before you paste the code above in the Web editor area below, change the value for MAIL_ENV_FROM_NAME and type in your own Gmail address. STEP 7.
Note: Before you paste the code above in the Web editor area below, change the value for MAIL_ENV_USERNAME and type in your own Gmail address. STEP 7.
Note: Before you paste the code above in the Web editor area below, change the value for MAIL_ENV_PASSWORD and type in your own Gmail app password. STEP 7. ⚠️Warning: Do NOT confuse with your own Gmail password. This is the Gmail APP password.

Snipe-IT UGREEN NAS Set up 4

  • STEP 10

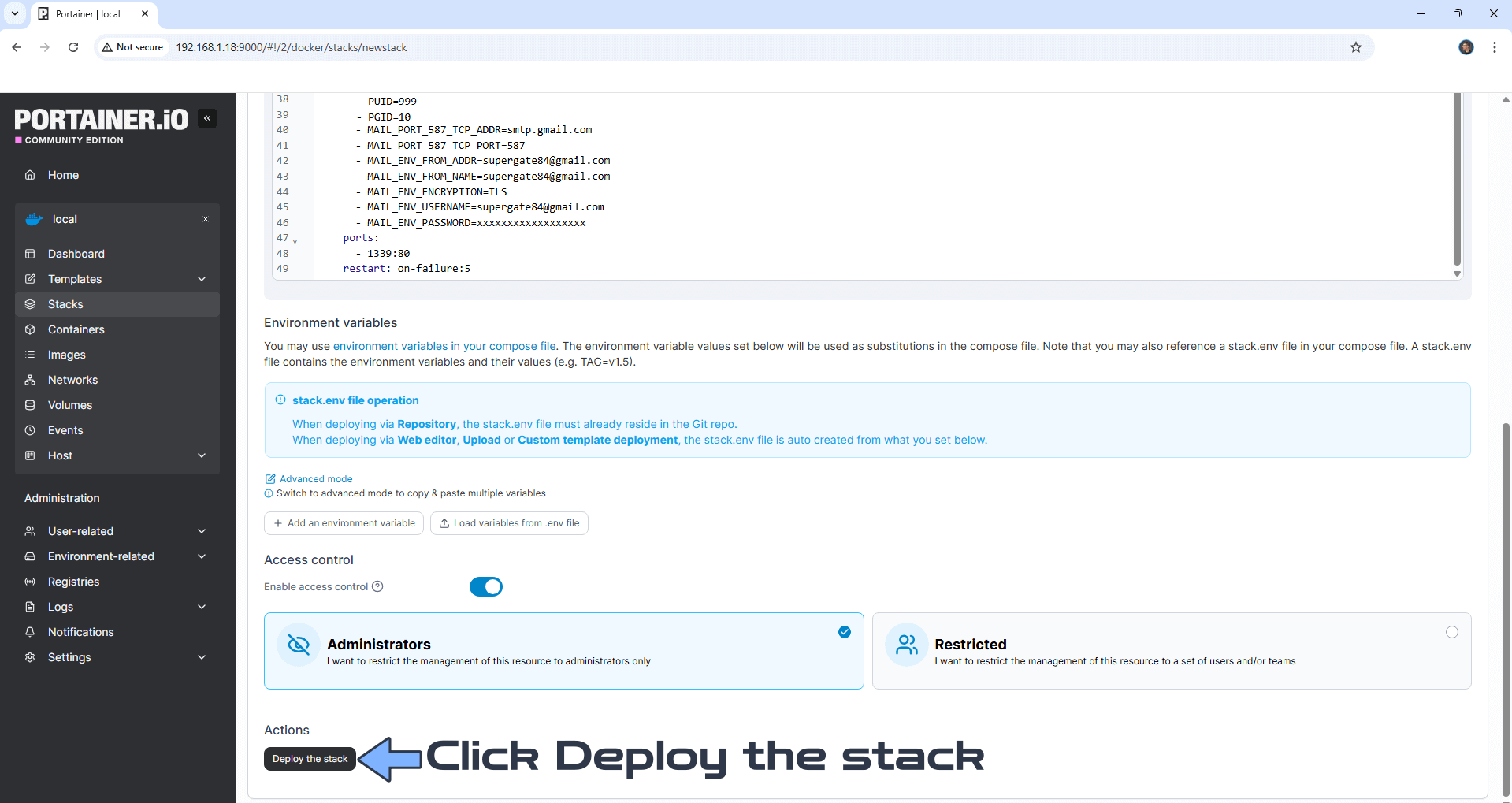

Scroll down on the page until you see a button called Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Snipe-IT UGREEN NAS Set up 5 new 2026

  • STEP 11

If everything goes right, you will see this message at the top right of your screen: “Success Stack successfully deployed“.

Portainer Success Stack NAS

  • STEP 12

Open your Nginx Proxy Manager container that you have previously installed at STEP 3. Click Add Proxy Host. A new pop up window will open. Add the following details:

Domain Names: Type in your own noip domain name that you have previously created at STEP 4.
Scheme: http
Forward Hostname/IP: Type in the local NAS IP of your UGREEN NAS.
Forward Port: Type in the Snipe-IT local Port that is 1339
Check Block Common Exploits
Check Websockets Support
Click the SSL tab. Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 6

  • STEP 13

After you click the SSL tab, add the following details:

SSL Certificate: Request a new SSL Certificate
Check: Force SSL
Check: HSTS Enabled
Check: HTTP/2 Support
Click Save. Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 7

  • STEP 14

In the Proxy Hosts area, if everything goes right, you will see that your Snipe-IT hostname has been generated. Click on it. Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 8

  • STEP 15

🟢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guides forget to support my work, or just ignore STEP 1. I’ve been very honest about this aspect of my work since the beginning: I don’t run any ADS, I don’t require subscriptions, paid or otherwise, I don’t collect IPs, emails, and I don’t have any referral links from Amazon or other merchants. I also don’t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. It’s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

  • STEP 16

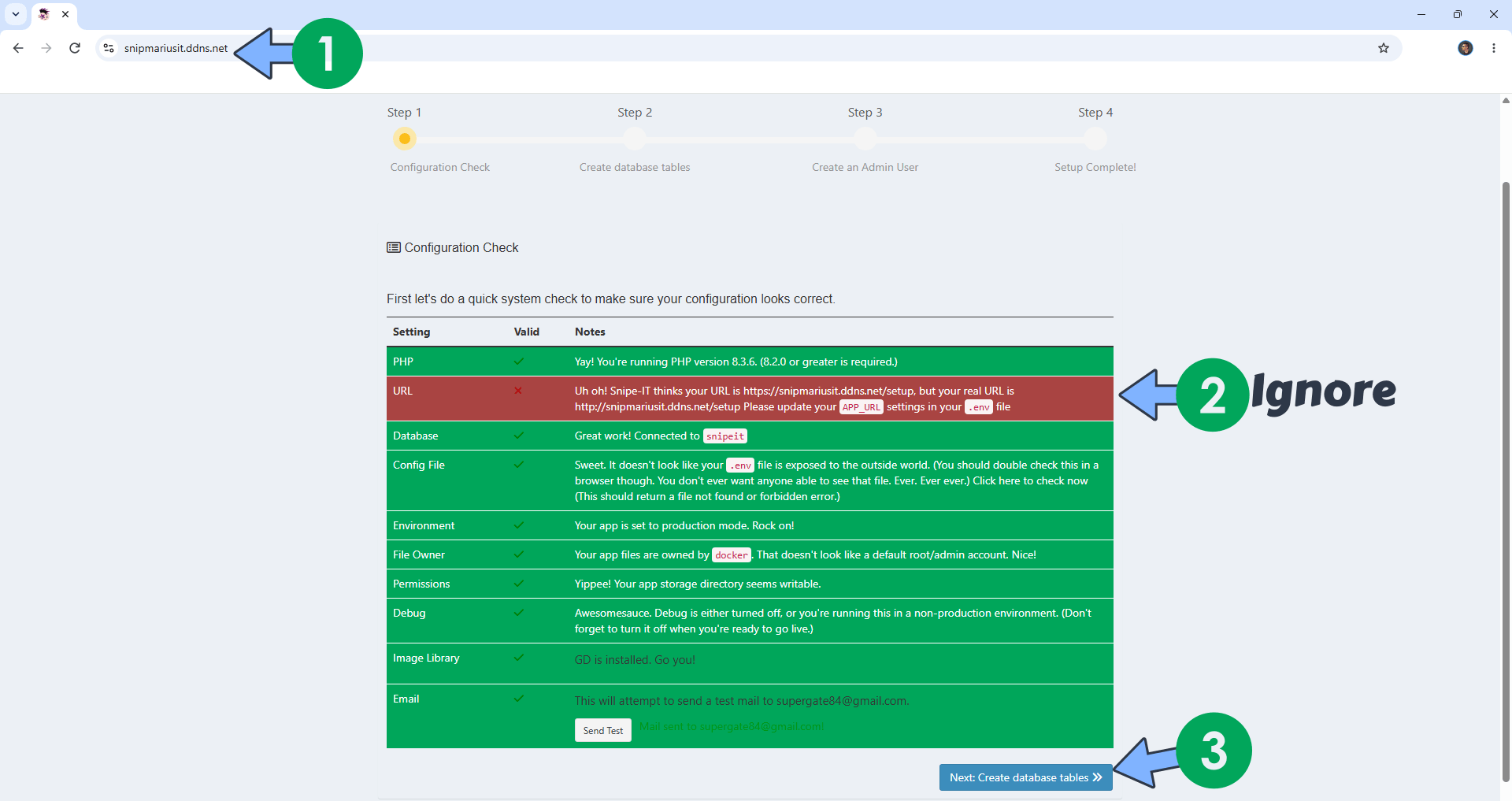

Now open your browser and type in your HTTPS/SSL certificate like this https://snipeit.ddns.net In my case it’s https://snipmariusit.ddns.net If everything goes right, you will see the Snipe-IT installation page. Click Next: Create Database Tables. ⚠️Warning: Creating database tables will take some time. Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 9

  • STEP 17

In some cases after you refresh the page, you will get a 500 SERVER ERROR just refresh the page in the browser again.

  • STEP 18

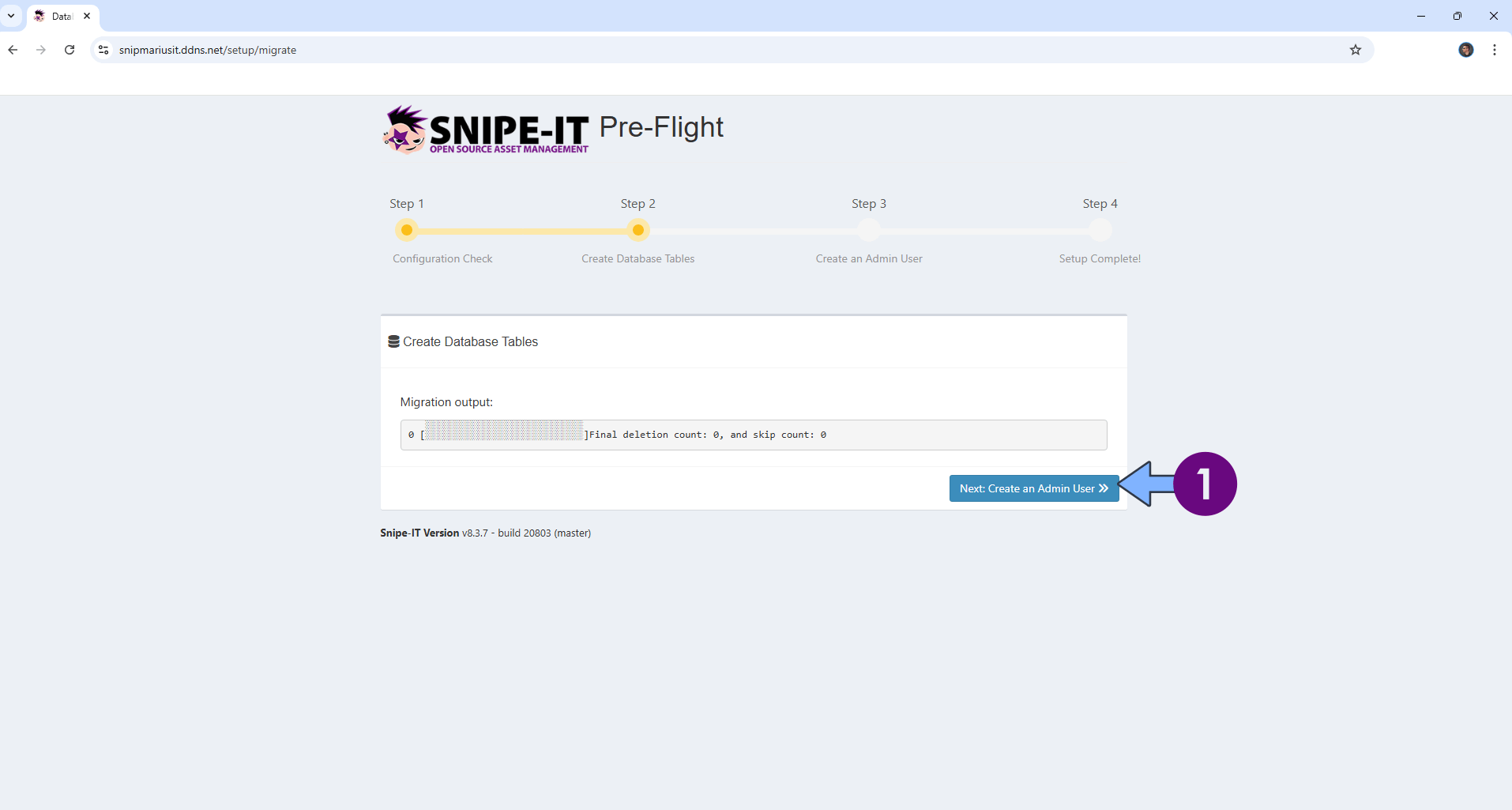

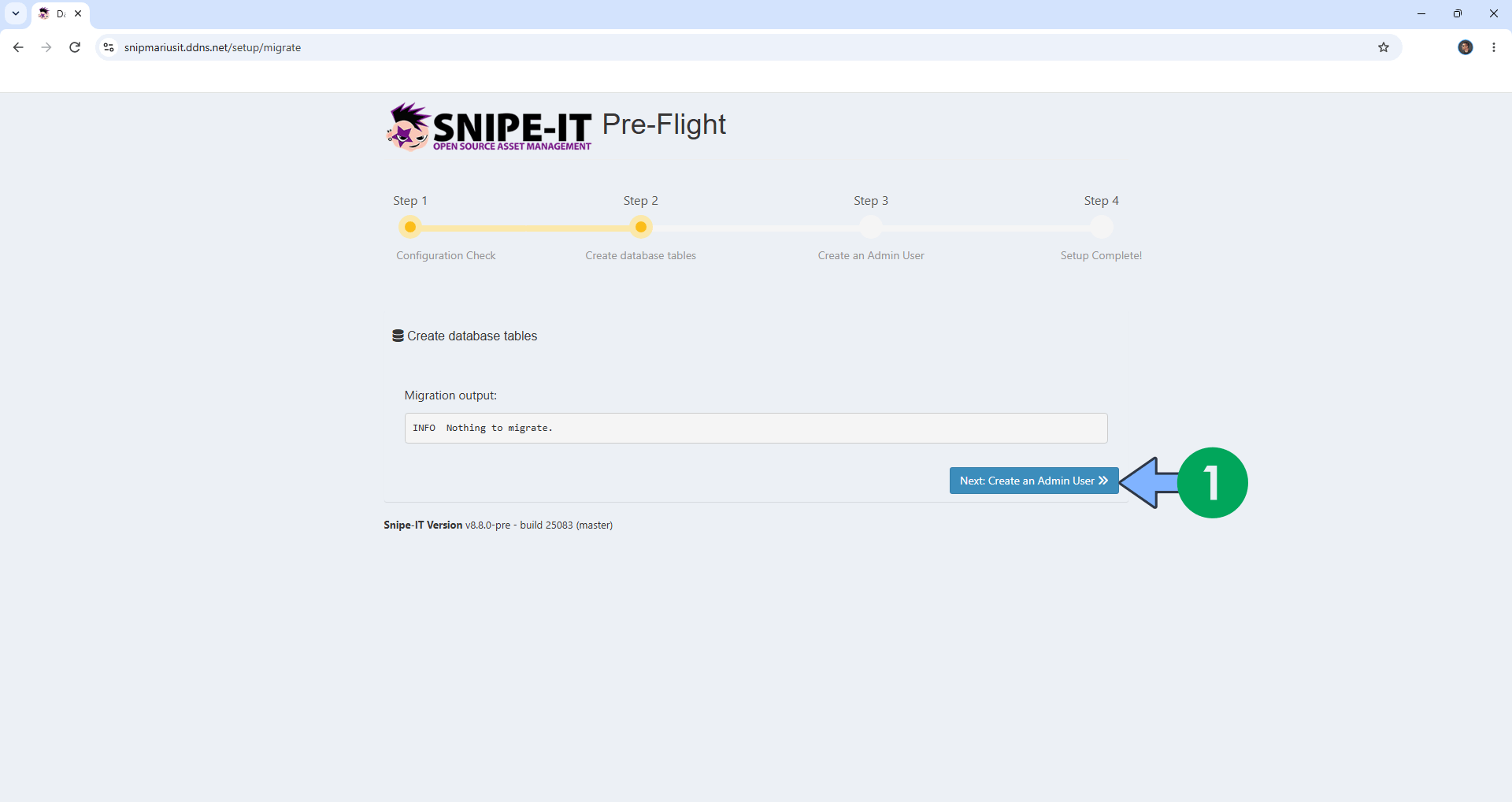

Click Next: Create an Admin User. Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 10

  • STEP 19

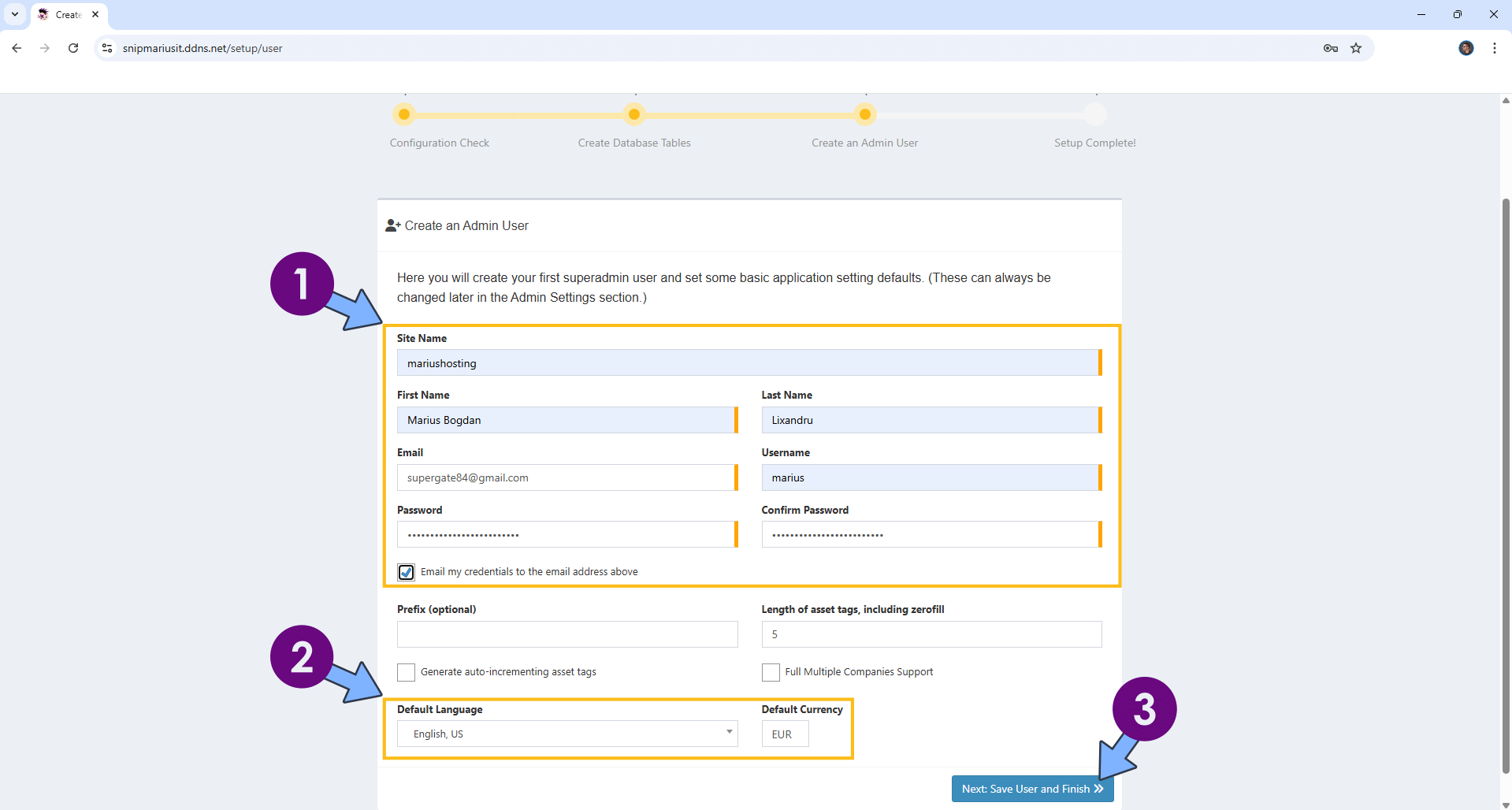

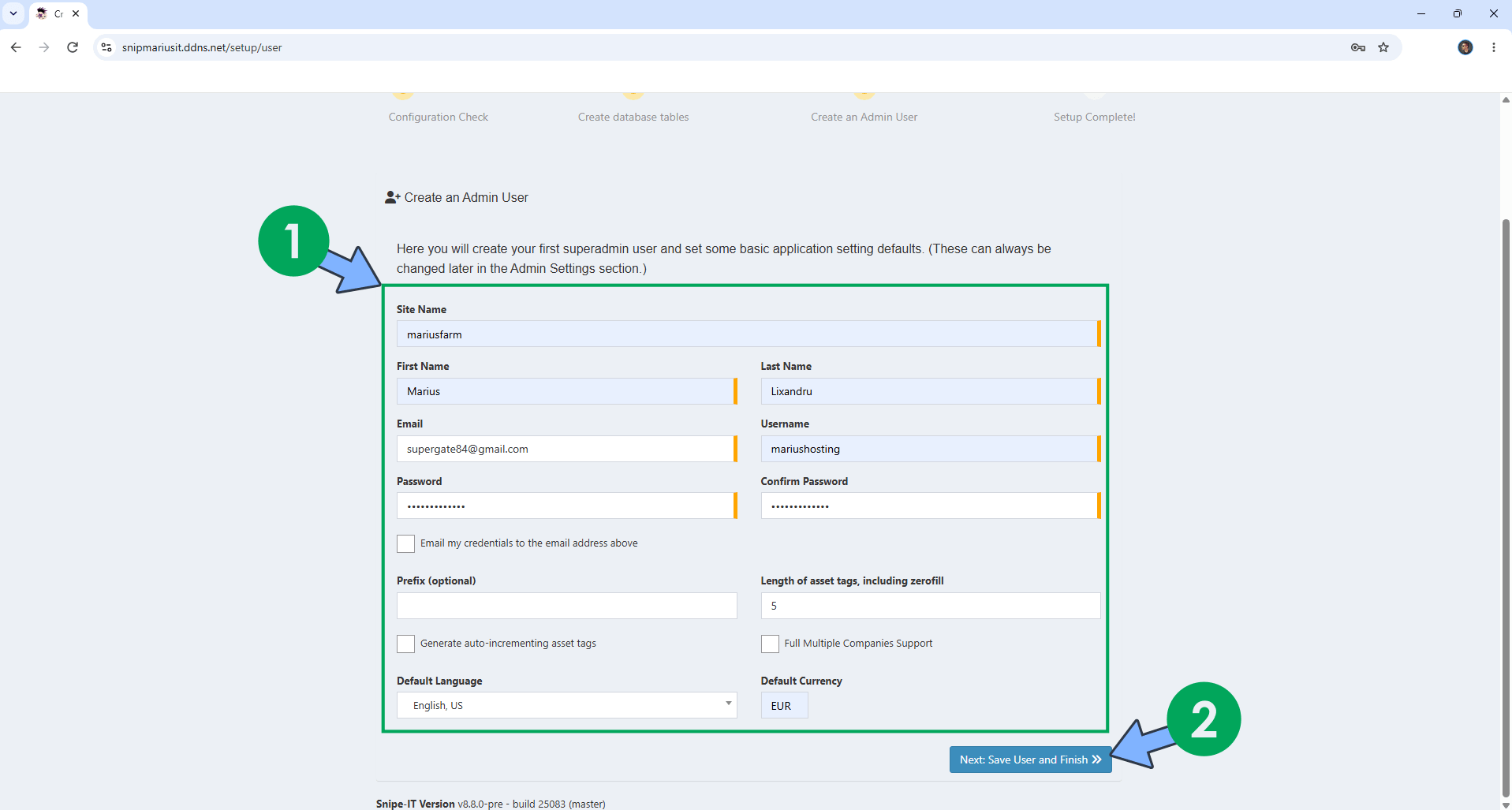

Create the new Admin user using your own credentials, then click Next: Save User and Finish. Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 11

  • STEP 20

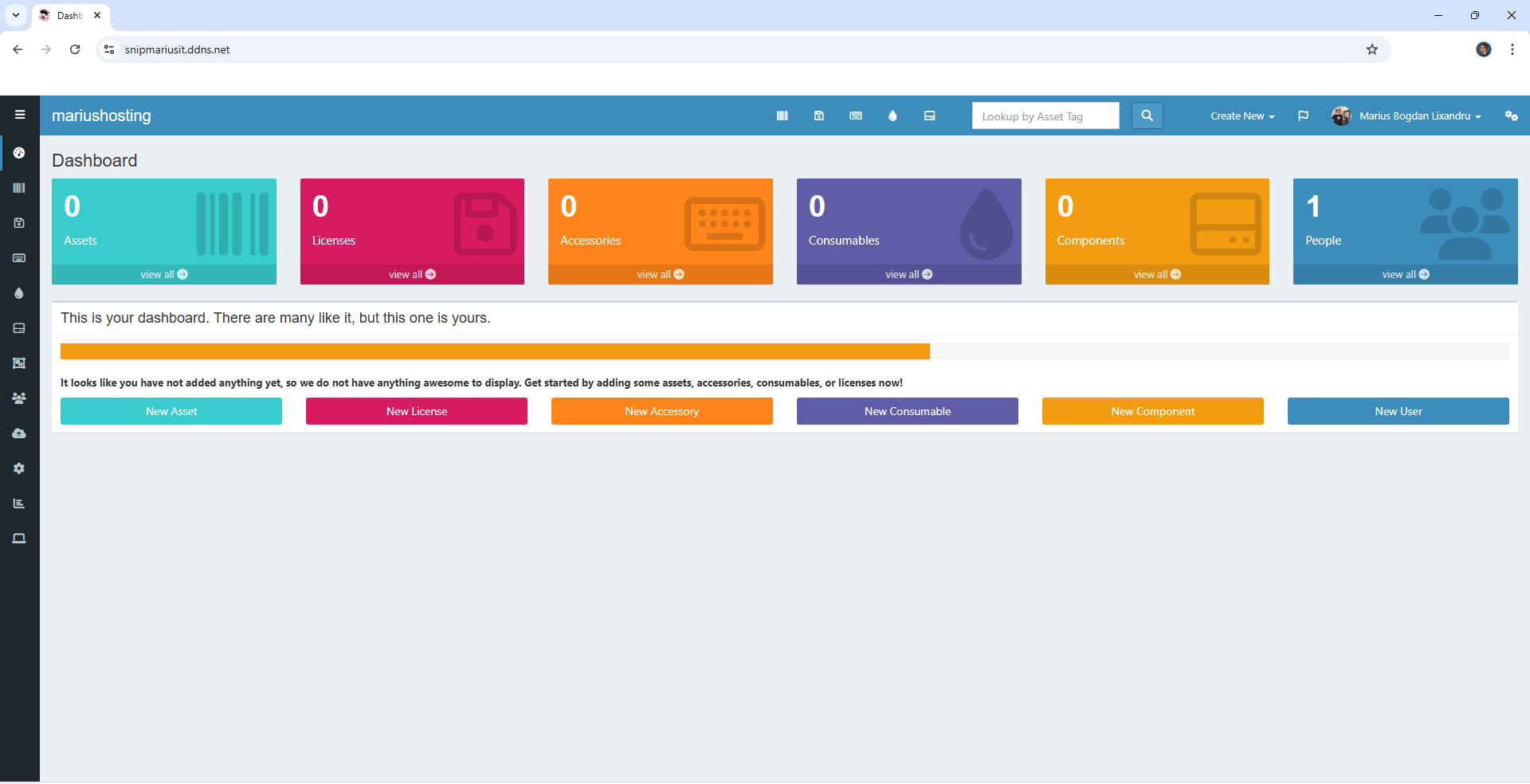

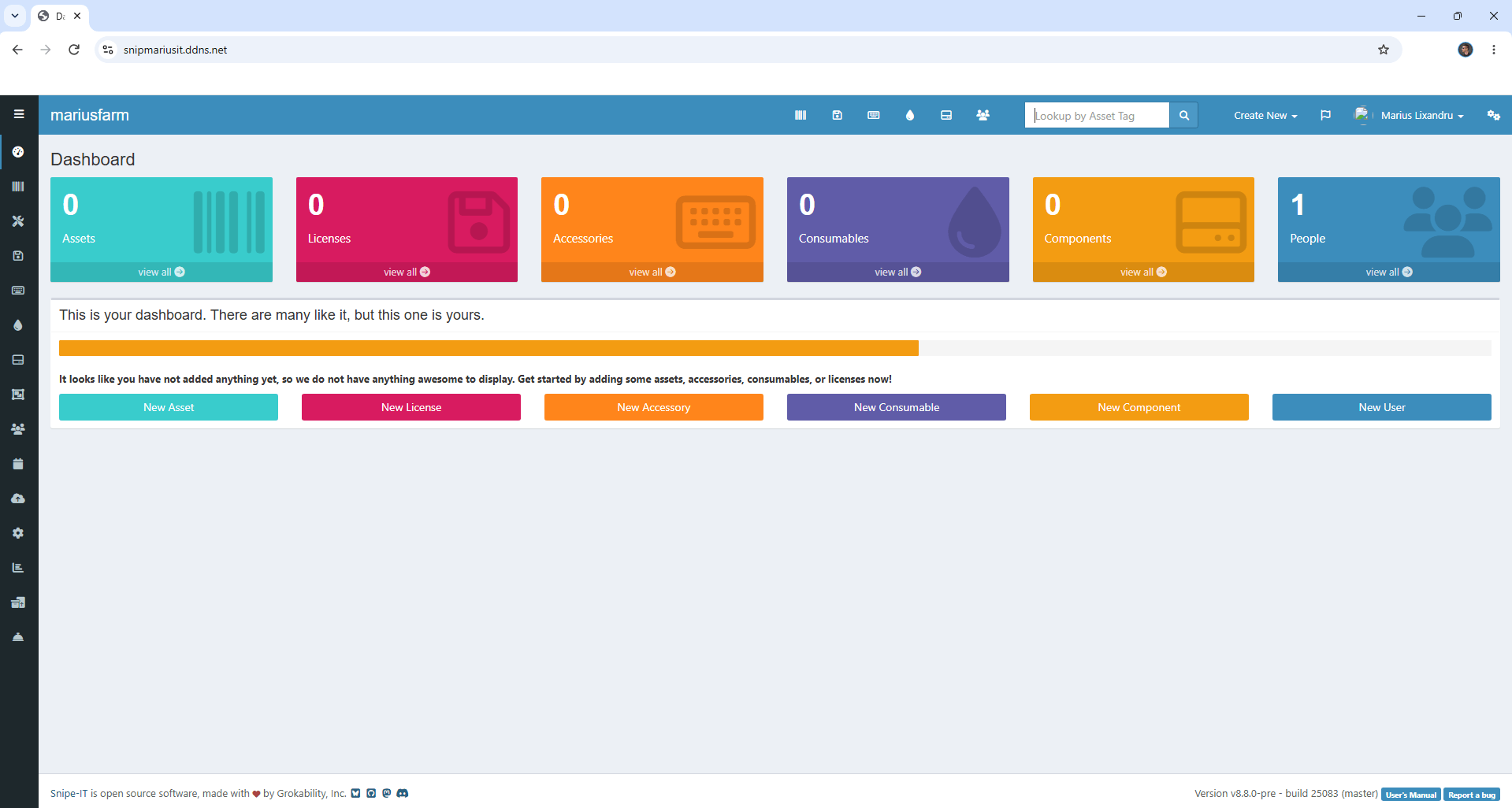

Your Snipe-IT Dashboard at a glance!

Snipe-IT UGREEN NAS Set up 12

Enjoy Snipe-IT on Your UGREEN NAS!

🆘TROUBLESHOOTING

🆙Note/Update/Container: How to Update Your Docker Containers on UGREEN NAS Using Portainer.
🐳Note: How to Create Docker Shortcuts on Desktop.
🆕Note: How to Update Portainer to the latest version.
🆕Note: How to Clean Docker.
