NocoDB is an open source #NoCode platform that turns any MySQL, PostgreSQL, SQL Server, SQLite & MariaDB into a smart-spreadsheet. NocoDB is so flexible that it can be integrated with many business verticals. NocoDB has been downloaded more than 6.6 million times in Docker within the first year of launch alone. NocoDB allows even non-developers or business users to become software creators. In this step by step guide I will show you how to install NocoDB on your UGREEN NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest NocoDB 0.265.1 release.

💡Note: Check out my guide on how to Install NocoDB on Your Synology NAS.

STEP 1

Please Support My work by Making a Donation.

STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your UGREEN NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

STEP 3

⚠️Mandatory: Enable HTTPS on your UGREEN NAS.

STEP 4

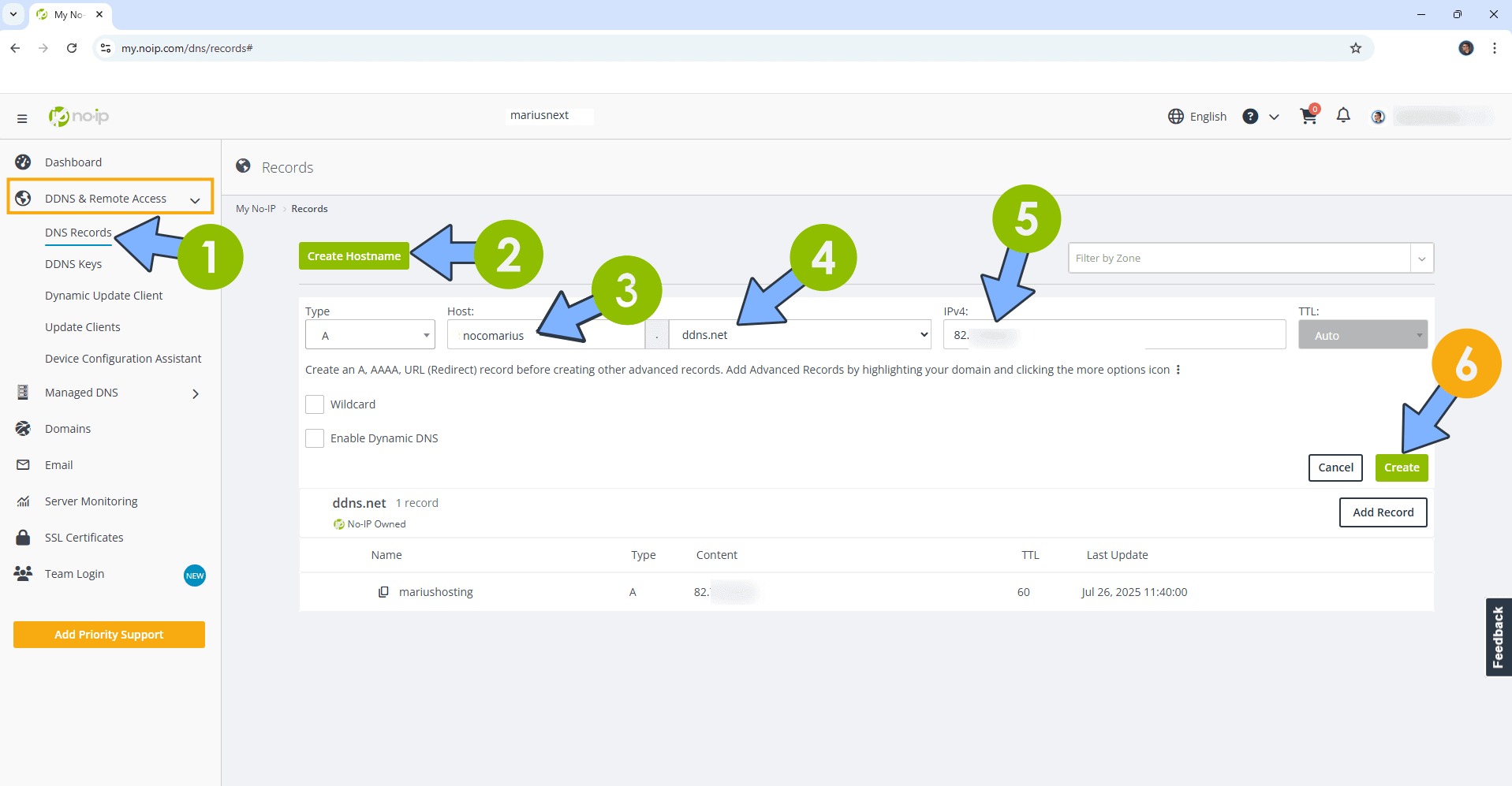

Create a new hostname on the noip website using your noip account. For example, I have created nocomarius as Host and I use the free ddns.net domain. In the IP Address area, type in your own IPV4 IP address from your ISP, then click Create. Follow the instructions in the image below.

STEP 5

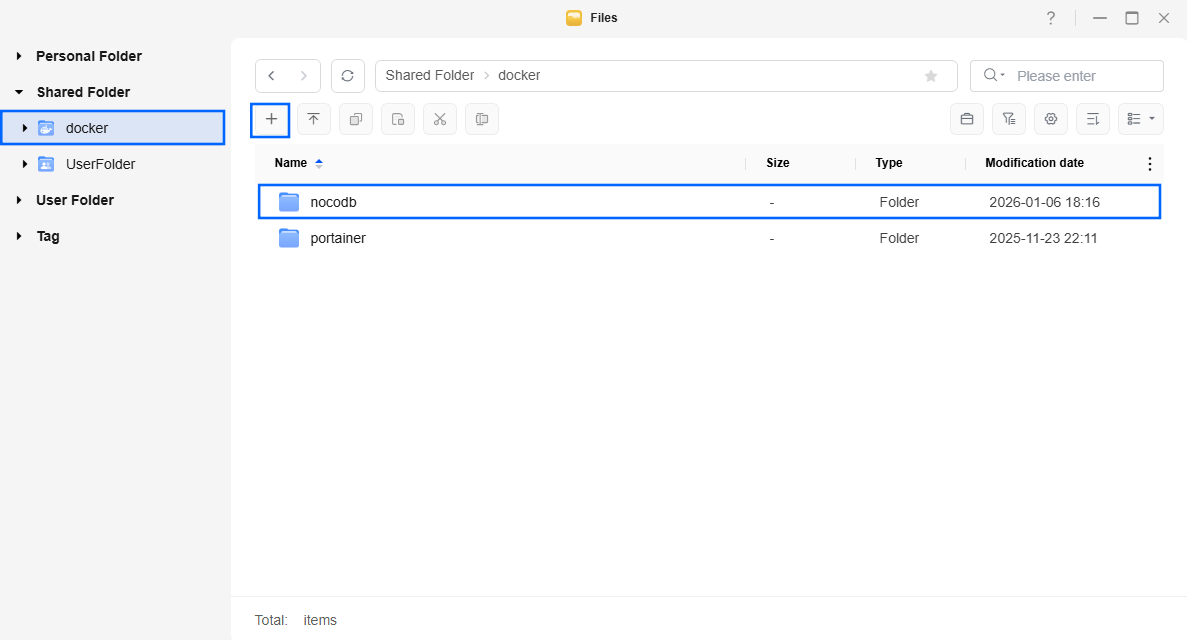

Go to Files and open the docker folder. Inside the docker folder, create one new folder and name it nocodb. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

STEP 6

Now create two new folders inside the nocodb folder that you have previosuly created at STEP 5 and name them config and db. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

STEP 7

Follow my step by step guide on how to activate SMTP for your Gmail account. This step is mandatory. Note: If you don’t want to use the easiest way for SMTP with Google and you already have SMTP details from your own Mail Server, you can just skip this STEP and use your personalized email SMTP details instead.

STEP 8

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Home then Live connect. Follow the instructions in the image below.

On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

STEP 9

In the Name field type in nocodb. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  db:
    image: postgres:18
    container_name: NocoDB-DATABASE
    hostname: noco-pg
    user: 999:10
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: ["CMD", "pg_isready", "-q", "-d", "nocodb", "-U", "nocodbuser"]
      timeout: 30s
      interval: 10s
      retries: 10
    volumes:
      - /volume1/docker/nocodb/db:/var/lib/postgresql:rw
    environment:
      POSTGRES_DB: nocodb
      POSTGRES_USER: nocodbuser
      POSTGRES_PASSWORD: nocodbpass
    restart: on-failure:5

  nocodb:
    image: nocodb/nocodb:latest
    container_name: NocoDB
    hostname: nocodb
    user: 999:10
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: timeout 10s bash -c ':> /dev/tcp/127.0.0.1/8080' || exit 1
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    ports:
      - 8631:8080
    volumes:
      - /volume1/docker/nocodb/data:/usr/app/data:rw
    environment:
      NC_ADMIN_EMAIL: Your-own-email-address
      NC_ADMIN_PASSWORD: Mariushosting@
      NC_DB: pg://noco-pg:5432?u=nocodbuser&p=nocodbpass&d=nocodb
      NC_SMTP_HOST: smtp.gmail.com
      NC_SMTP_FROM: Your-own-gmail-address
      NC_SMTP_PORT: 587
      NC_SMTP_USERNAME: Your-own-gmail-address
      NC_SMTP_PASSWORD: Your-own-app-password
      NC_AUTH_JWT_SECRET: dOxZYTTZgXKMHkqLBIQVImayQXAVWdzGBPuFJKggzcgvgPJPXpWzqzKaUOIOGGIr
      NC_PUBLIC_URL: https://nocomarius.ddns.net
      NC_DISABLE_TELE: true
    restart: on-failure:5
    depends_on:
      db:
        condition: service_healthy

Note: Before you paste the code above in the Web editor area below, change the value numbers for user with your own values. (Follow my step by step guide on how to do this.) 999 is my personal PUID value and 10 is my personal PGID value. You have to type in your own values.
Note: Before you paste the code above in the Web editor area below, change the value for NC_ADMIN_EMAIL and type in your own email address.
Note: Before you paste the code above in the Web editor area below, change the value for NC_ADMIN_PASSWORD and add your own password. Mariushosting@ is an example for a password. You have to insert your own password. Your password should have at least 8 letters with one uppercase, one number and one special letter (Allowed special characters $&+,:;=?@#|’.^*()%!_-” )
Note: Before you paste the code above in the Web editor area below, change the value for NC_SMTP_FROM and type in your own Gmail address. Refer to STEP 17.
Note: Before you paste the code above in the Web editor area below, change the value for NC_SMTP_USERNAME and type in your own Gmail address. Refer to STEP 17.
Note: Before you paste the code above in the Web editor area below, change the value for NC_SMTP_PASSWORD and type in your own Gmail app password. Refer to STEP 17.
Note: Before you paste the code above in the Web editor area below, change the value for NC_AUTH_JWT_SECRET. (Generate your own Random 64 length NC_AUTH_JWT_SECRET.)
Note: Before you paste the code above in the Web editor area below, change the value for NC_PUBLIC_URL and type in your own NO IP DDNS with https:// at the beginning that you have previously created at STEP 4.

STEP 10

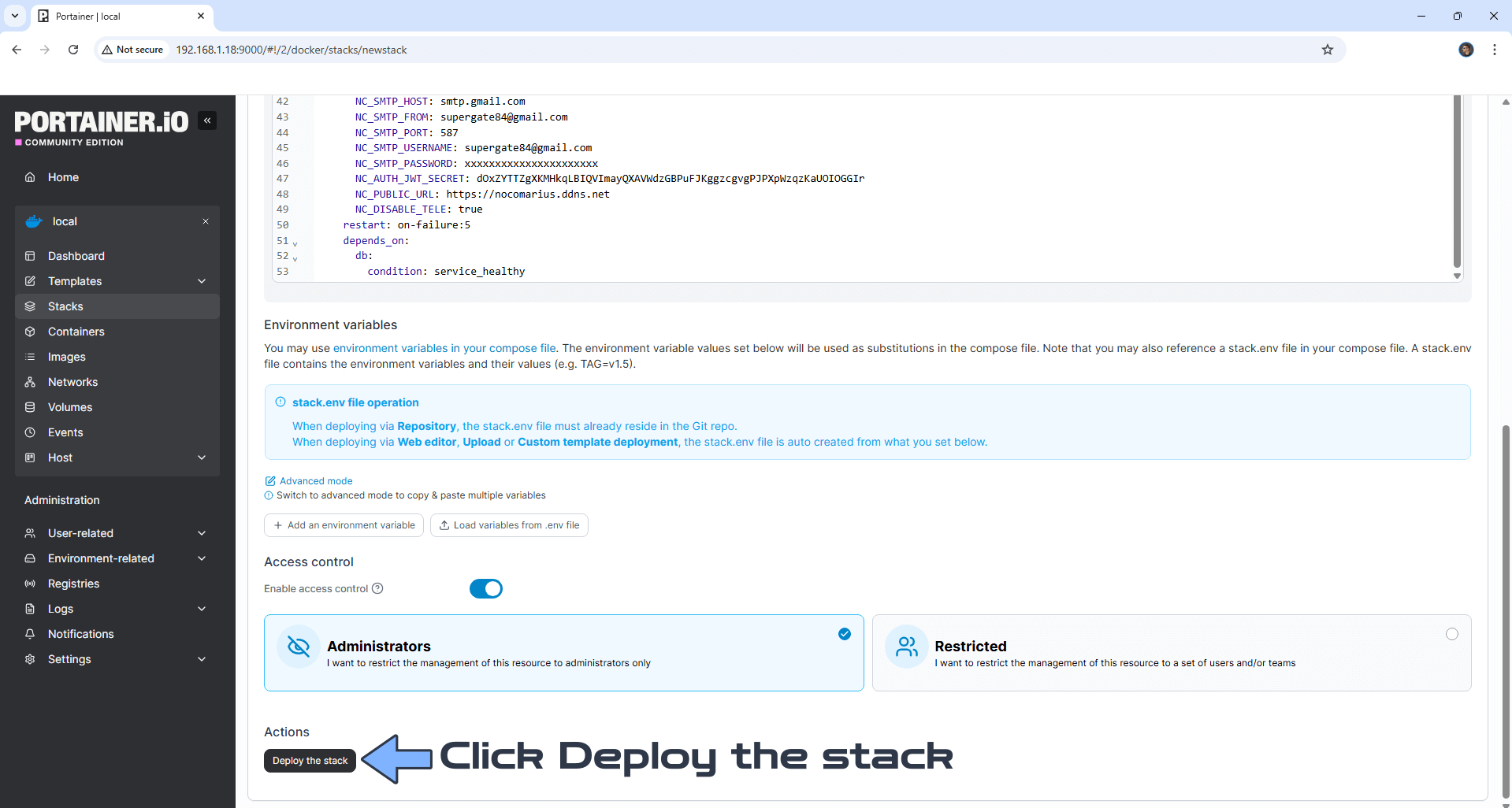

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

STEP 11

If everything goes right, you will see this message at the top right of your screen: “Success Stack successfully deployed“.

STEP 12

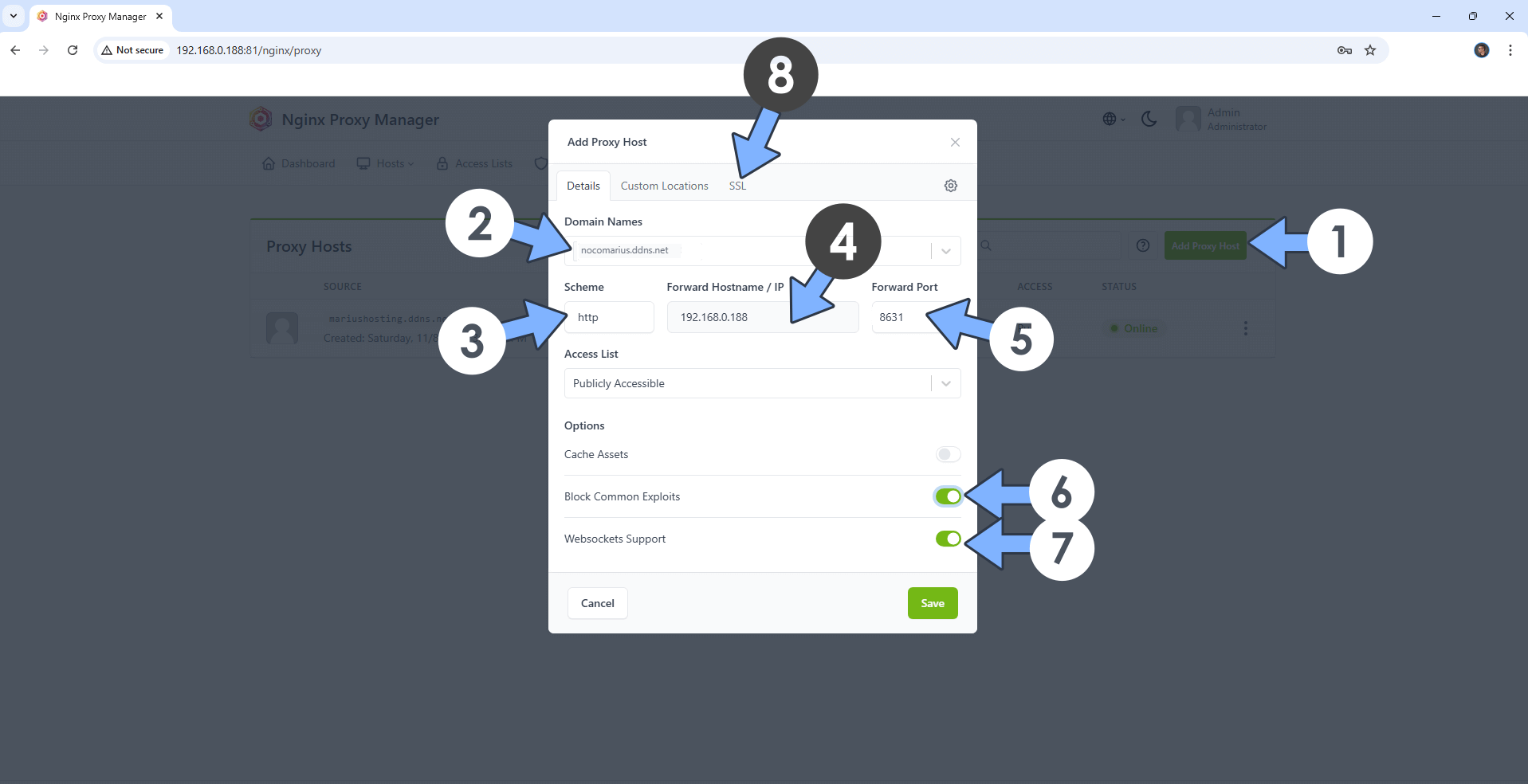

Open your Nginx Proxy Manager container that you have previously installed at STEP 3. Click Add Proxy Host. A new pop up window will open. Add the following details:

Domain Names: Type in your own noip domain name that you have previously created at STEP 4.
Scheme: http
Forward Hostname/IP: Type in the local NAS IP of your UGREEN NAS.
Forward Port: Type in the NocoDB local Port that is 8631
Check Block Common Exploits
Check Websockets Support
Click the SSL tab. Follow the instructions in the image below.

STEP 13

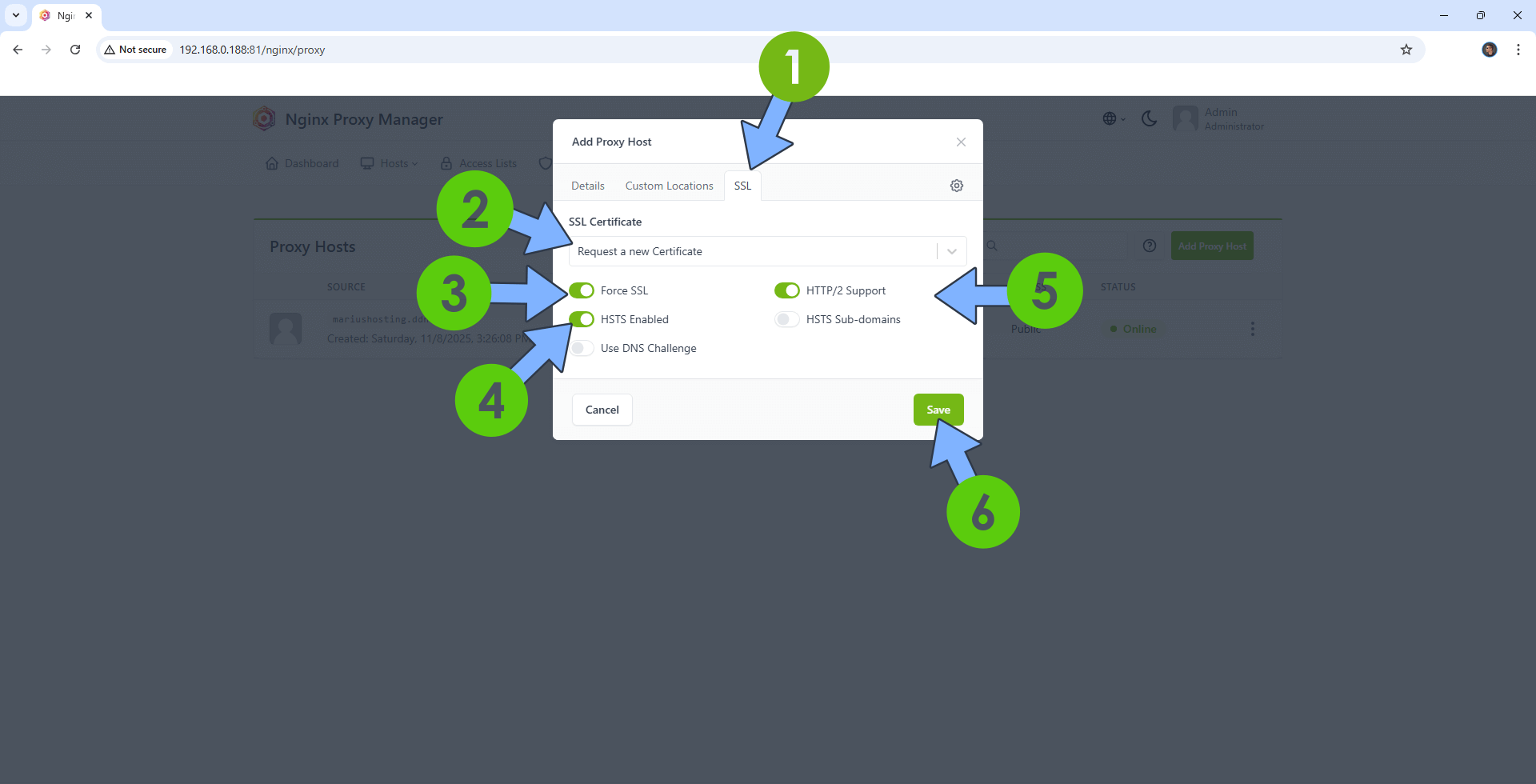

After you click the SSL tab, add the following details:

SSL Certificate: Request a new SSL Certificate
Check: Force SSL
Check: HSTS Enabled
Check: HTTP/2 Support
Click Save. Follow the instructions in the image below.

STEP 14

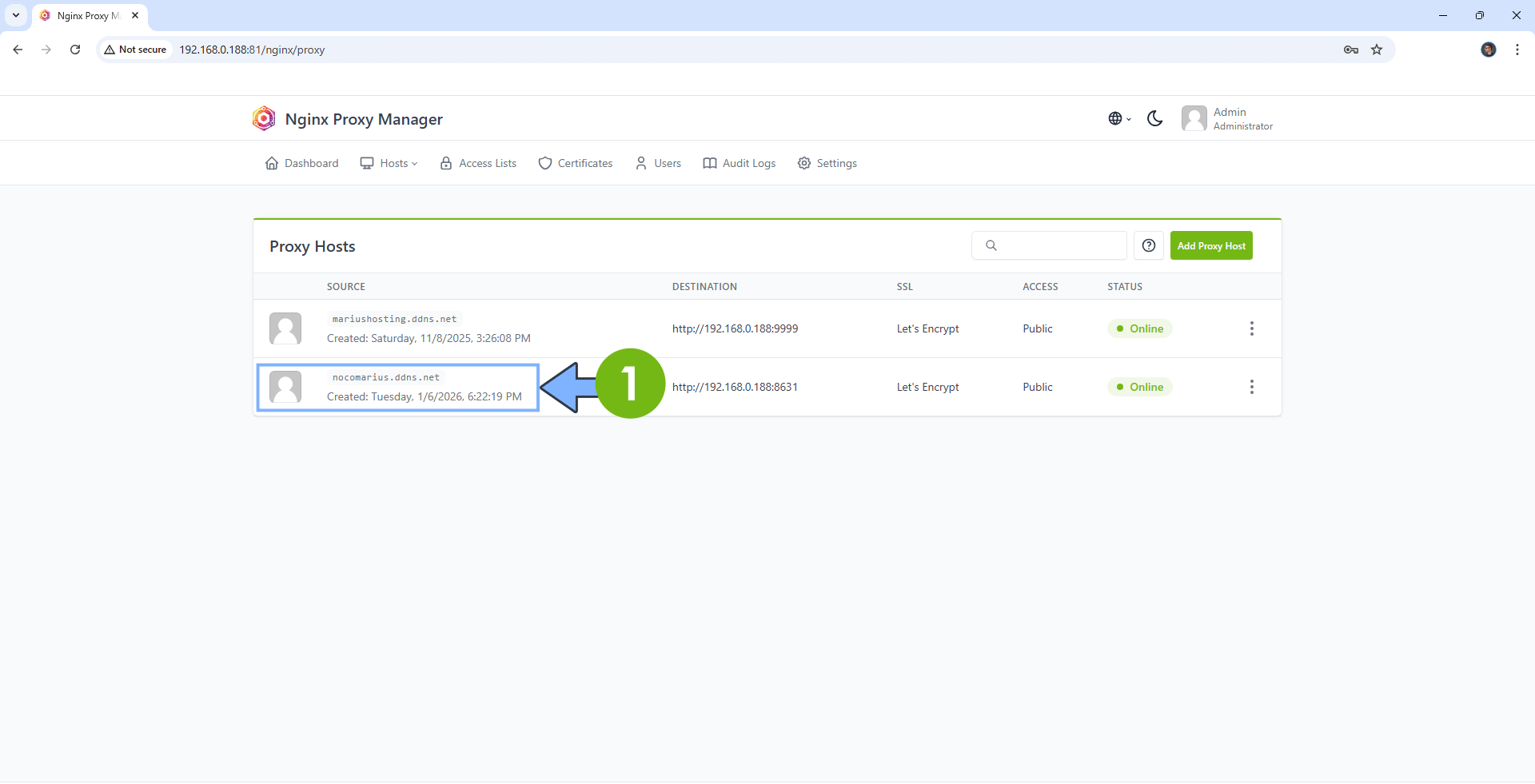

In the Proxy Hosts area, if everything goes right, you will see that your NocoDB hostname has been generated. Click on it. Follow the instructions in the image below.

STEP 15

🟢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guides forget to support my work, or just ignore STEP 1. I’ve been very honest about this aspect of my work since the beginning: I don’t run any ADS, I don’t require subscriptions, paid or otherwise, I don’t collect IPs, emails, and I don’t have any referral links from Amazon or other merchants. I also don’t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. It’s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

STEP 16

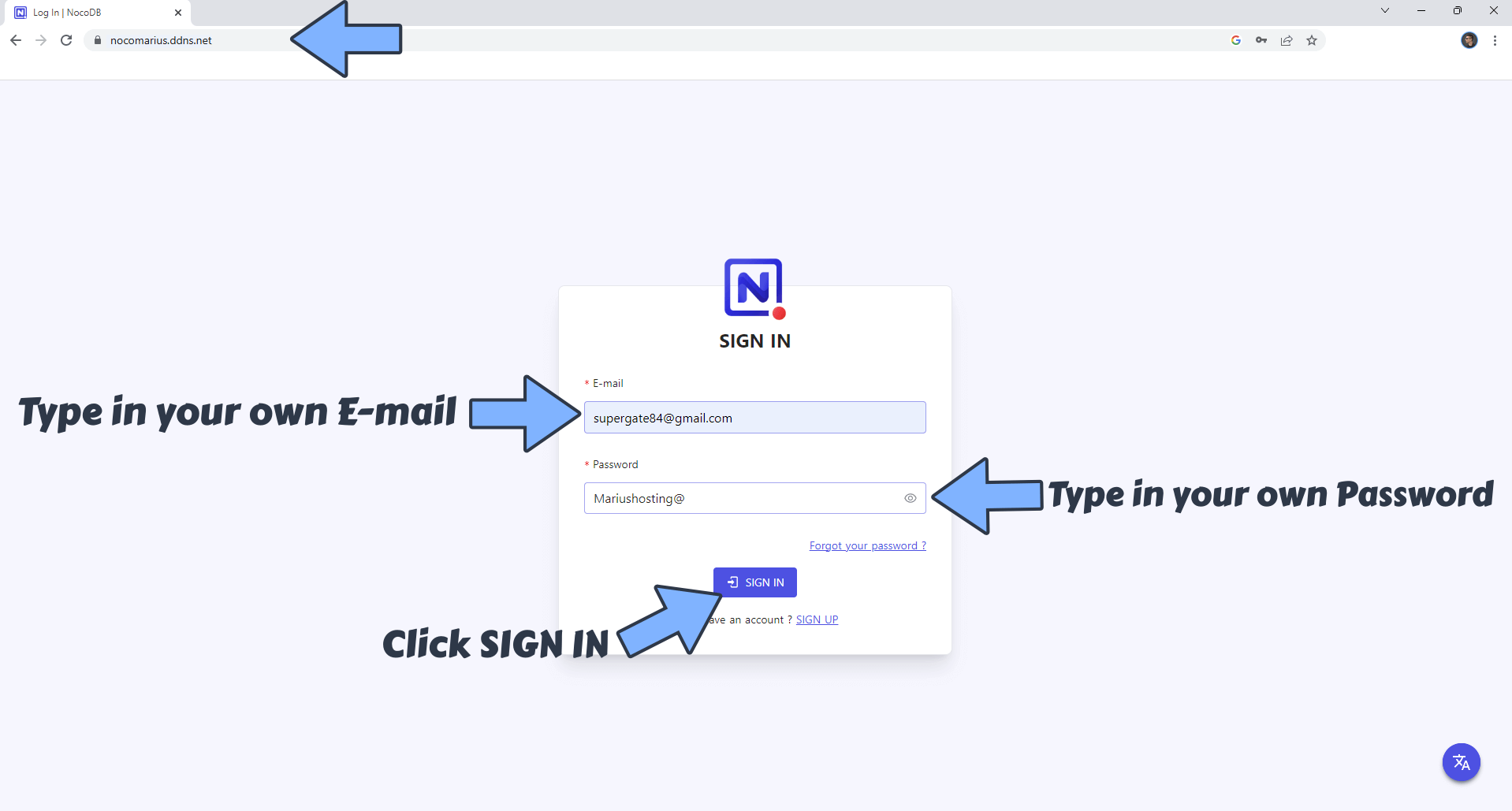

Now open your browser and type in your HTTPS/SSL certificate like this https://nocodb.ddns.net In my case it’s https://nocomarius.ddns.net If everything goes right, you will see the NocoDB SIGN IN page. Type in your own E-mail (NC_ADMIN_EMAIL) and your own Password (NC_ADMIN_PASSWORD) that you have previously added at STEP 9 then click SIGN IN. Follow the instructions in the image below.

STEP 17

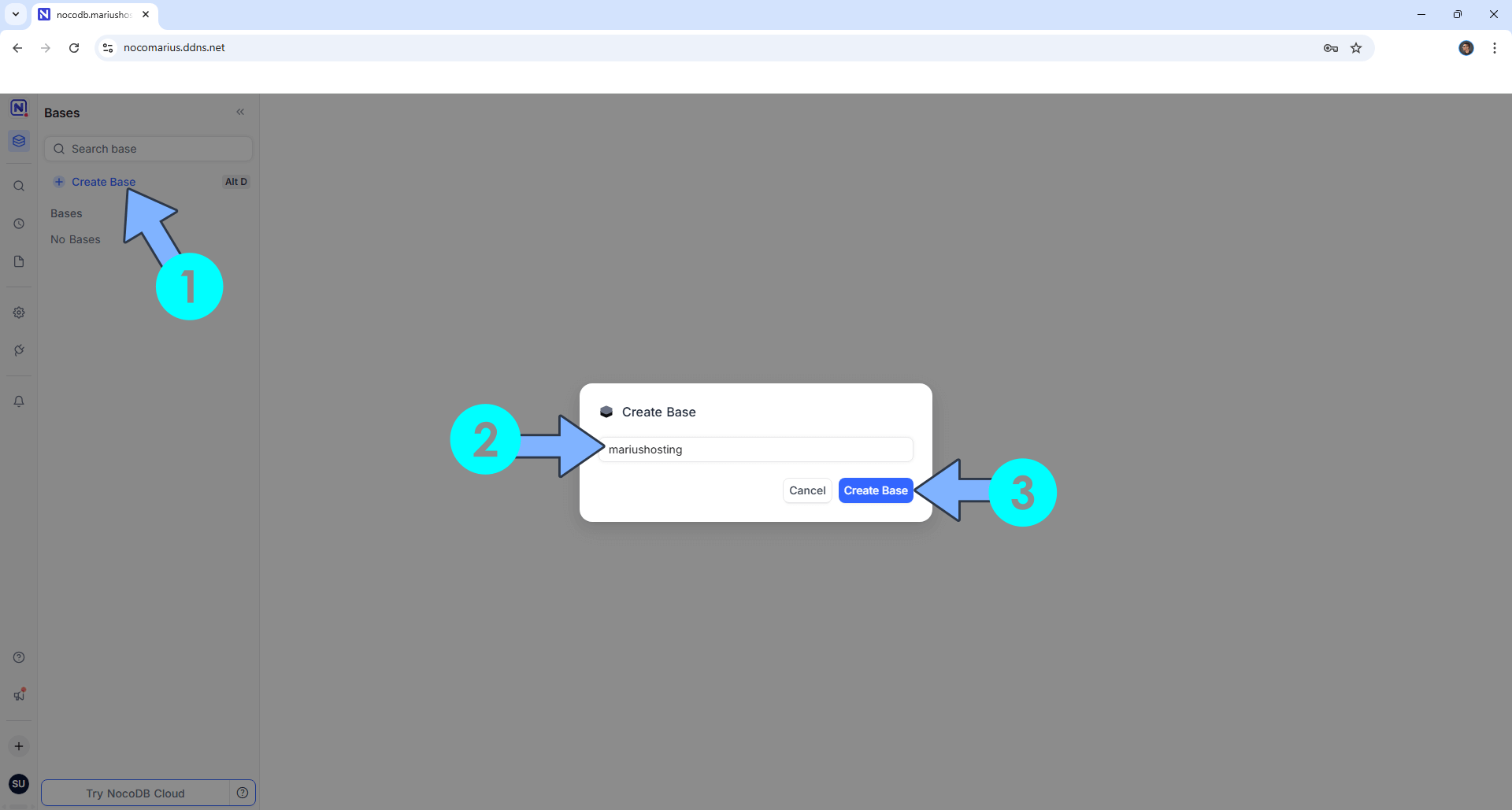

Now you can create your New Base! On the left sidebar, click + Create Base. Type in your own Base name, then click Create Base. Follow the instructions in the image below.

STEP 18

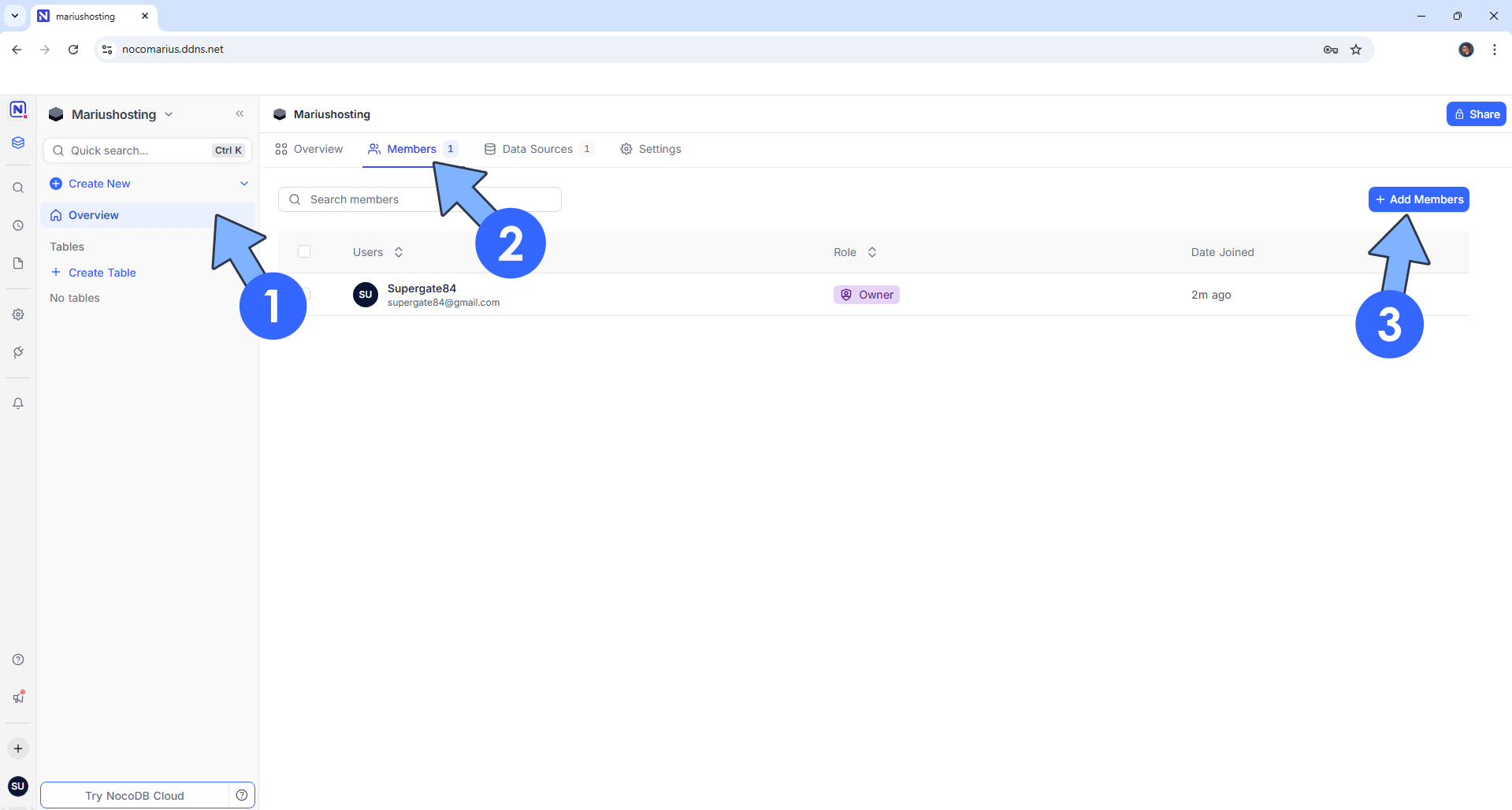

On the left sidebar, click Overview to check your Base that you have previously created at STEP 17. Click the Members tab, then + Add Members. Follow the instructions in the image below.

STEP 19

Type in the email of the user you want to invite. Select the User Role, then click Invite to Base. Follow the instructions in the image below.

STEP 20

The user will receive an email. If they click Accept Base Invite, they can join your team.

Enjoy NocoDB on Your UGREEN NAS!

🆘TROUBLESHOOTING

🆙Note/Update/Container: How to Update Your Docker Containers on UGREEN NAS Using Portainer.
🐳Note: How to Create Docker Shortcuts on Desktop.
🆕Note: How to Update Portainer to the latest version.
🆕Note: How to Clean Docker.
