BookOrbit is a self-hosted, open-source library and reading platform for ebooks, audiobooks, and comics. It offers built-in multi-format readers, automated metadata management, Kobo and KOReader sync, multi-user support with SSO, private OPDS catalogs, and rich reading analytics, all with simple Docker deployment and no subscription. In this step by step guide I will show you how to install BookOrbit on your UGREEN NAS using Docker & Dockhand.

💡Note: This guide works perfectly with the latest BookOrbit v2.3.0 release.

💡Note: Check out my guide on how to Install BookOrbit on Your Synology NAS.

STEP 1

Please Support My work by Making a Donation.

STEP 2

Install Dockhand using my step by step guide. If you already have Dockhand installed on your UGREEN NAS, skip this STEP. Attention: Make sure you have installed the latest Dockhand version.

STEP 3

⚠️Mandatory: Enable HTTPS on your UGREEN NAS.

STEP 4

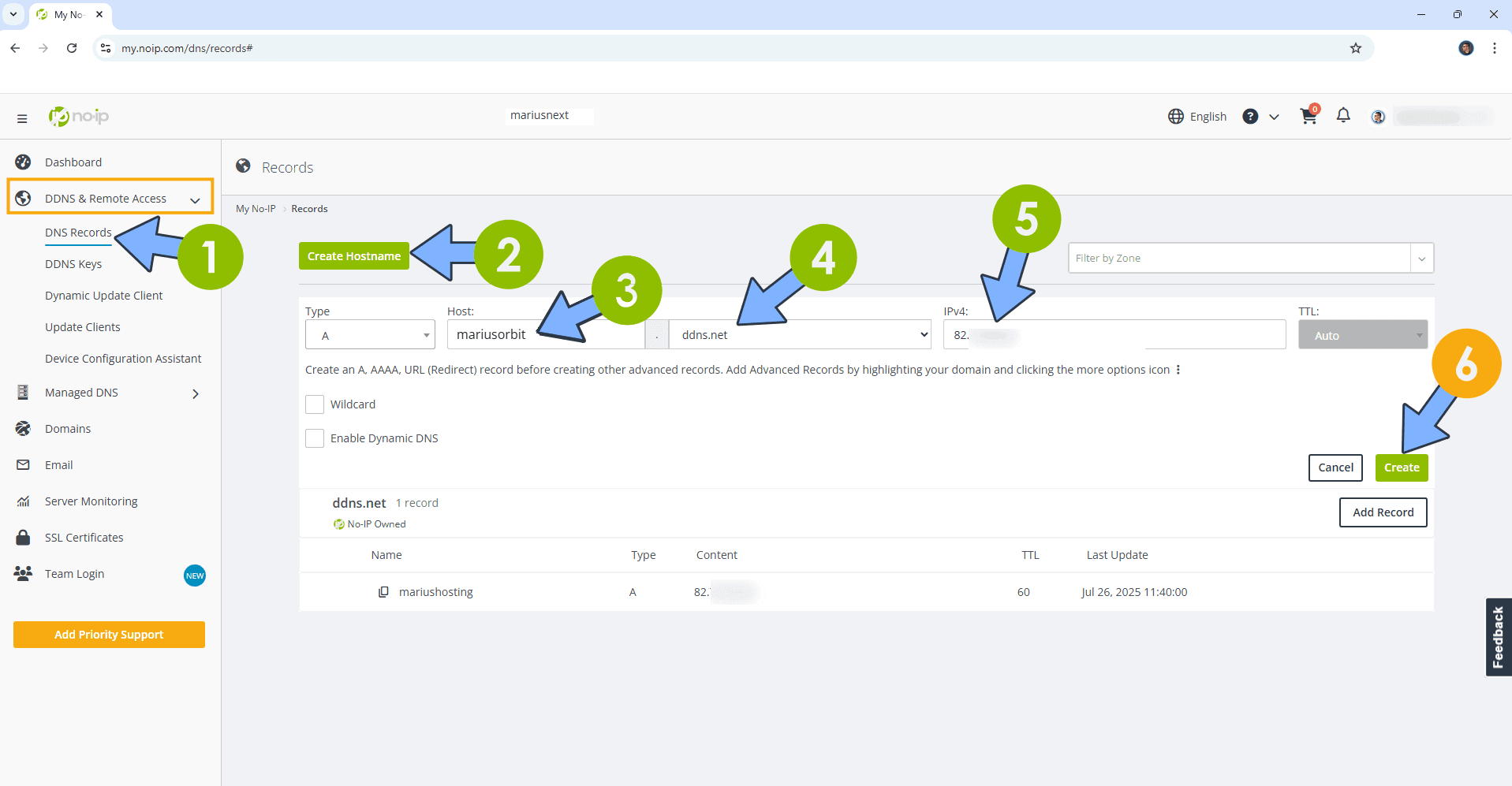

Create a new hostname on the noip website using your noip account. For example, I have created mariusorbit as Host and I use the free ddns.net domain. In the IP Address area, type in your own IPV4 IP address from your ISP, then click Create. Follow the instructions in the image below.

STEP 5

⚠️Mandatory: Add Read & Write Permissions to the Docker Folder.

STEP 6

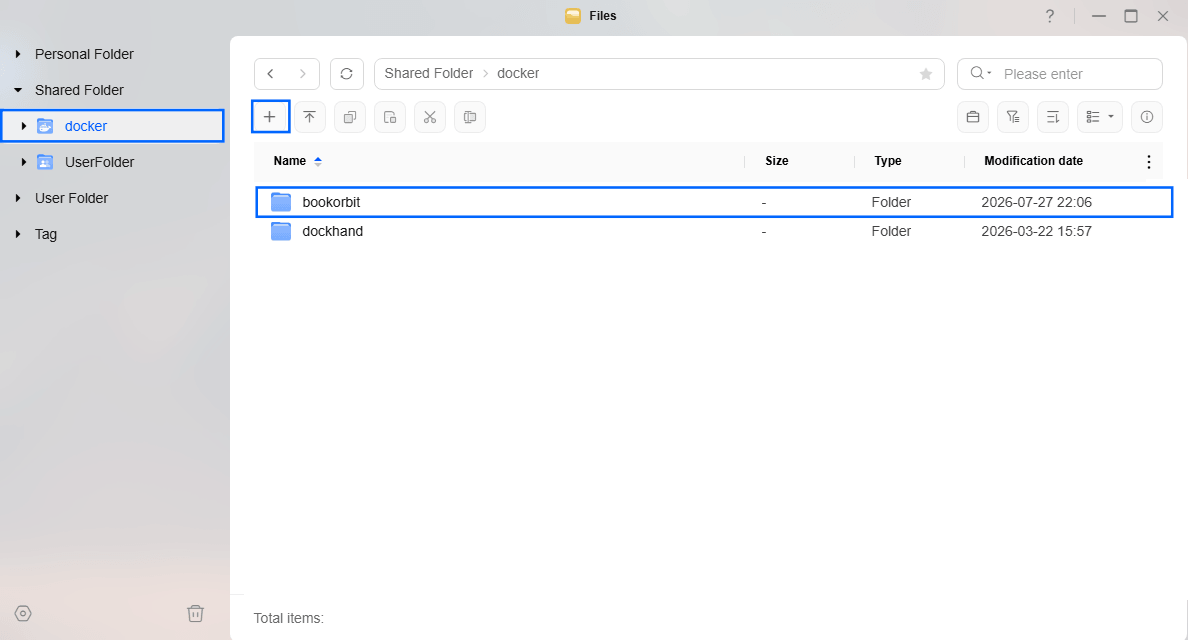

Go to Files and open the docker folder. Inside the docker folder, create one new folder and name it bookorbit. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

STEP 7

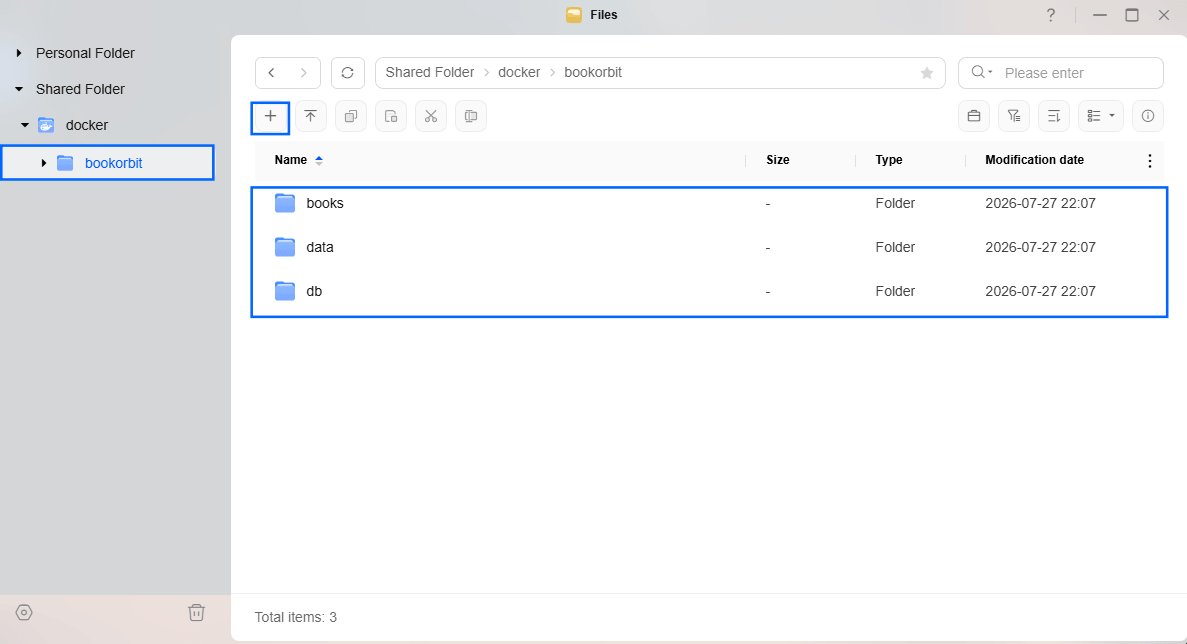

Now create three new folders inside the bookorbit folder that you have previously created at STEP 6 and name them books, data, db. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

STEP 8

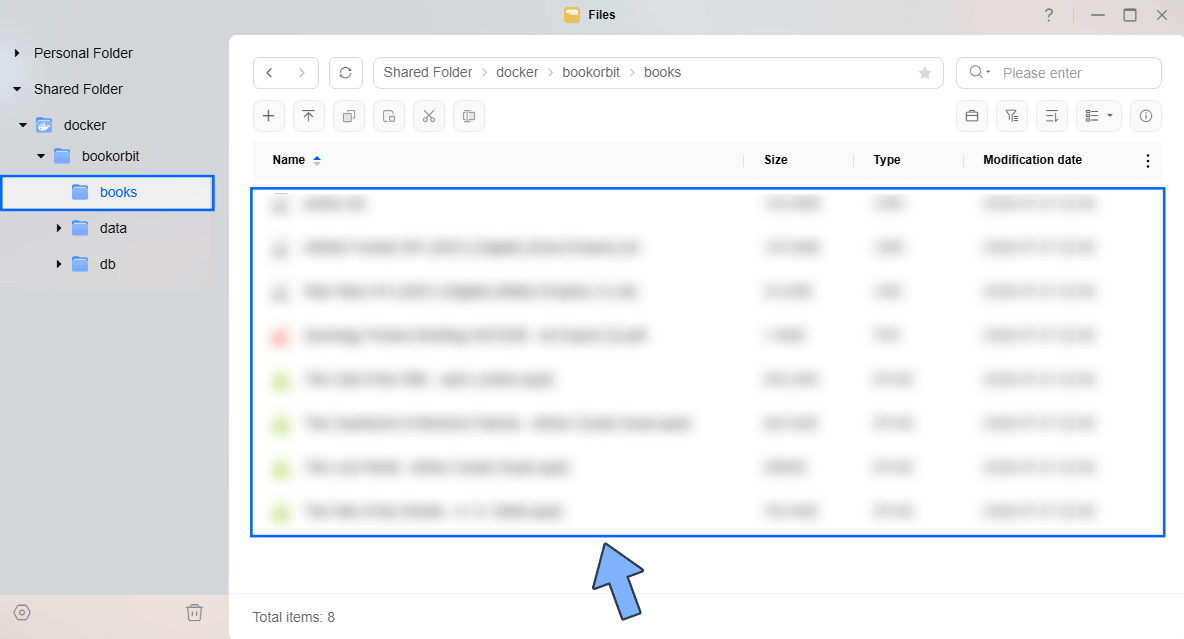

Populate your books folder that you have previously created at STEP 7 with your books. Follow the instructions in the image below.

STEP 9

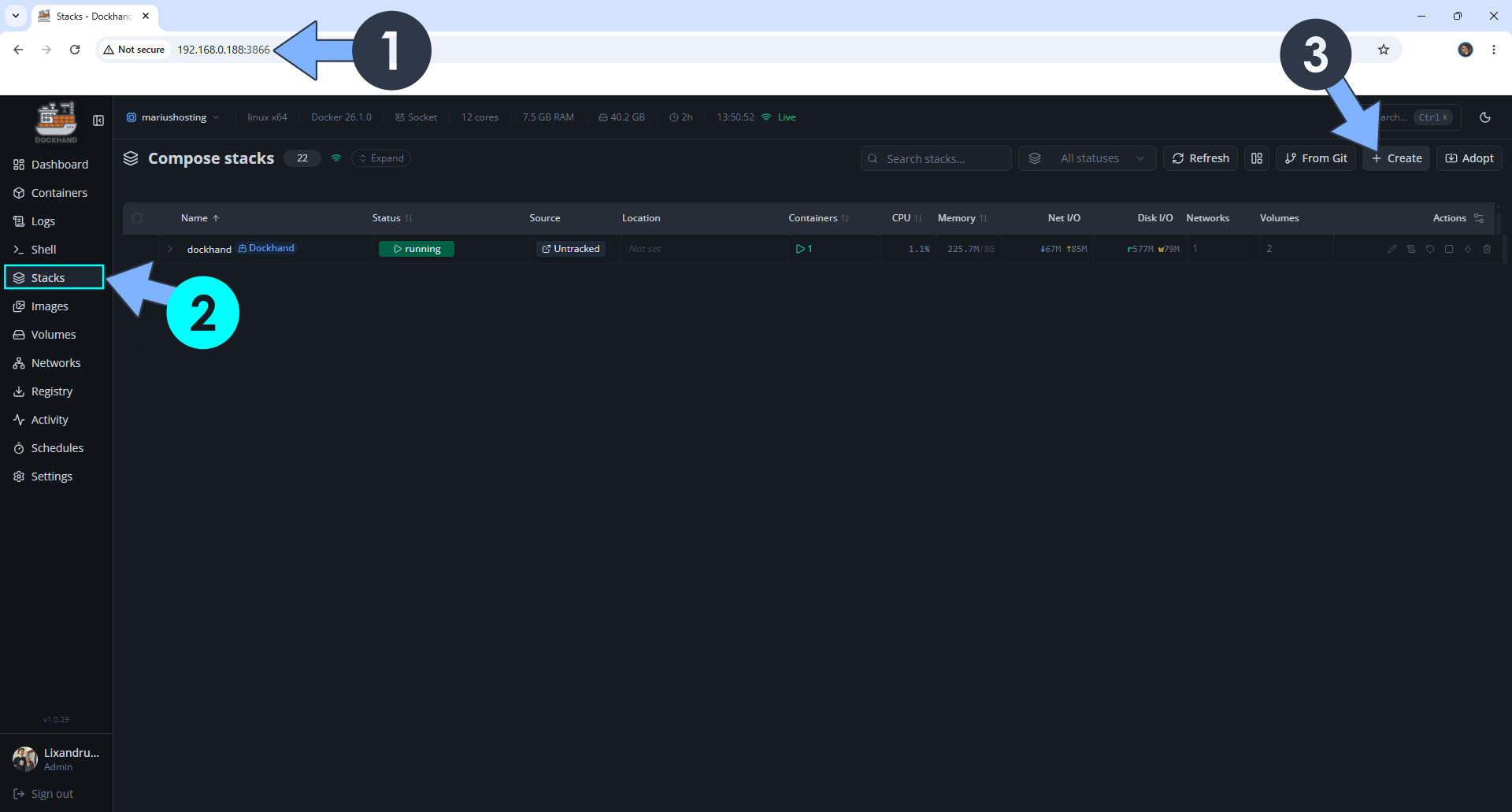

Open your browser and type in http://ugreen-ip-address:3866 to connect to your Dockhand container. On the left sidebar, click Stacks then + Create. Follow the instructions in the image below.

STEP 10

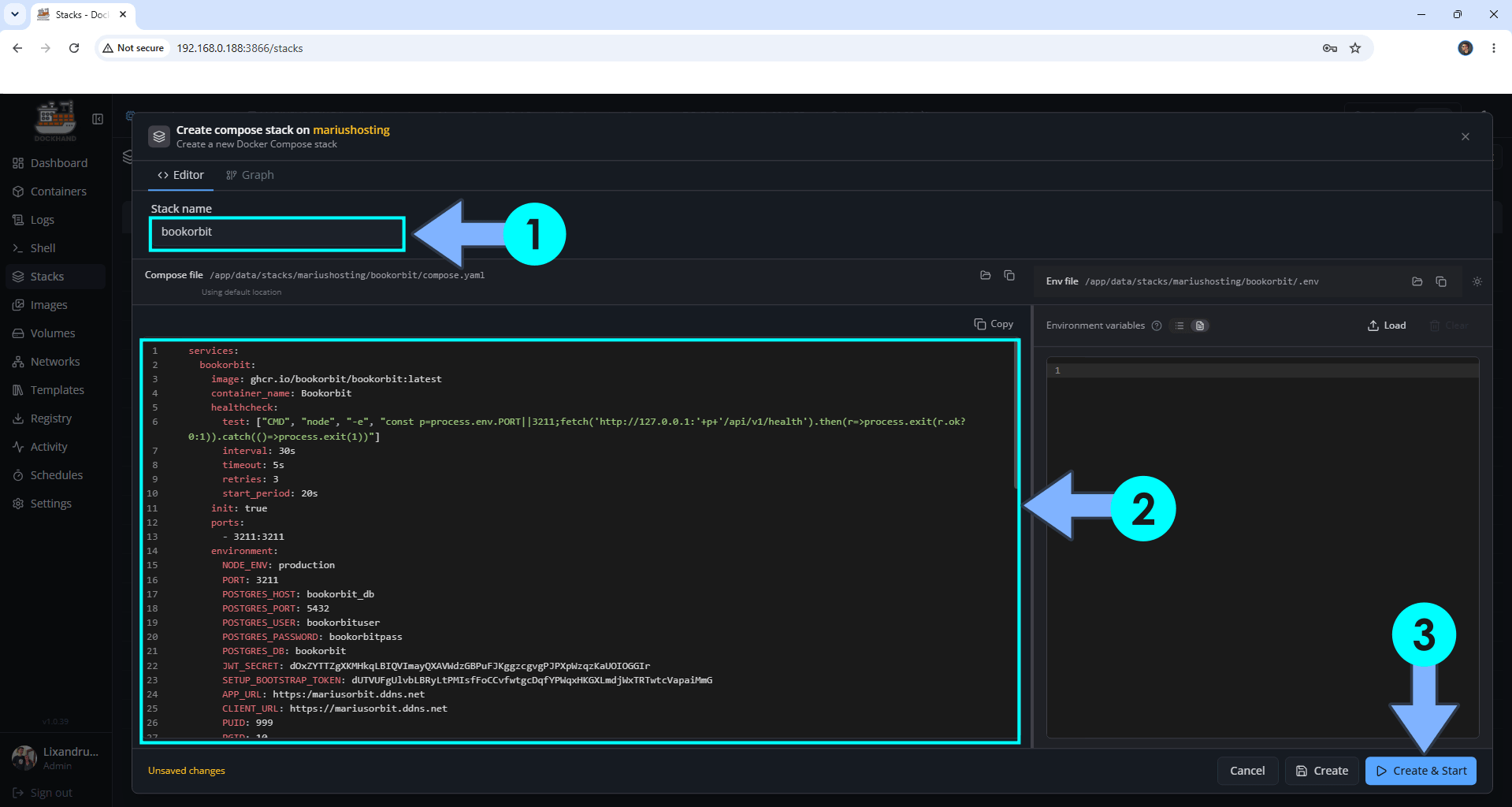

In the Stack name field, type in bookorbit. ⚠️Warning: Type in the name in lowercase letters. The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Follow the instructions in the image below.

Note: Copy Paste the code below in the Dockhand Compose Stack then click Create & Start.

services:
  bookorbit:
    image: ghcr.io/bookorbit/bookorbit:latest
    container_name: Bookorbit
    healthcheck:
      test: ["CMD", "node", "-e", "const p=process.env.PORT||3211;fetch('http://127.0.0.1:'+p+'/api/v1/health').then(r=>process.exit(r.ok?0:1)).catch(()=>process.exit(1))"]
      interval: 30s
      timeout: 5s
      retries: 3
      start_period: 20s
    init: true
    ports:
      - 3211:3211
    environment:
      NODE_ENV: production
      PORT: 3211
      POSTGRES_HOST: bookorbit_db
      POSTGRES_PORT: 5432
      POSTGRES_USER: bookorbituser
      POSTGRES_PASSWORD: bookorbitpass
      POSTGRES_DB: bookorbit
      JWT_SECRET: dOxZYTTZgXKMHkqLBIQVImayQXAVWdzGBPuFJKggzcgvgPJPXpWzqzKaUOIOGGIr
      SETUP_BOOTSTRAP_TOKEN: dUTVUFgUlvbLBRyLtPMIsfFoCCvfwtgcDqfYPWqxHKGXLmdjWxTRTwtcVapaiMmG
      APP_URL: https:/mariusorbit.ddns.net
      CLIENT_URL: https://mariusorbit.ddns.net
      PUID: 999
      PGID: 10
      LIBRARY_BROWSE_ROOT: /books
      NODE_MAX_OLD_SPACE_SIZE: 2048
      BOOKORBIT_FIX_PERMISSIONS: true
      LOG_LEVEL: info
    volumes:
      - /volume1/docker/bookorbit/books:/books:rw
      - /volume1/docker/bookorbit/data:/data:rw
    read_only: true
    tmpfs:
      - /tmp
    cap_drop:
      - ALL
    cap_add:
      - CHOWN
      - DAC_OVERRIDE
      - FOWNER
      - SETGID
      - SETUID
    security_opt:
      - no-new-privileges:true
    stop_grace_period: 30s
    depends_on:
      db:
        condition: service_healthy
    restart: on-failure:5

  db:
    image: pgvector/pgvector:pg18
    container_name: Bookorbit-DB
    hostname: bookorbit_db
    healthcheck:
      test: ["CMD-SHELL", 'pg_isready -U "bookorbituser" -d "bookorbit"']
      interval: 10s
      timeout: 5s
      retries: 10
      start_period: 20s
    environment:
      POSTGRES_USER: bookorbituser
      POSTGRES_PASSWORD: bookorbitpass
      POSTGRES_DB: bookorbit
      PGDATA: /var/lib/postgresql/
    volumes:
      - /volume1/docker/bookorbit/db:/var/lib/postgresql:rw
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value for JWT_SECRET. (Generate your own Random 64 length JWT_SECRET.)
Note: Before you paste the code above in the Web editor area below, change the value for SETUP_BOOTSTRAP_TOKEN. (Generate your own Random 64 length SETUP_BOOTSTRAP_TOKEN.) ⚠️Note: You will need this Token later at STEP 15.
Note: Before you paste the code above in the Web editor area below, change the value for APP_URL and type in your own NO IP DDNS with https:// at the beginning that you have previously created at STEP 4.
Note: Before you paste the code above in the Web editor area below, change the value for CLIENT_URL and type in your own NO IP DDNS with https:// at the beginning that you have previously created at STEP 4.
Note: Before you paste the code above in the Web editor area below, change the value numbers for PUID and PGID with your own values. (Follow my step by step guide on how to do this.)

STEP 11

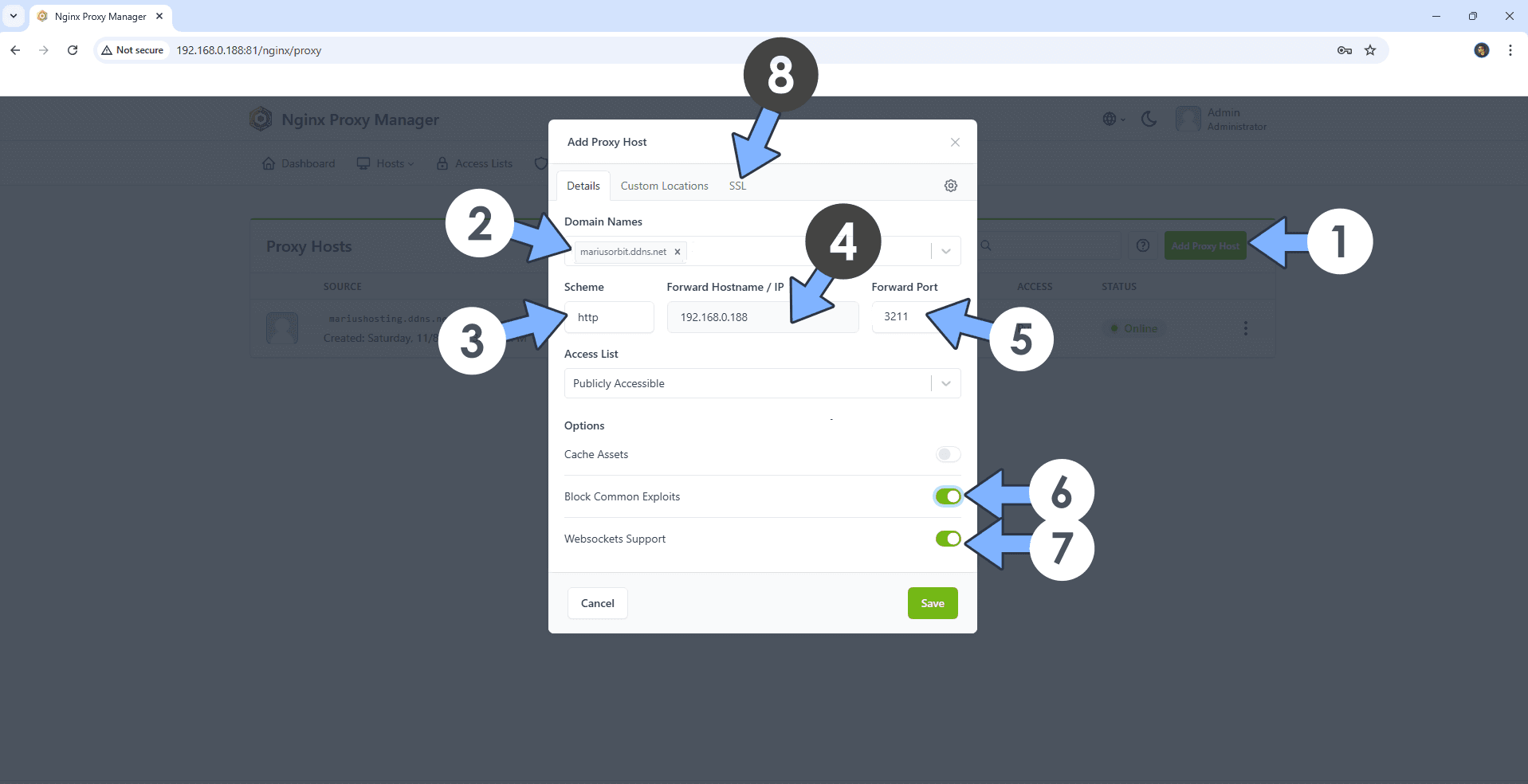

Open your Nginx Proxy Manager container that you have previously installed at STEP 3. Click Add Proxy Host. A new pop up window will open. Add the following details:

Domain Names: Type in your own noip domain name that you have previously created at STEP 4.
Scheme: http
Forward Hostname/IP: Type in the local NAS IP of your UGREEN NAS.
Forward Port: Type in the BookOrbit local Port that is 5485
Check Block Common Exploits
Check Websockets Support
Click the SSL tab. Follow the instructions in the image below.

STEP 12

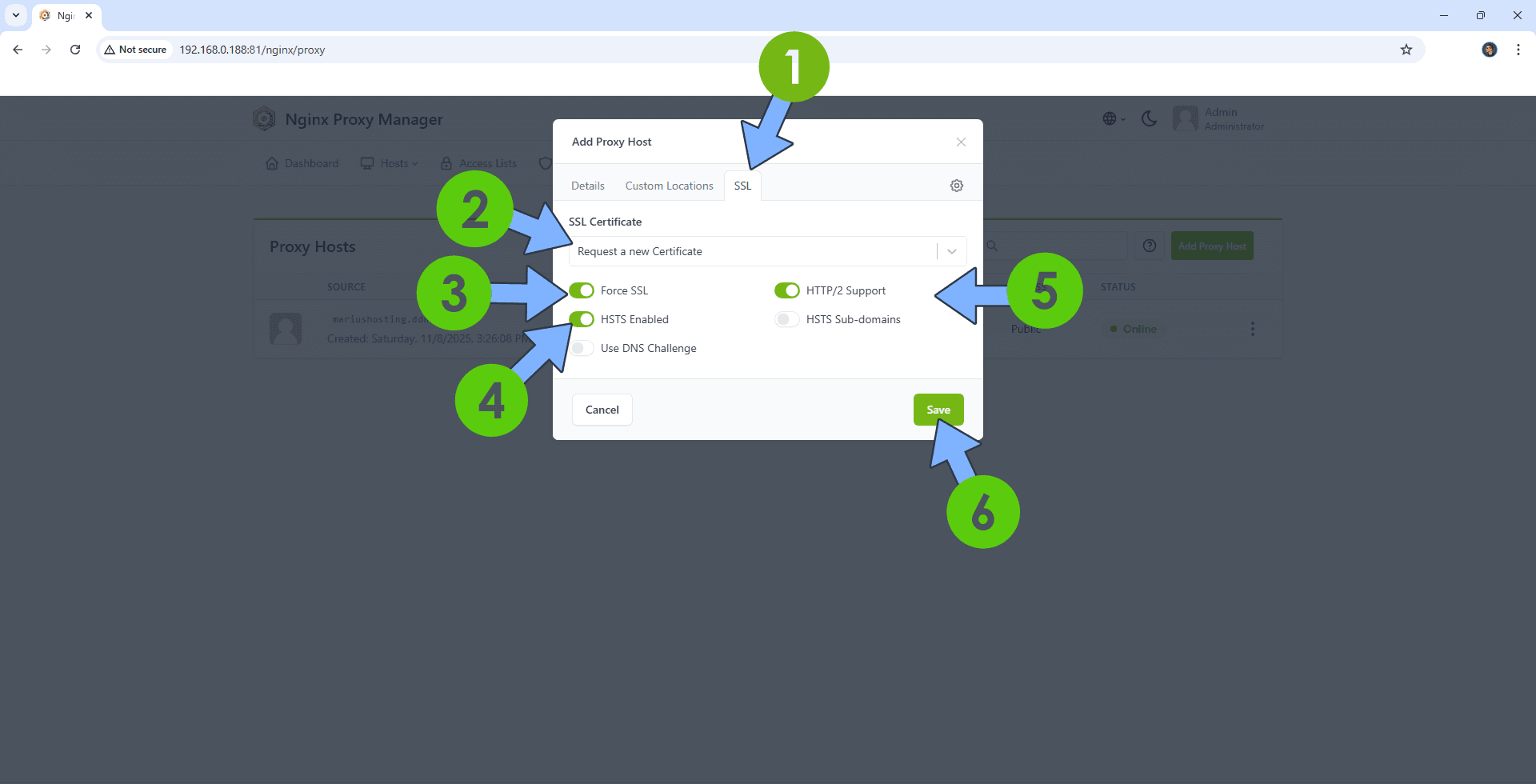

After you click the SSL tab, add the following details:

SSL Certificate: Request a new SSL Certificate
Check: Force SSL
Check: HSTS Enabled
Check: HTTP/2 Support
Click Save. Follow the instructions in the image below.

STEP 13

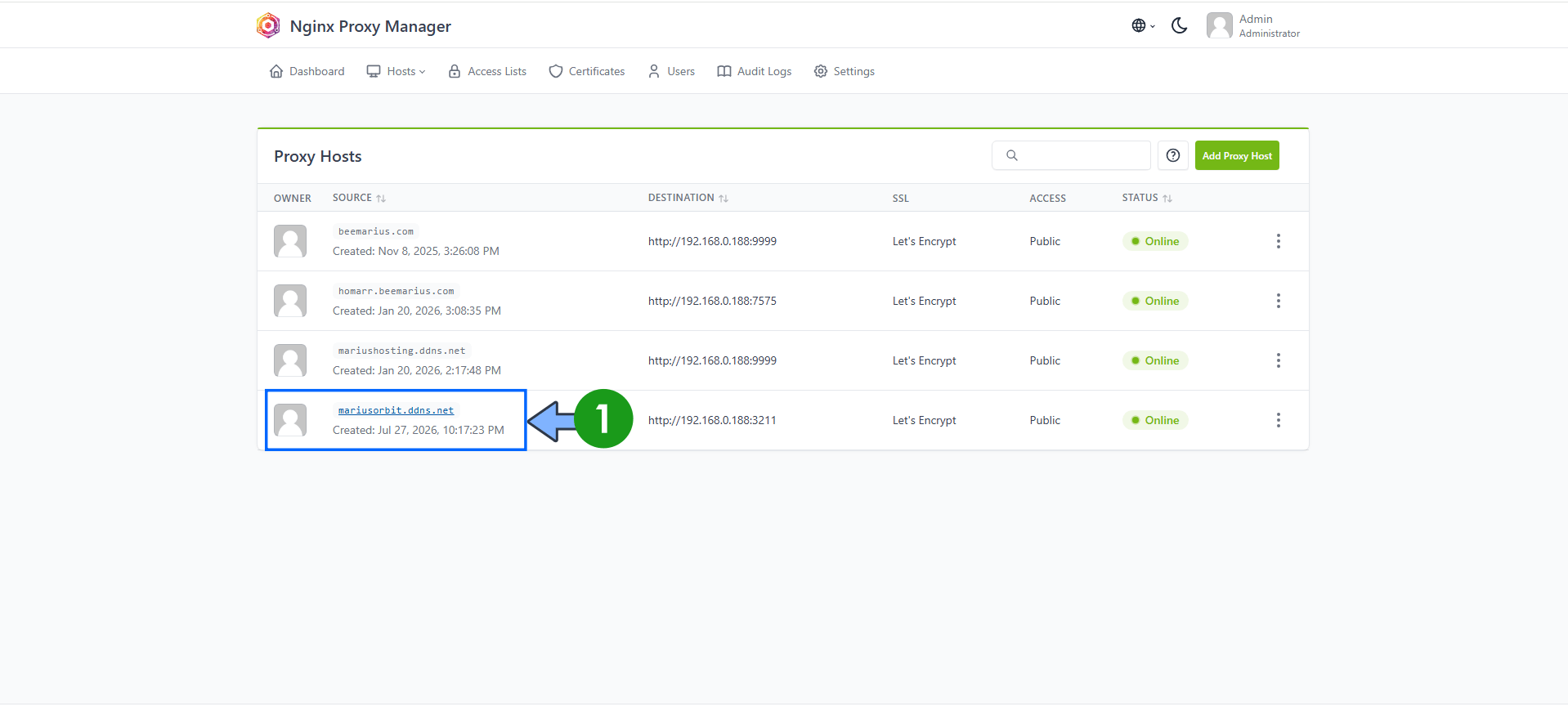

In the Proxy Hosts area, if everything goes right, you will see that your hostname has been generated. Click on it. Follow the instructions in the image below.

STEP 14

🟢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guides forget to support my work, or just ignore STEP 1. I’ve been very honest about this aspect of my work since the beginning: I don’t run any ADS, I don’t require subscriptions, paid or otherwise, I don’t collect IPs, emails, and I don’t have any referral links from Amazon or other merchants. I also don’t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. It’s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

STEP 15

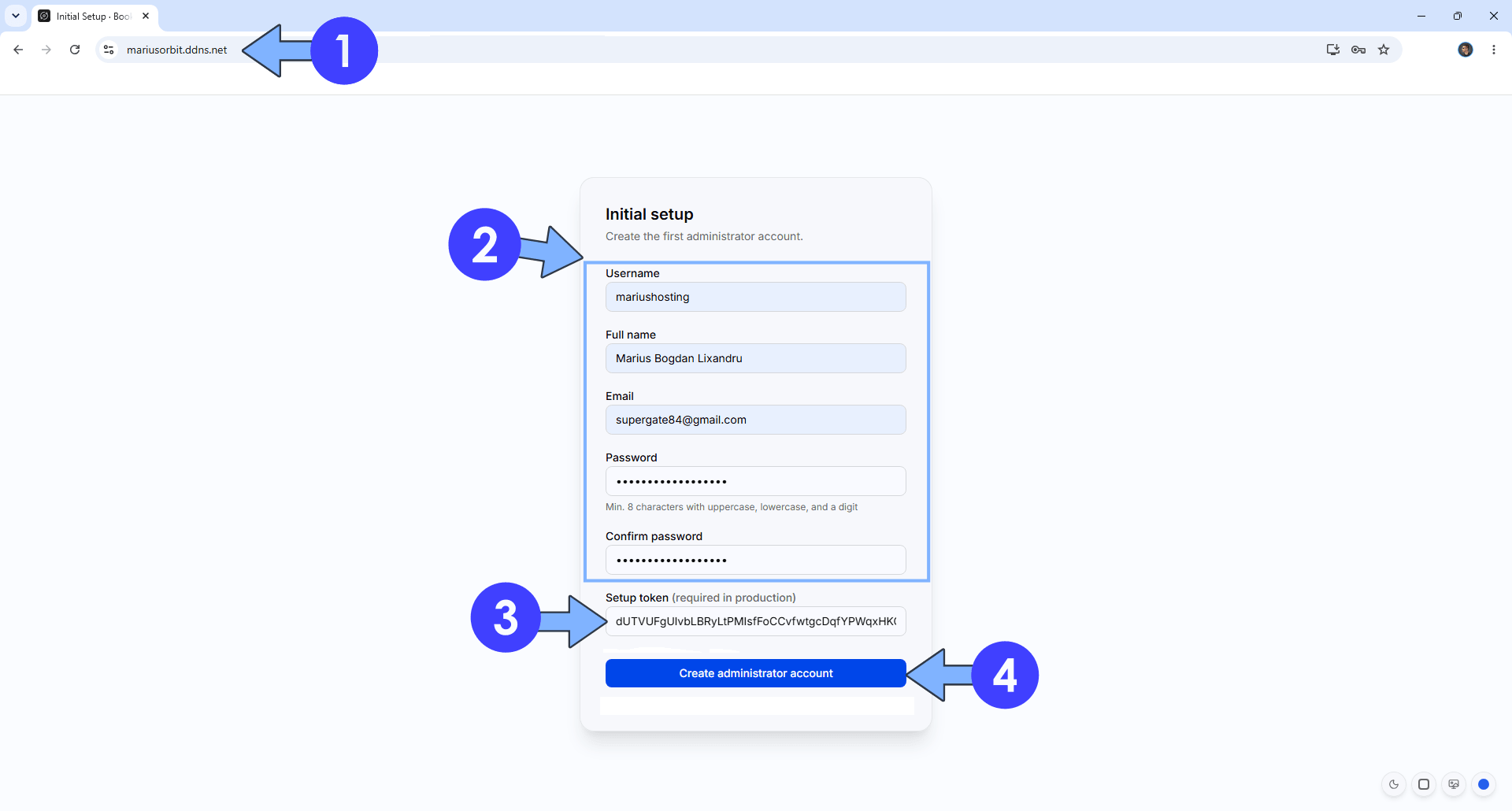

Now open your browser and type in your HTTPS/SSL certificate like this https://yourname.ddns.net In my case it’s https://mariusorbit.ddns.net If everything goes right, you will see the BookOrbit admin creation page. Type in your own details. Type in your Setup Token (SETUP_BOOTSTRAP_TOKEN) that you have previously added at STEP 10. Click Create administrator account. Follow the instructions in the image below.
