ArtCraft on UGREEN NAS: Free Open-Source Apps (PhotoCraft & More)

ArtCraft’s Crafting Apps bring a full suite of free, open-source creative and productivity tools to your UGREEN NAS. The project currently includes 13 native apps like PhotoCraft, VectorCraft, FilmCraft, LightCraft, PdfCraft, EffectCraft, DesignCraft, FigCraft, WordCraft, SoundCraft, DeckCraft, CADCraft, and GridCraft. Each of them is written from scratch in Rust as a clean-room alternative to familiar desktop software. You can run them on a UGREEN NAS through Docker. Community-built stream the apps to your browser so you can edit photos, cut video, design layouts, or work with documents directly from any device on your network without installing software on your computer. I’ve been running several of them on my own UGREEN NAS for a few weeks now, and they’ve already replaced a lot of the subscription tools I used to rely on. Being able to open PhotoCraft or LightCraft straight from the browser on any device in the house, while keeping all my files on the NAS, has made quick edits and photo organization much easier without needing a powerful workstation or paying for Adobe. In this step by step guide I will show you how to install ArtCraft Apps on your UGREEN NAS using Docker & Dockhand.

💡Note: This guide works perfectly with the latest ArtCraft Apps release.

💡Note: Check out my guide on how to Install ArtCraft Apps on Your Synology NAS.

• STEP 1

Please Support My work by Making a Donation.

• STEP 2

Install Dockhand using my step by step guide. If you already have Dockhand installed on your UGREEN NAS, skip this STEP. ⚠️Attention: Make sure you have installed the latest Dockhand version.

• STEP 3

⚠️Mandatory: Add Read & Write Permissions to the Docker Folder.

• STEP 4

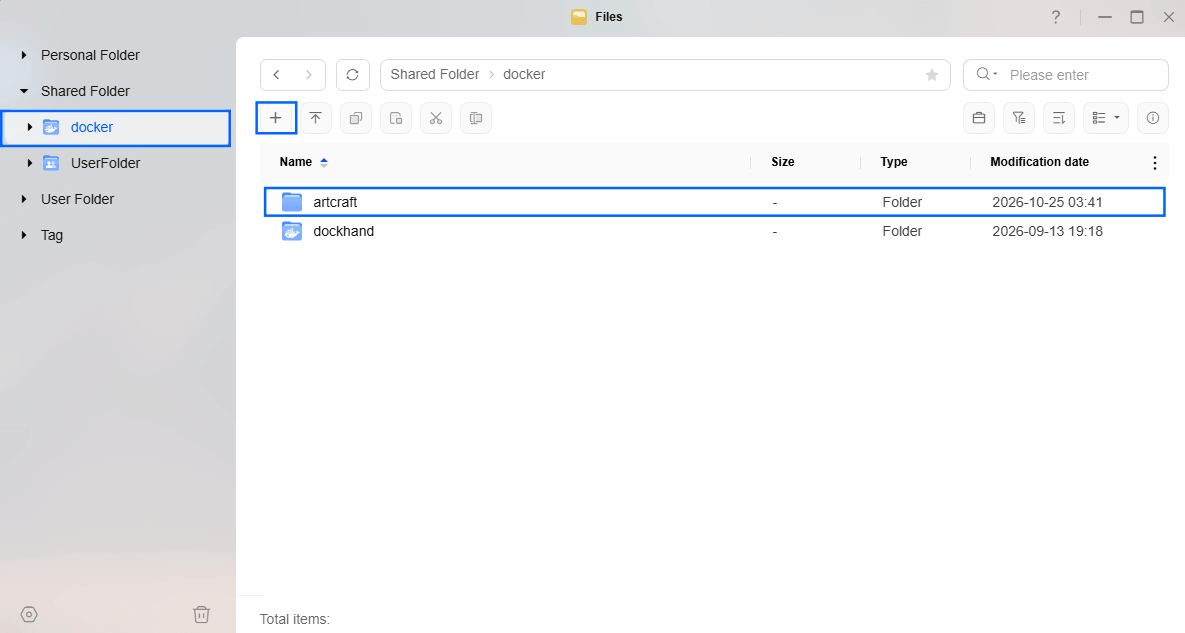

Go to Files and open the docker folder. Inside the docker folder, create one new folder and name it artcraft. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 5

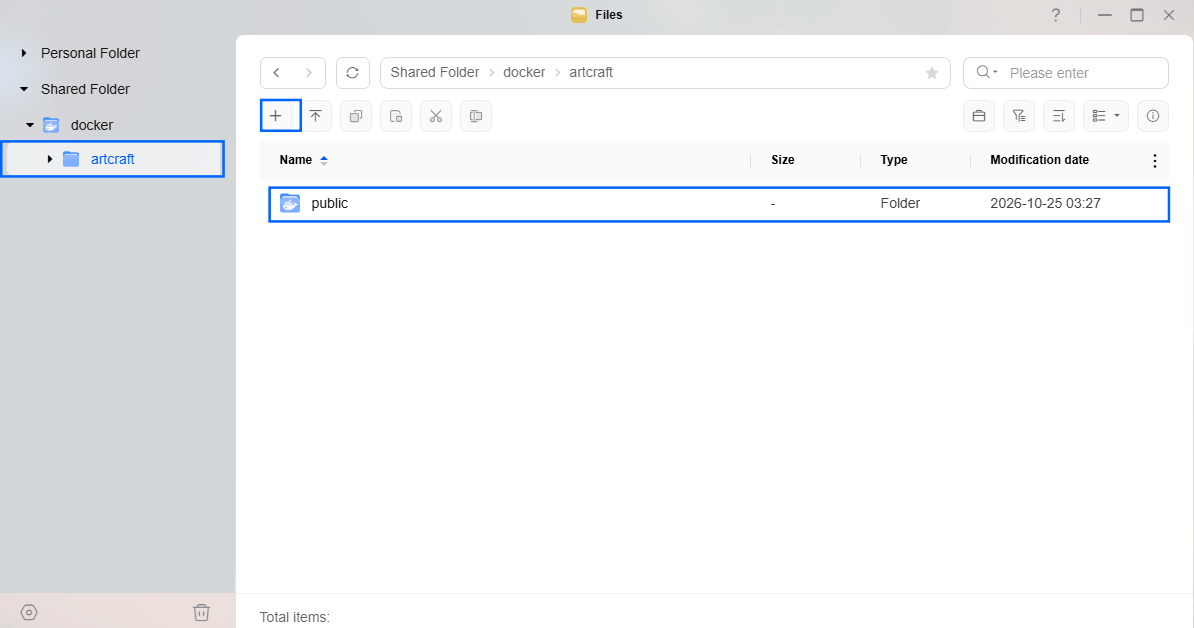

Now create one new folder inside the artcraft folder that you have previously created at STEP 4 and name it public. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 6

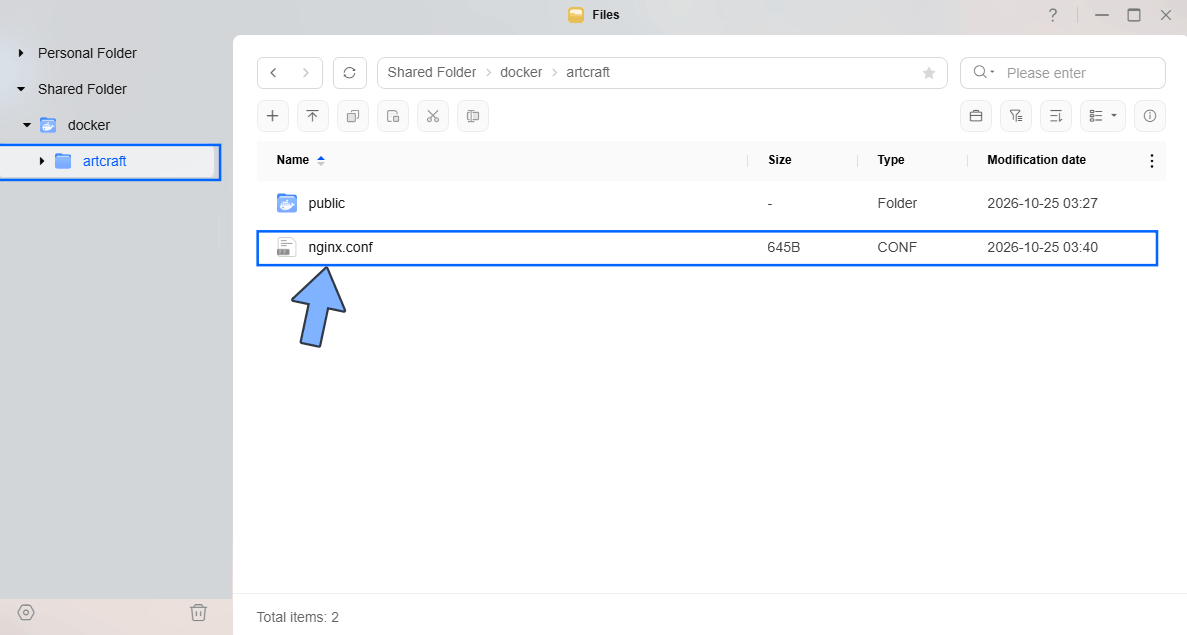

Download (click on the blue link below) and upload the nginx.conf file below in the artcraft folder that you have previously created at STEP 4. Follow the instructions in the image below. 🔒Note: Support my work to unlock the password. You can use this password to download any file on mariushosting forever!

👉🏻nginx.conf

• STEP 7

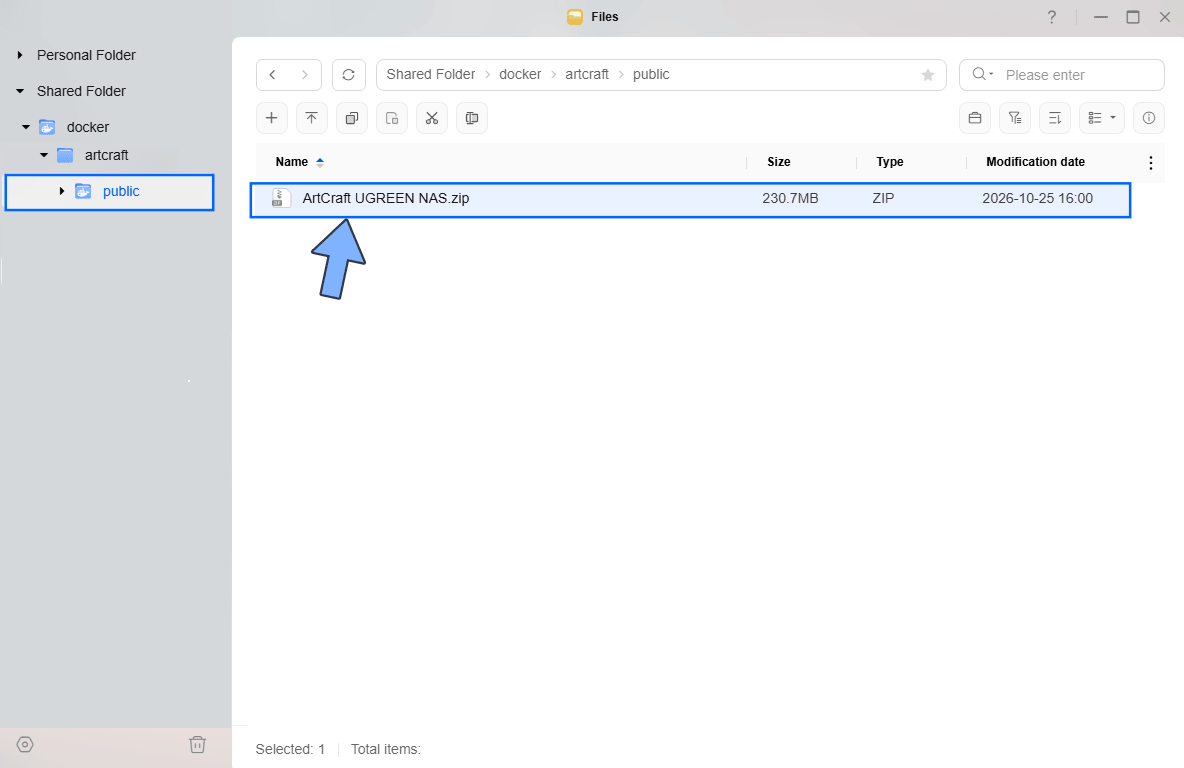

Download (click on the blue link below) and upload the ArtCraft UGREEN NAS.zip file below in the public folder that you have previously created at STEP 5. Follow the instructions in the image below. 🔒Note: Support my work to unlock the password. You can use this password to download any file on mariushosting forever!

👉🏻ArtCraft UGREEN NAS.zip

• STEP 8

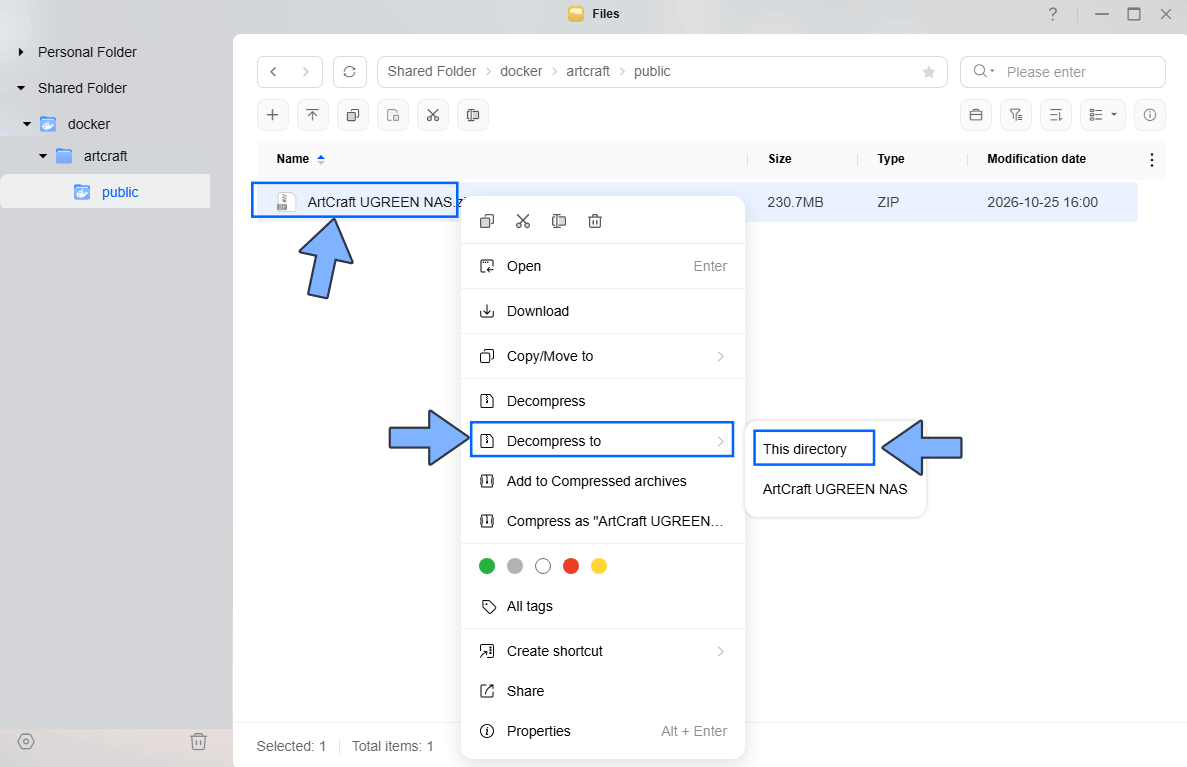

Right click on the zip file / Decompress to / This Directory. Follow the instructions in the image below.

• STEP 9

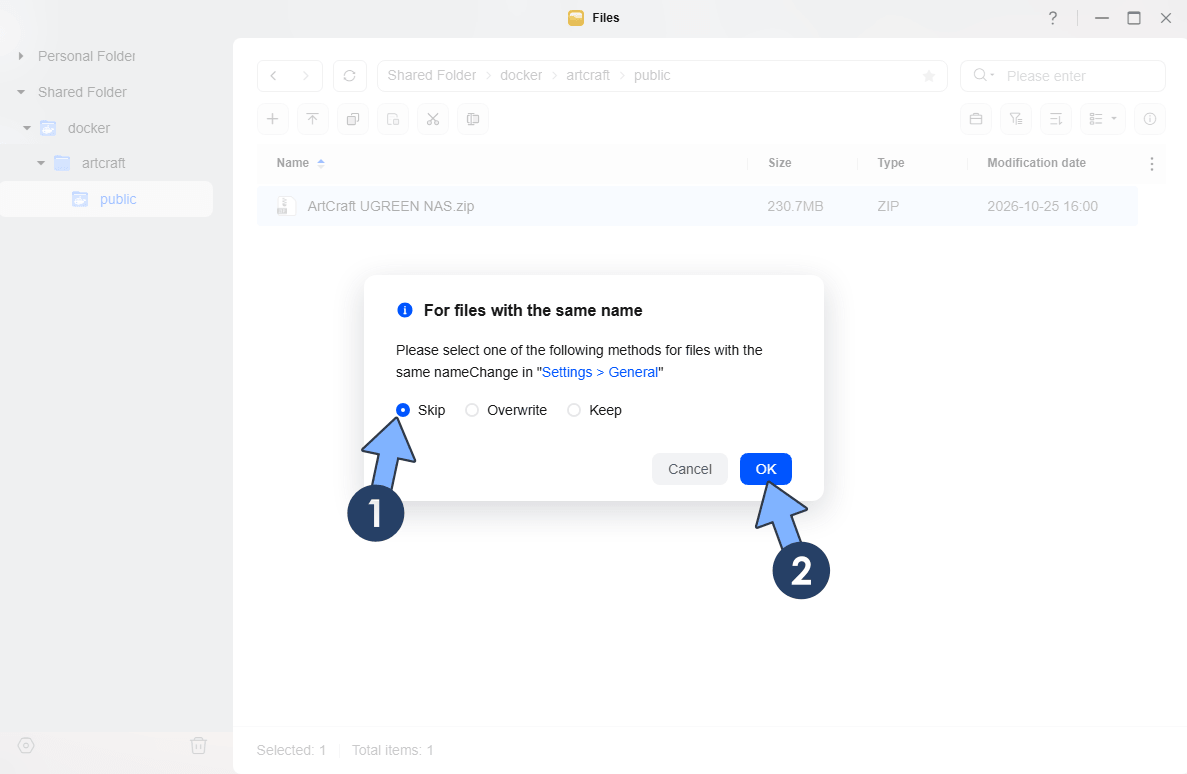

A new pop up window will open. Select Skip then OK. Follow the instructions in the image below.

• STEP 10

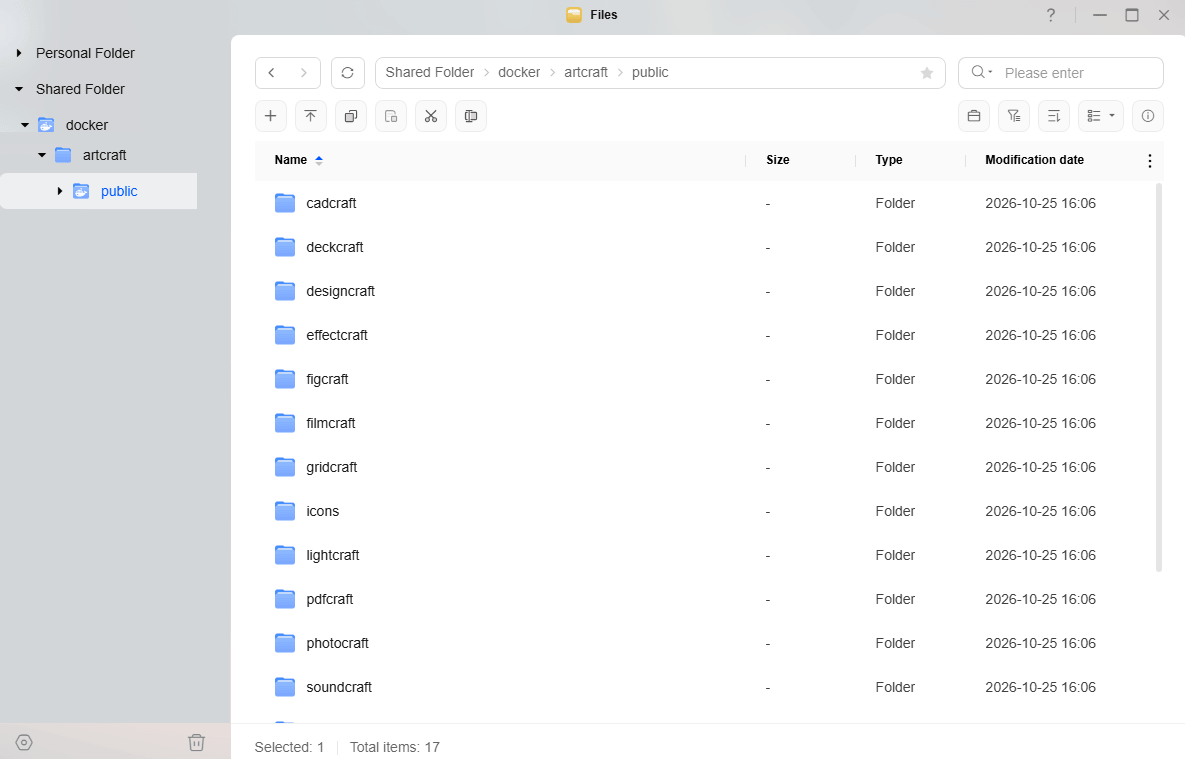

Your public folder will look like this. Go straight to the next STEP.

• STEP 11

Open your browser and type in http://ugreen-ip-address:3866 to connect to your Dockhand container. On the left sidebar, click Stacks then + Create. Follow the instructions in the image below.

• STEP 12

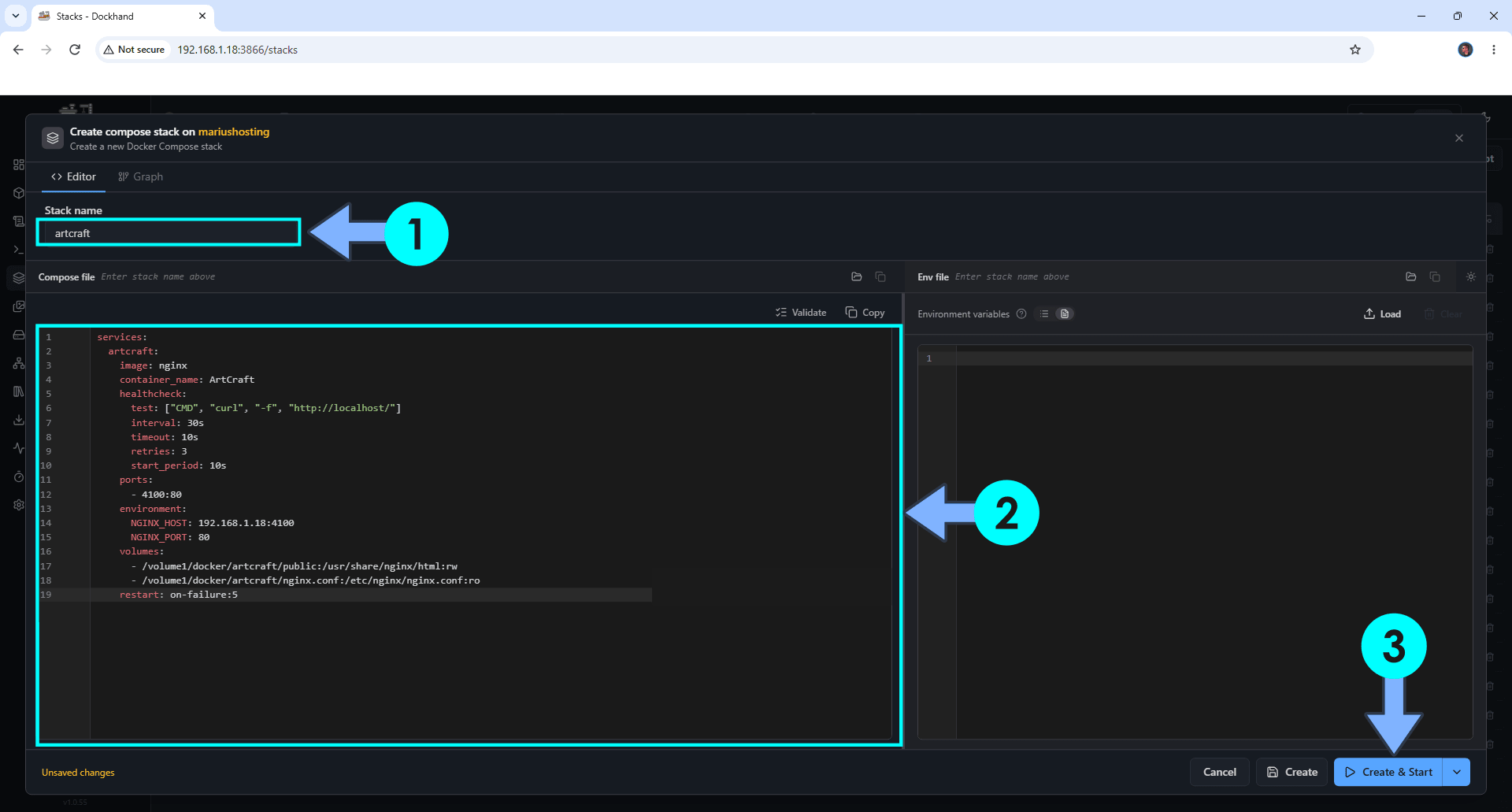

In the Stack name field, type in artcraft. ⚠️Warning: Type in the name in lowercase letters. The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Follow the instructions in the image below.

Note: Copy Paste the code below in the Dockhand Compose Stack then click Create & Start.

services:
  artcraft:
    image: nginx
    container_name: ArtCraft
    healthcheck:
      test: ["CMD", "curl", "-f", "http://localhost/"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 10s
    ports:
      - 4100:80
    environment:
      NGINX_HOST: 192.168.0.188:4100
      NGINX_PORT: 80
    volumes:
      - /volume1/docker/artcraft/public:/usr/share/nginx/html:rw
      - /volume1/docker/artcraft/nginx.conf:/etc/nginx/nginx.conf:ro
    restart: on-failure:5

Note: Before you paste the code above in the Stack editor area below, change the value for NGINX_HOST with your own Local NAS IP followed by :4100

• STEP 13

If everything goes right, you will see the following message at the bottom right of your screen: “Created stack “artcraft”“.

• STEP 14

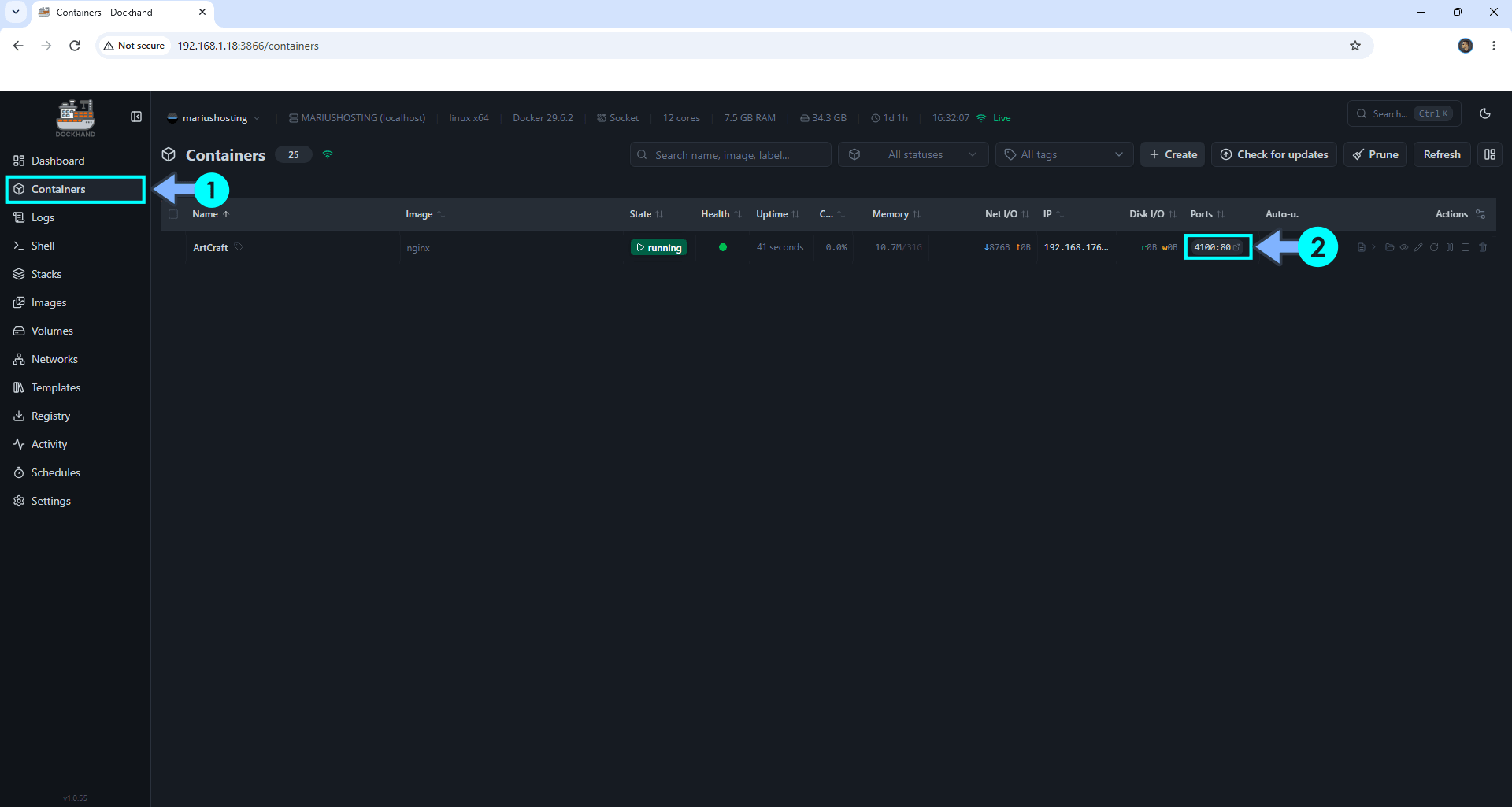

On the left sidebar, click Containers. Identify your ArtCraft container then click on ports 4100:80. Follow the instructions in the image below.

• STEP 15

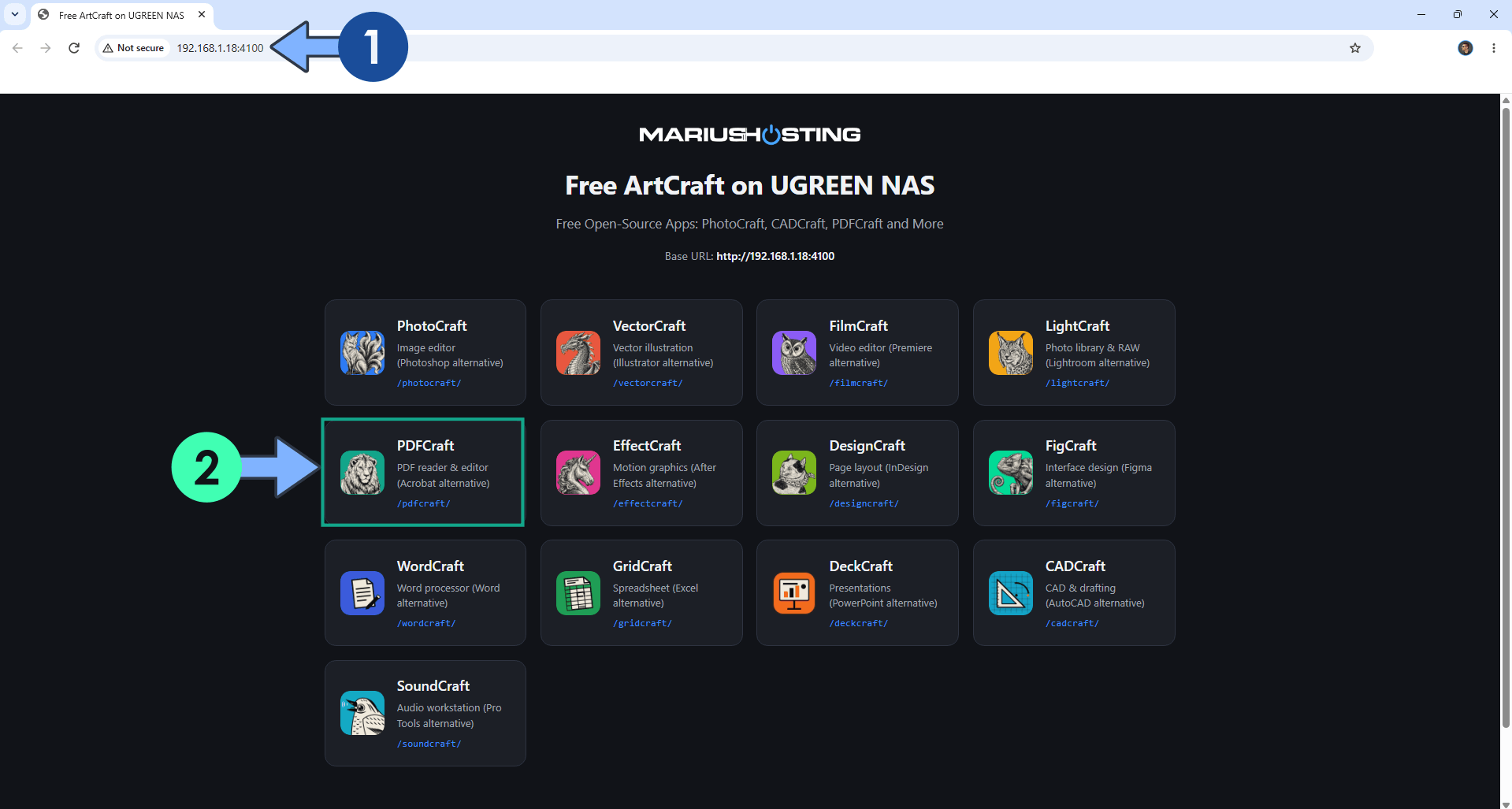

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://ugreen-ip-address:4100 Your ArtCraft Apps at a glance. Click on the App that you want to open. In my example, I opened PDFCraft. Follow the instructions in the image below.

• STEP 16

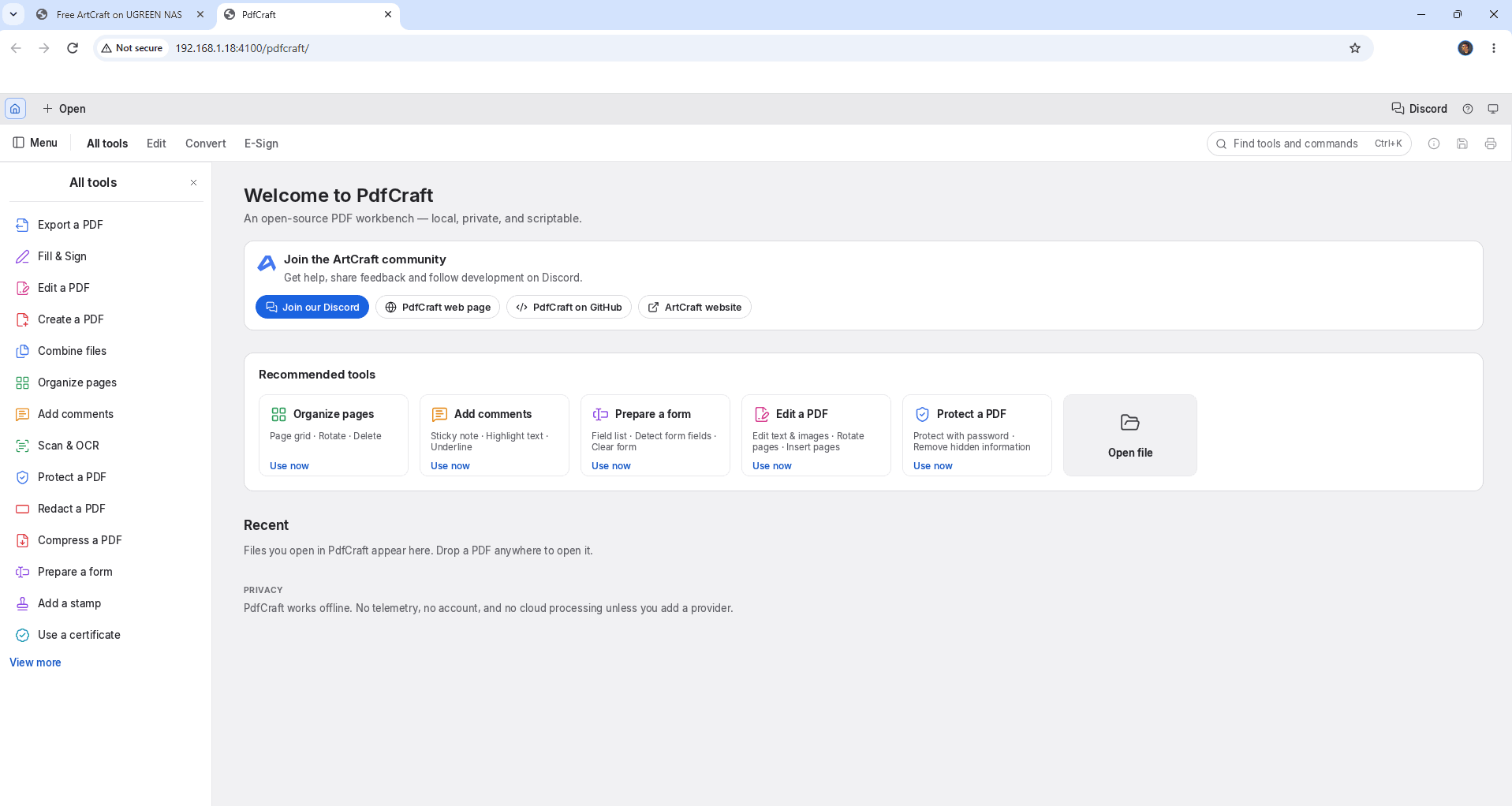

Your PDFCraft app at a glance!

Enjoy ArtCraft Apps on your UGREEN NAS!

🆘TROUBLESHOOTING

Note: If you want to run the ArtCraft Apps container over HTTPS, check out How to Run Docker Containers Over HTTPS on Your UGREEN NAS.
🆙Note/Update/Container: How to Update Your Docker Containers on UGREEN NAS Using Dockhand.
🐳Note: How to Create Docker Shortcuts on Desktop.
🆕Note: How to Update Dockhand to the latest version.
🆕Note: How to Clean Docker with Dockhand.
