How to Install Transmission on Your UGREEN NAS

Transmission is designed for easy, powerful use. Transmission has the features you want from a BitTorrent client: encryption, a web interface, peer exchange, magnet links, DHT, ĀµTP, UPnP and NAT-PMP port forwarding, webseed support, watch directories, tracker editing, global and per-torrent speed limits, and more. In this step by step guide I will show you how to install TransmissionĀ on yourĀ UGREEN NAS using Docker & Portainer.

šŸ’”Note: This guide works perfectly with the latest Transmission 4.0.6 release.

šŸ’”Note: Check out my guide on how to Install Transmission on Your Synology NAS.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

āš ļøMandatory Add Read & Write Permissions to the Docker Folder. If you have already added the Read and Write Permissions to the Docker Folder, skip this STEP.

  • STEP 3

InstallĀ Portainer using my step by step guide. If you already have Portainer installed on your UGREEN NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 4

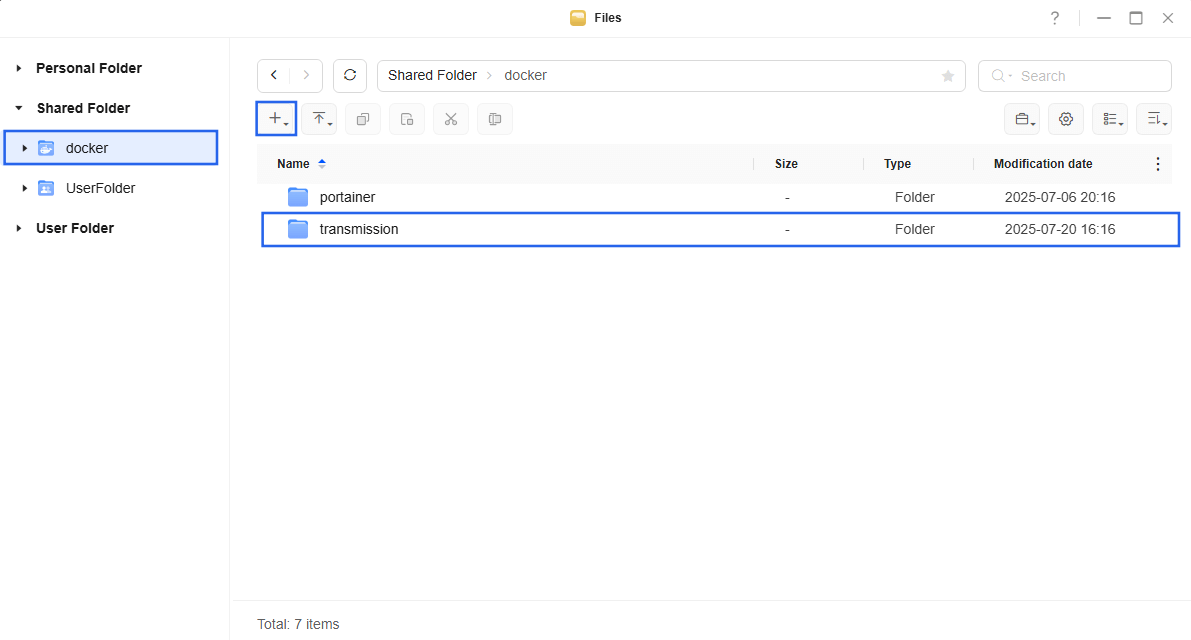

Go toĀ Files and open the docker folder. Inside the docker folder, create one new folders and name it transmission. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Transmission Synology NAS Set up 1 new 2026

  • STEP 5

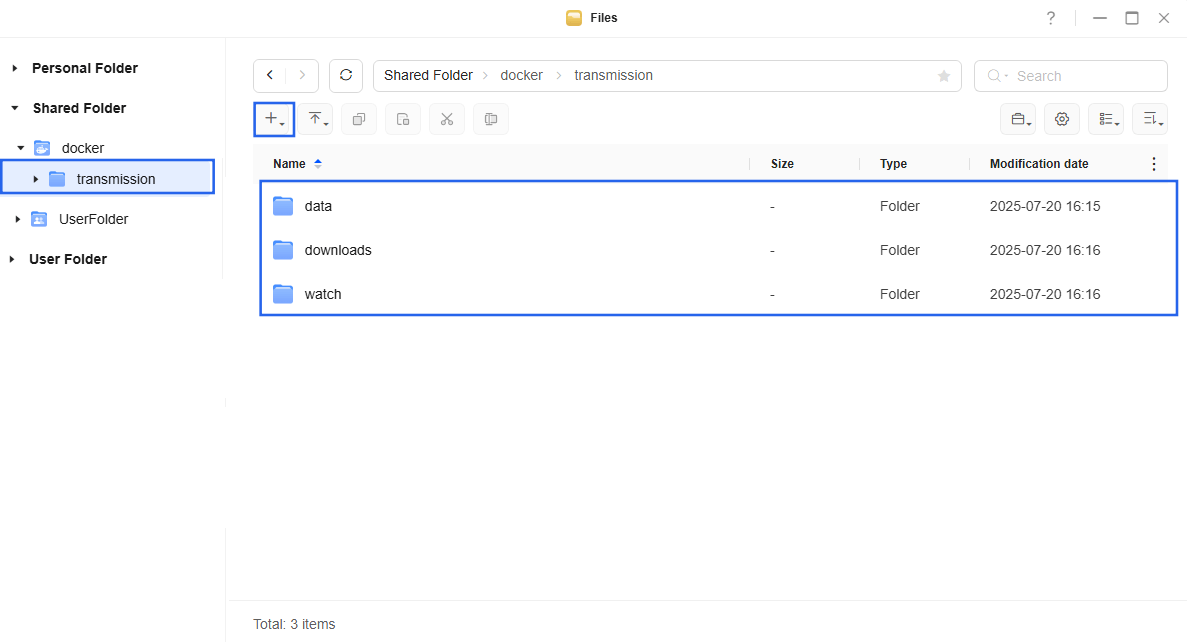

Now createĀ three new folders inside theĀ transmissionĀ folder that you created atĀ STEP 4 and name them data,Ā downloads,Ā watch. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Transmission Synology NAS Set up 2 new 2026

  • STEP 6

Log into Portainer using your username and password. On the left sidebar in Portainer, click on StacksĀ thenĀ + Add stack. Follow the instructions in the image below.

UGREEN NAS Portainer Add Stack

  • STEP 7

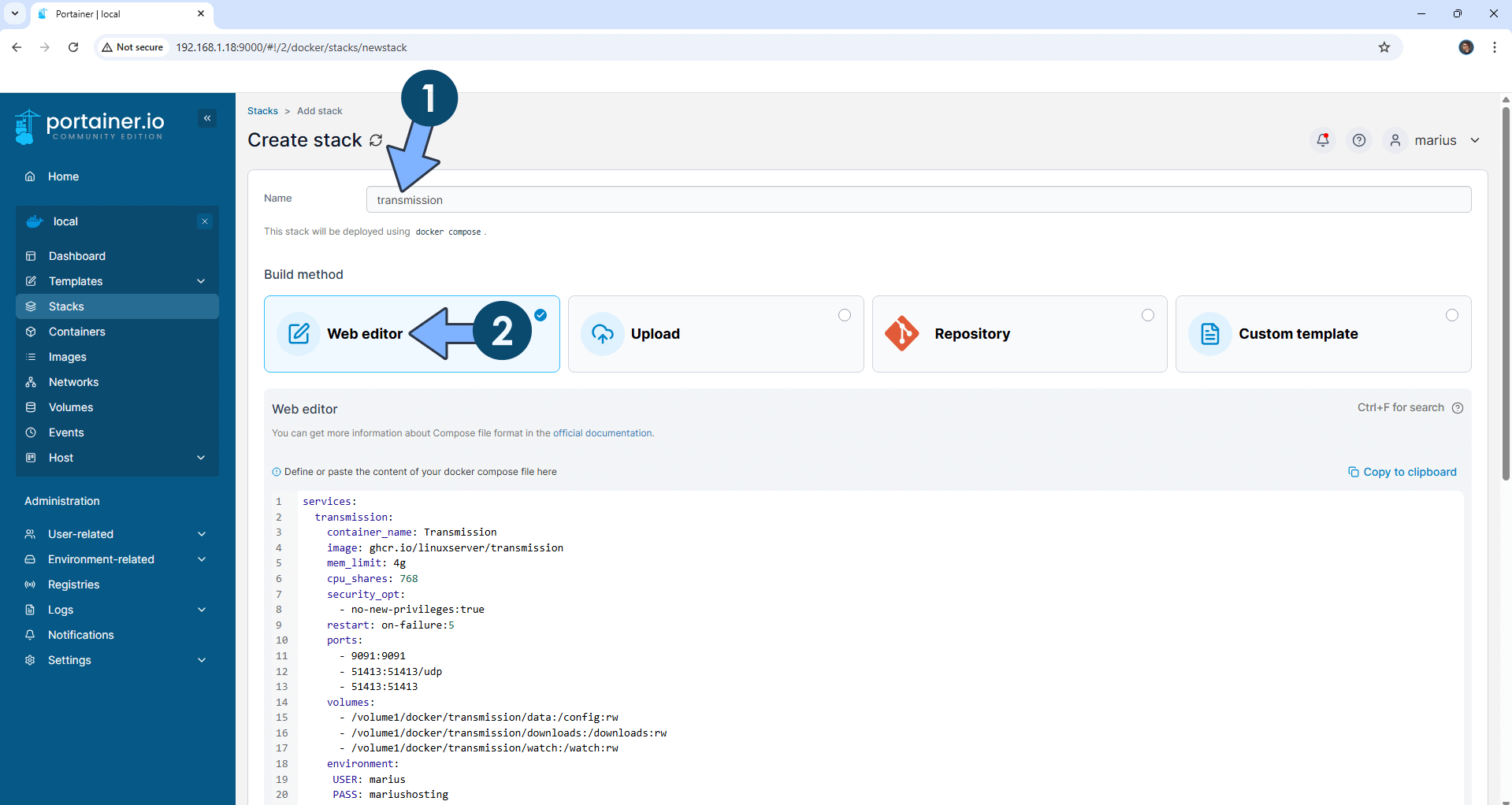

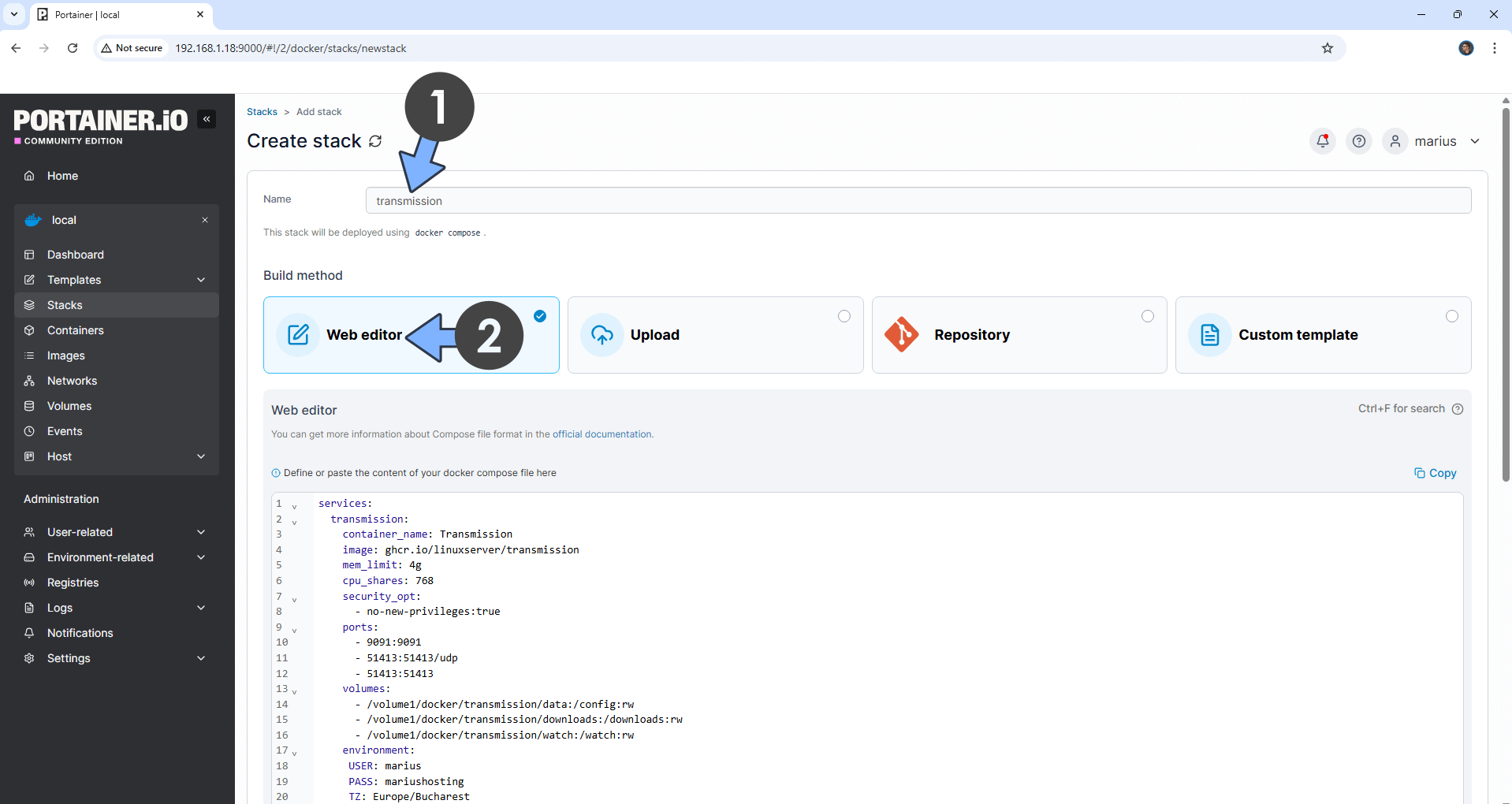

In the Name field type in transmission. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  transmission:
    container_name: Transmission
    image: ghcr.io/linuxserver/transmission
    mem_limit: 4g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    restart: on-failure:5
    ports:
      - 9091:9091
      - 51413:51413/udp
      - 51413:51413
    volumes:
      - /volume1/docker/transmission/data:/config:rw
      - /volume1/docker/transmission/downloads:/downloads:rw
      - /volume1/docker/transmission/watch:/watch:rw
    environment:
     USER: marius
     PASS: mariushosting
     TZ: Europe/Bucharest
     PUID: 999
     PGID: 10

Note: Before you paste the code above in the Web editor area below, change the value for USER. Type in your own username. marius is an example for a username.
Note: Before you paste the code above in the Web editor area below, change the value for PASS. Type in your own password. mariushosting is an example for a password.
Note: Before you paste the code above in the Web editor area below, change the value for TZ.Ā (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Web editor area below, change the value numbers for PUIDĀ andĀ PGIDĀ with your own values. (Follow my step by step guide on how to do this.)

Transmission Synology NAS Set up 3 new 2026

  • STEP 8

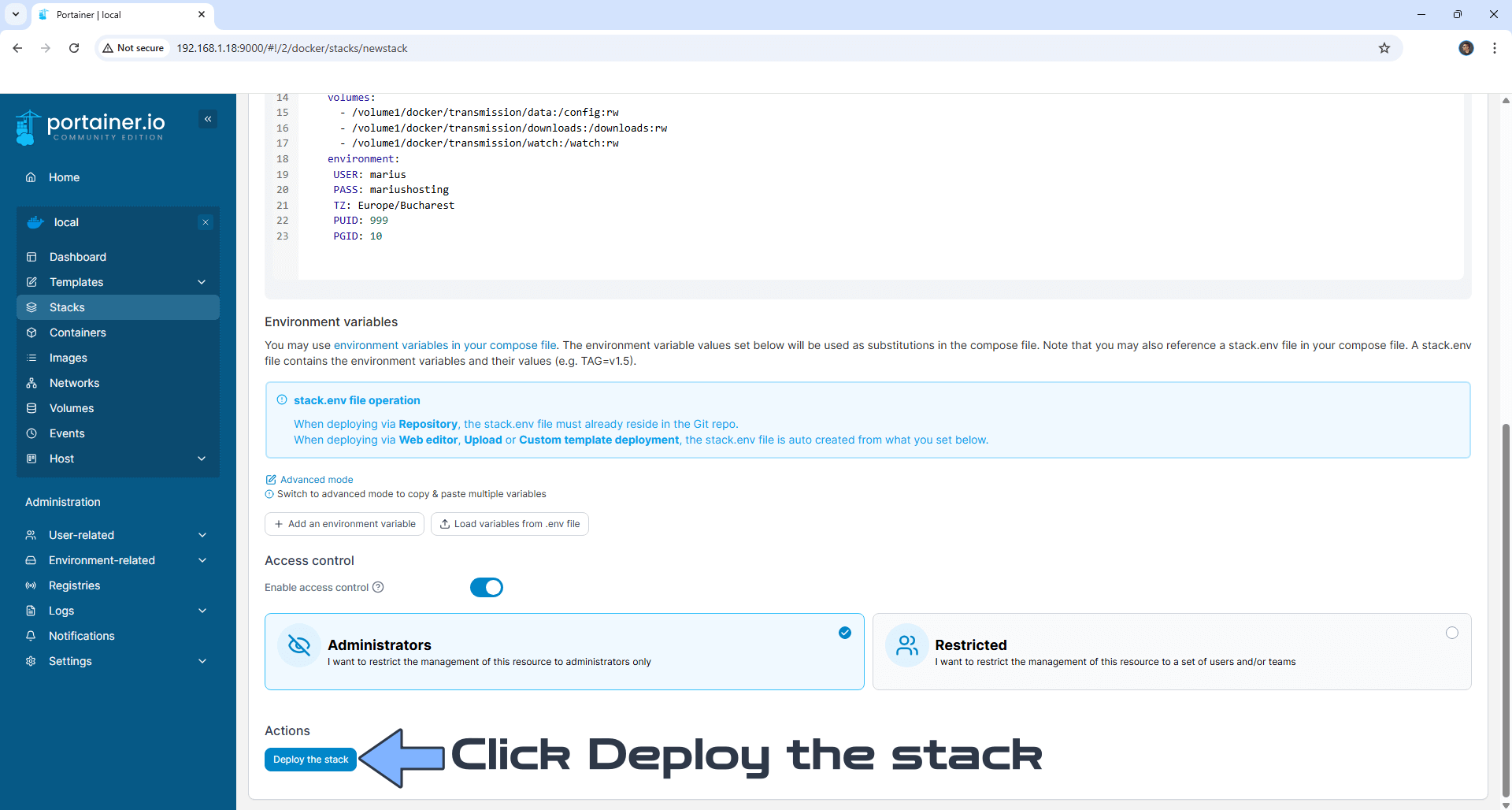

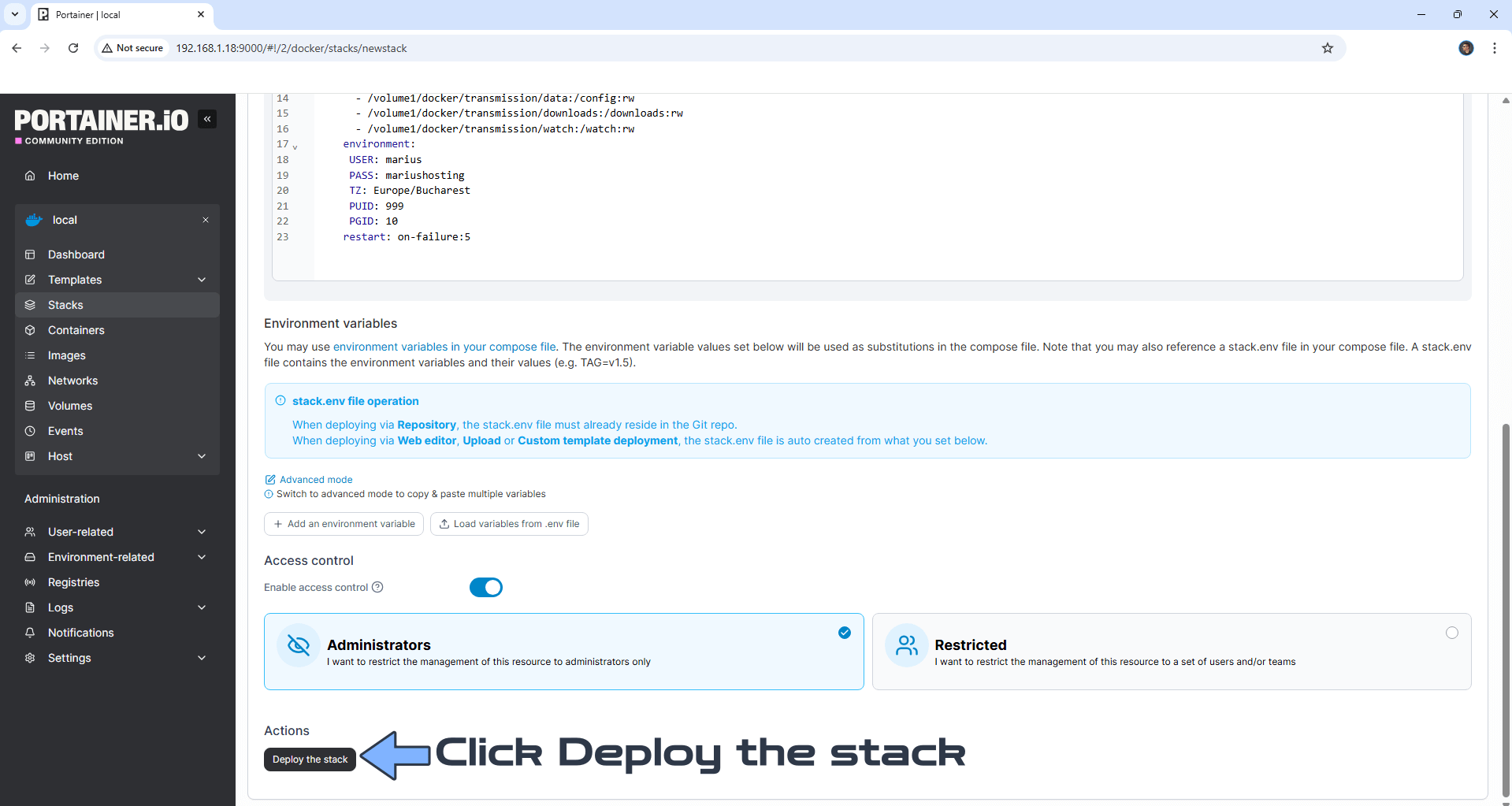

Scroll down on the page until you see a button namedĀ Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Transmission Synology NAS Set up 4 new 2026

  • STEP 9

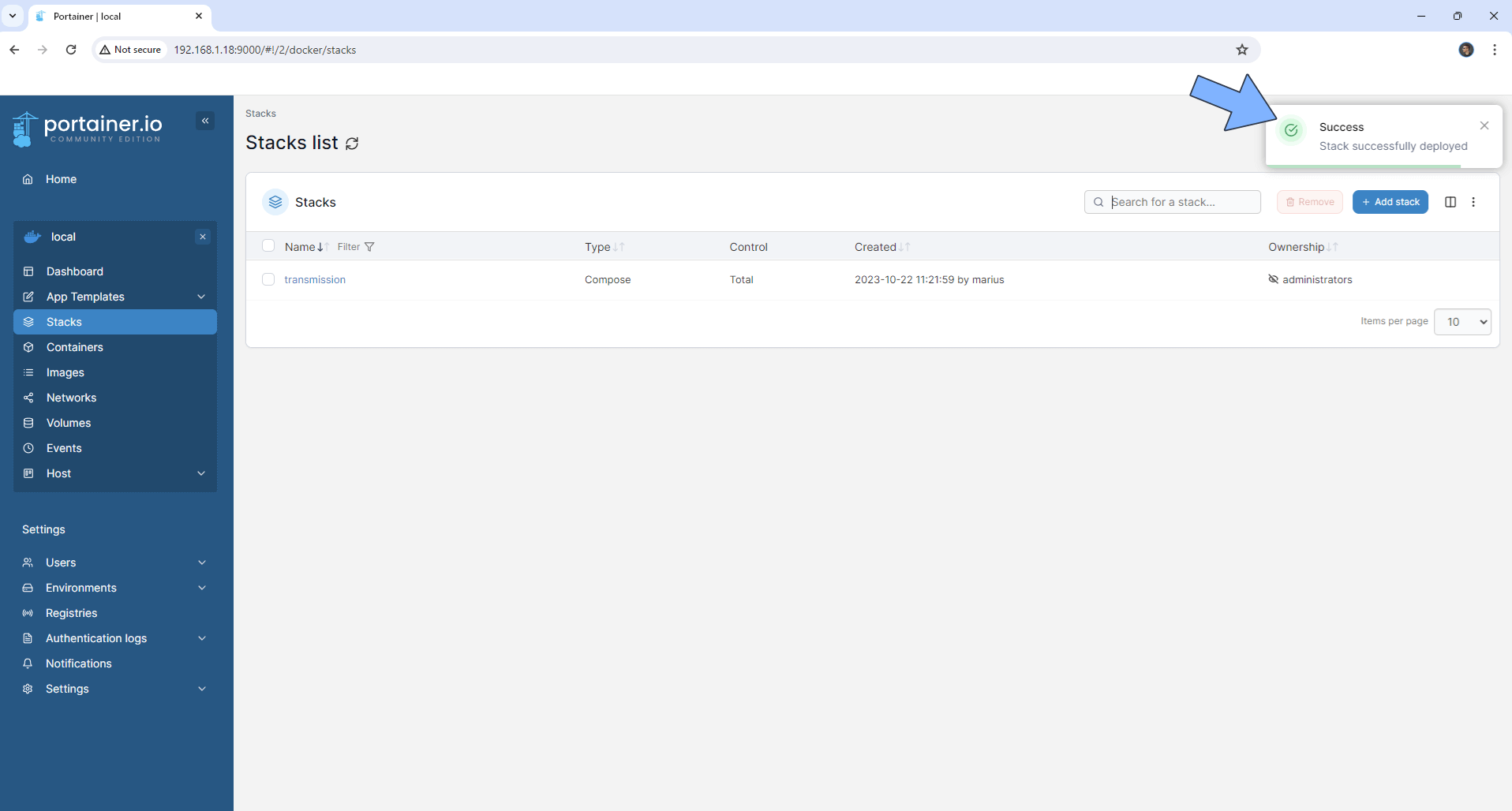

If everything goes right, you will see the following message at the top right of your screen: ā€œSuccess Stack successfully deployedā€œ.

Transmission Synology NAS Set up 5 new 2026

  • STEP 10

šŸŸ¢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guidesĀ forget to support my work, or justĀ ignoreĀ STEP 1. Iā€™ve been very honest about this aspect of my work since the beginning: I donā€™t run any ADS, I donā€™t require subscriptions, paid or otherwise, I donā€™t collect IPs, emails, and I donā€™t have any referral links from Amazon or other merchants. I also donā€™t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. Itā€™s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

  • STEP 11

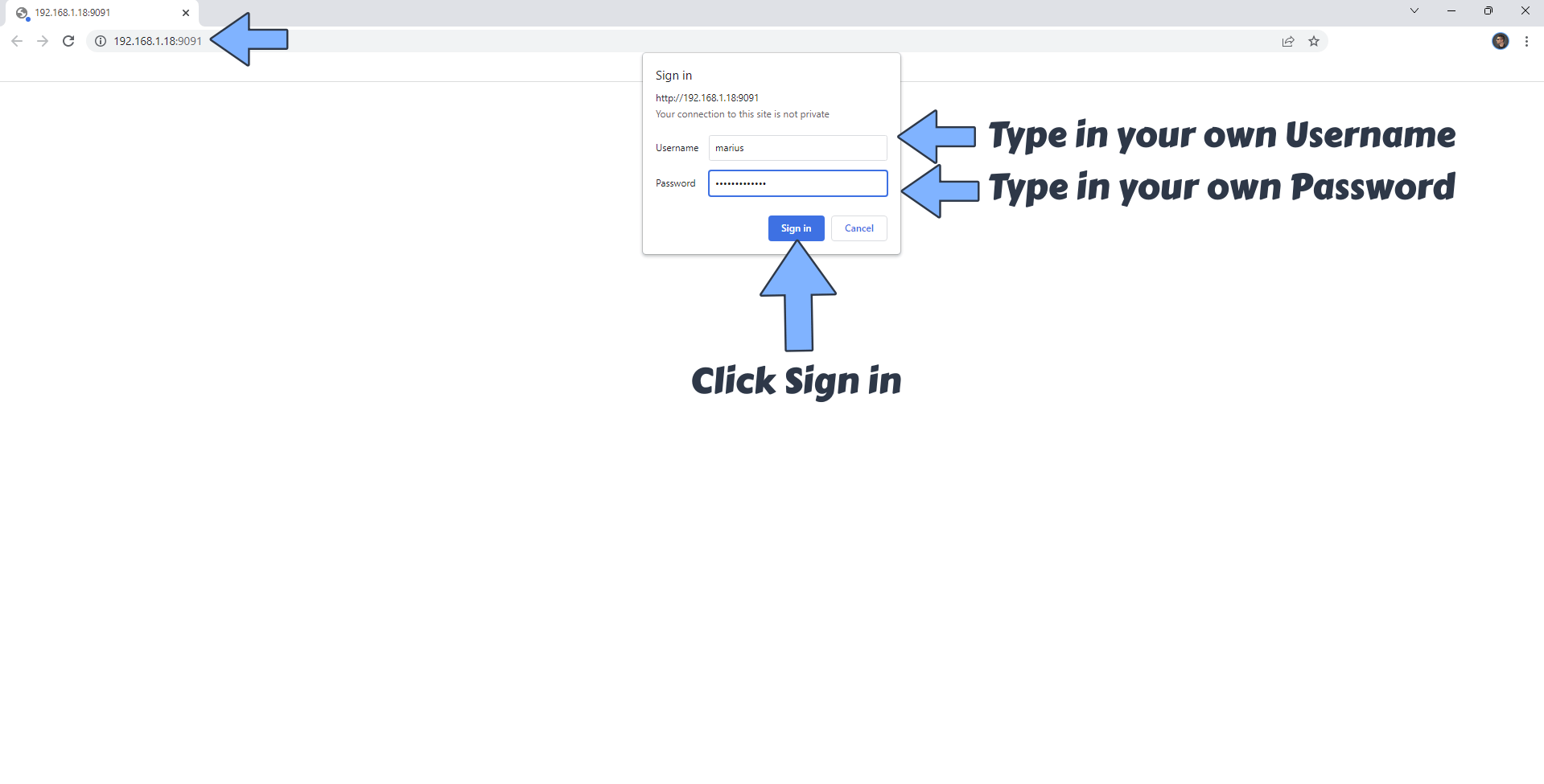

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser andĀ type in http://ugreen-ip-address:9091 You will be prompted to add the Username (USER) and Password (PASS) that you have previously added at STEP 7. Click Sign in. Follow the instructions in the image below.

Transmission UGREEN NAS Portainer Set up 6 login

  • STEP 12

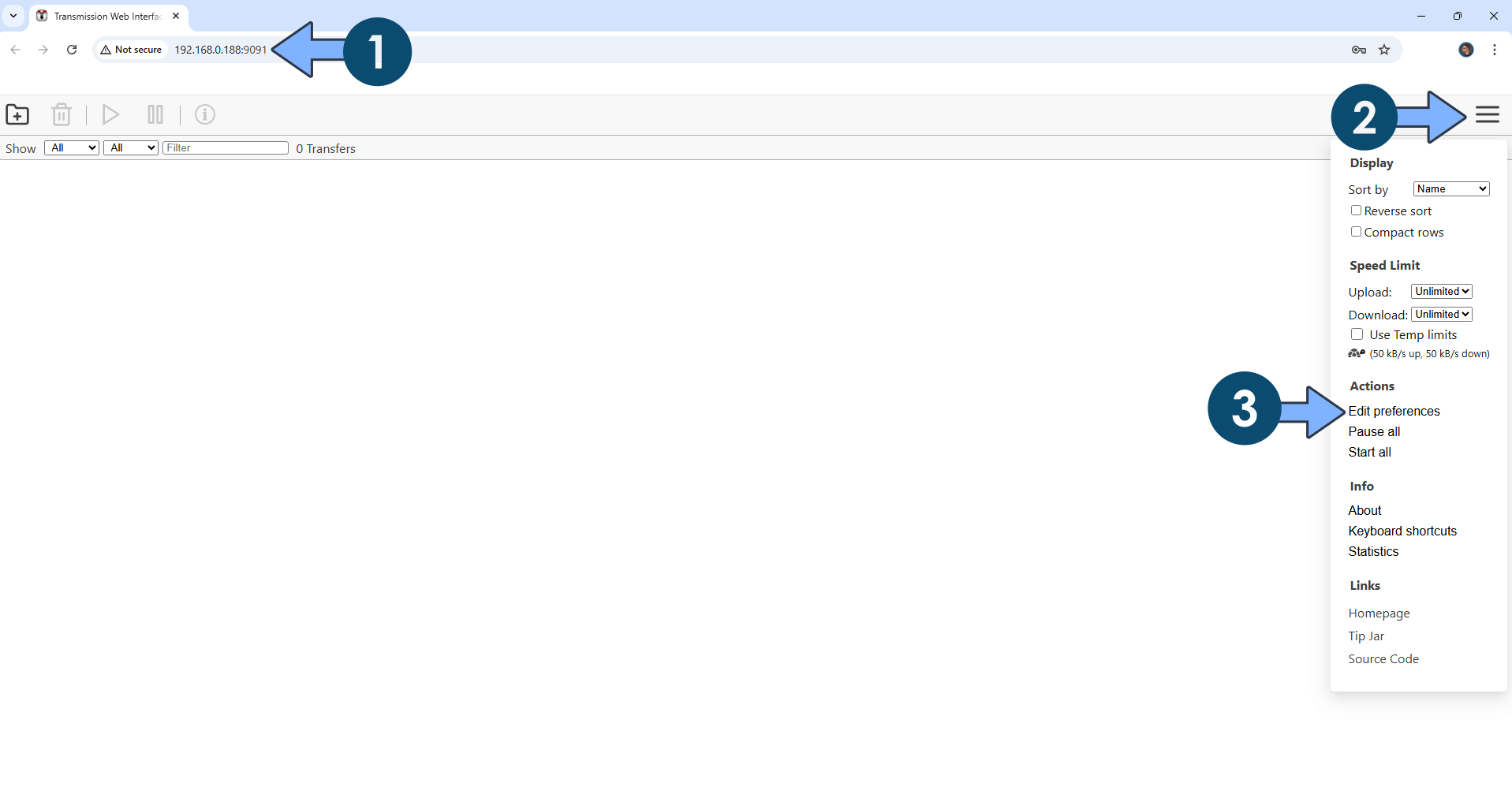

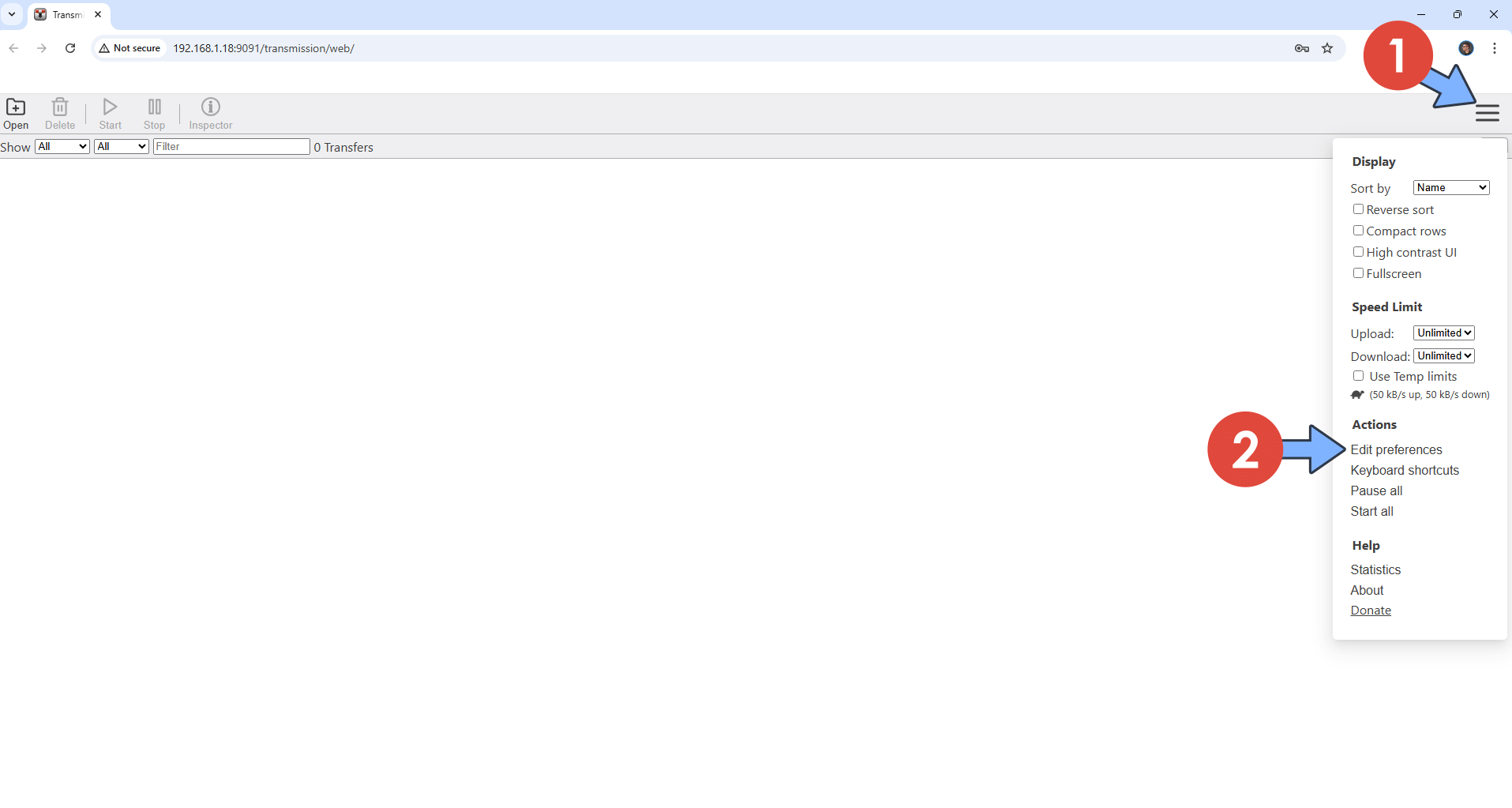

At the top right of the page, click on the 3 horizontal lines, then Edit preferences. Follow the instructions in the image below.

Transmission Synology NAS Set up 6 new 2026

  • STEP 13

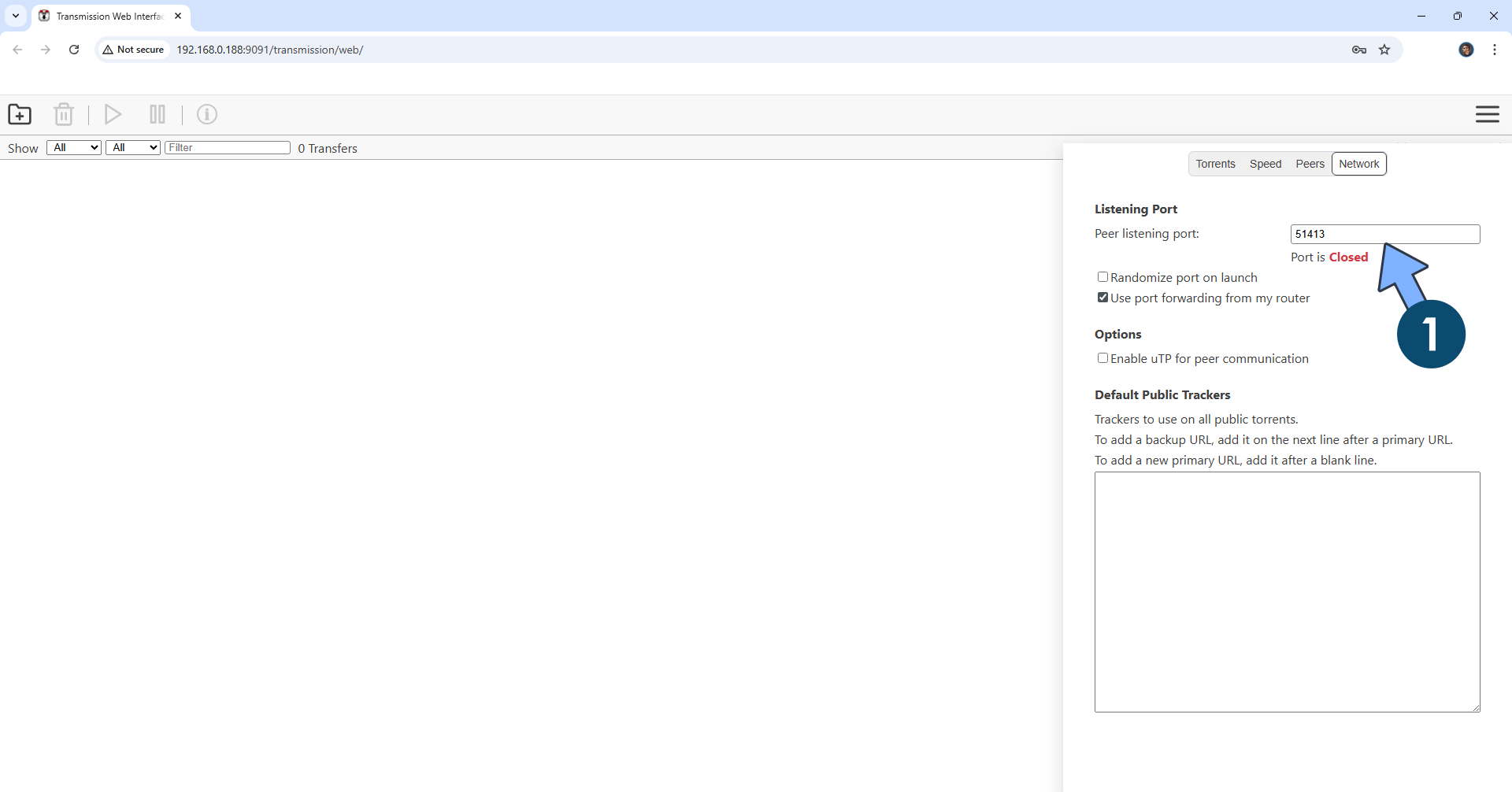

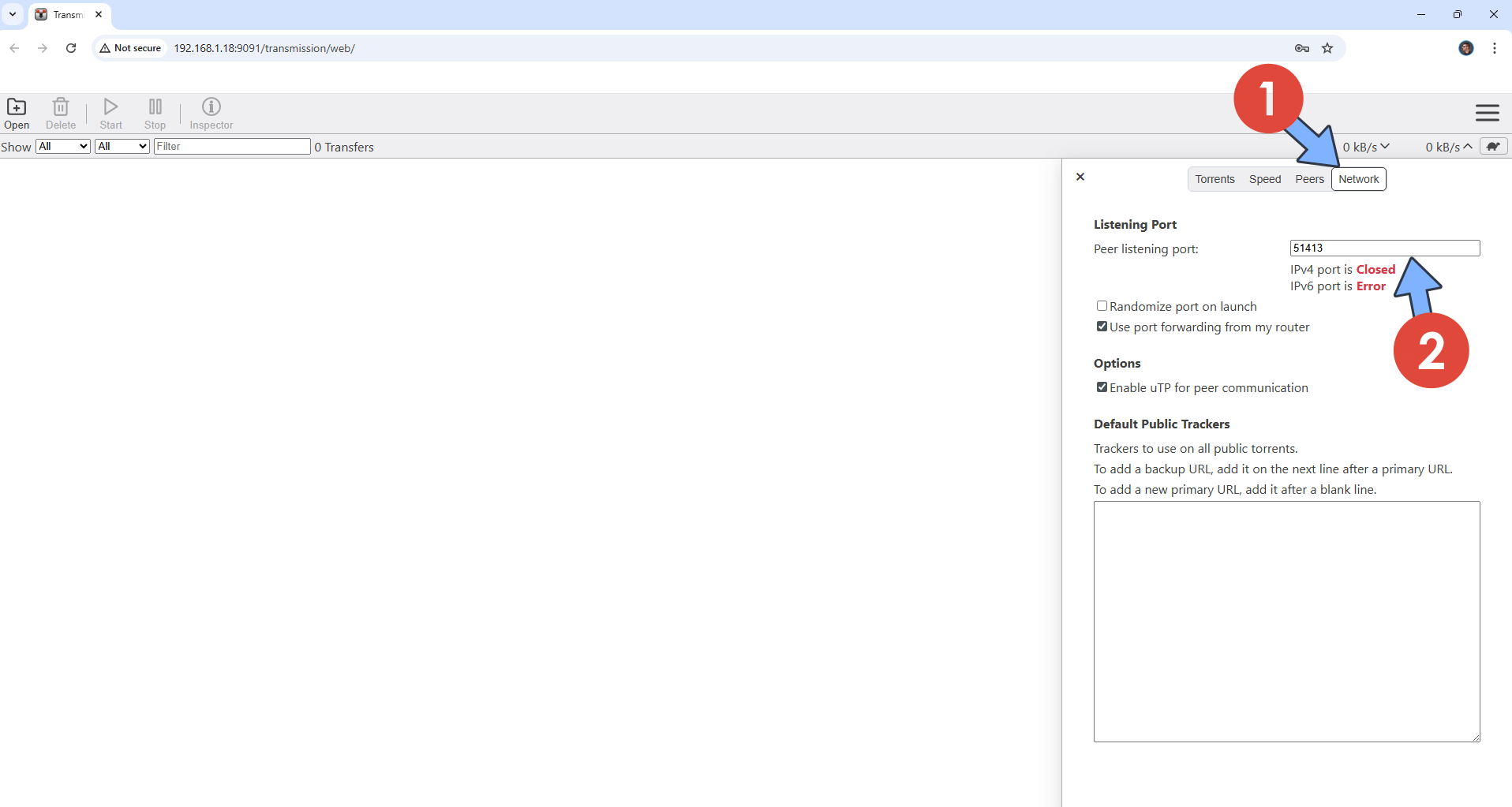

Port forward port 51413 in your router pointing to your UGREEN NAS local IP. Follow the instructions in the image below.

Transmission Synology NAS Set up 7 new 2026

Enjoy Transmission on your UGREEN NAS!

šŸ†˜TROUBLESHOOTING

šŸŸ¢Note: If you want to run the Transmission container over HTTPS, check out How to Run Docker Containers Over HTTPS on Your UGREEN NAS.
šŸ†™Note/Update/Container: How to Update Your Docker Containers on UGREEN NAS Using Portainer.
šŸ³Note: How to Create Docker Shortcuts on Desktop.
šŸ†•Note: How to Update Portainer to the latest version.
