How to Install Lyrion Music Server on Your UGREEN NAS

Lyrion Music Server (formerly Logitech Media Server) is an open-source server software which controls a wide range of Squeezebox audio players. Lyrion can stream your local music collection, internet radio stations, and content from many streaming services (with and without subscriptions). In this step by step guide I will show you how to install Lyrion Music Server on your UGREEN NAS using Docker & Portainer.

šŸ’”Note: This guide works perfectly with the latest Lyrion Music Server v9.1.0Ā release.

šŸ’”Note: Check out my guide on how to Install Lyrion Music Server on Your Synology NAS.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

InstallĀ Portainer using my step by step guide. If you already have Portainer installed on your UGREEN NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

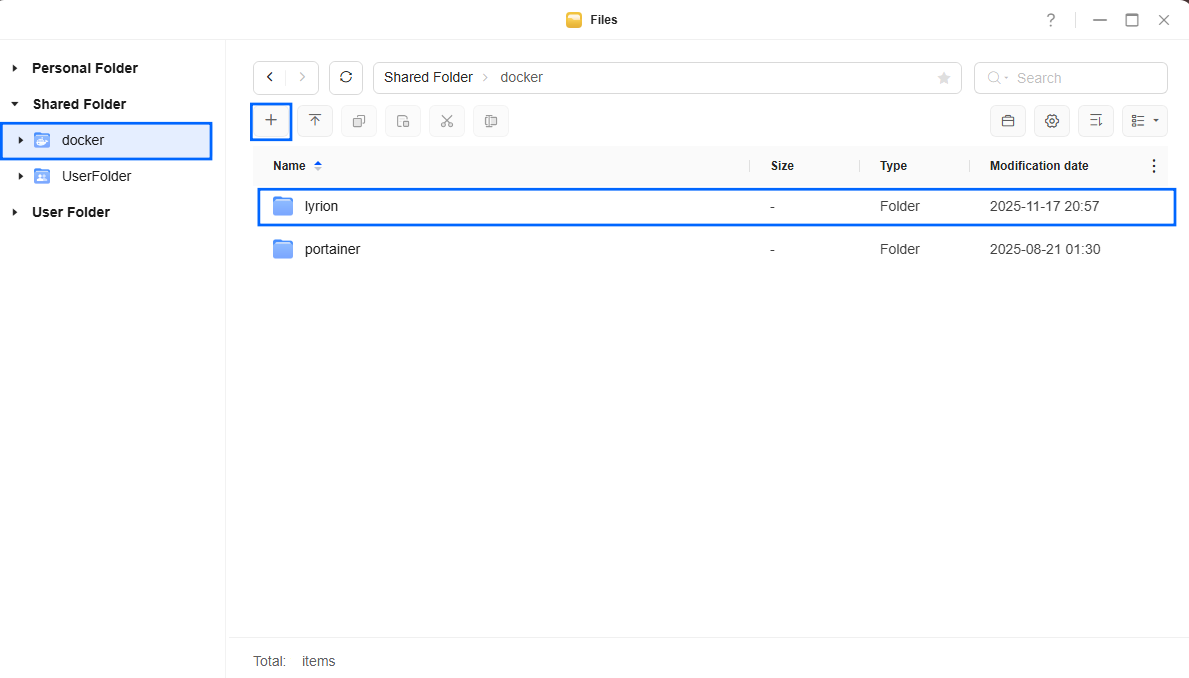

Go toĀ FilesĀ and open the docker folder. Inside the docker folder, create one new folder and name itĀ lyrion. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Lyrion Music Server UGREEN NAS Set up 1

  • STEP 4

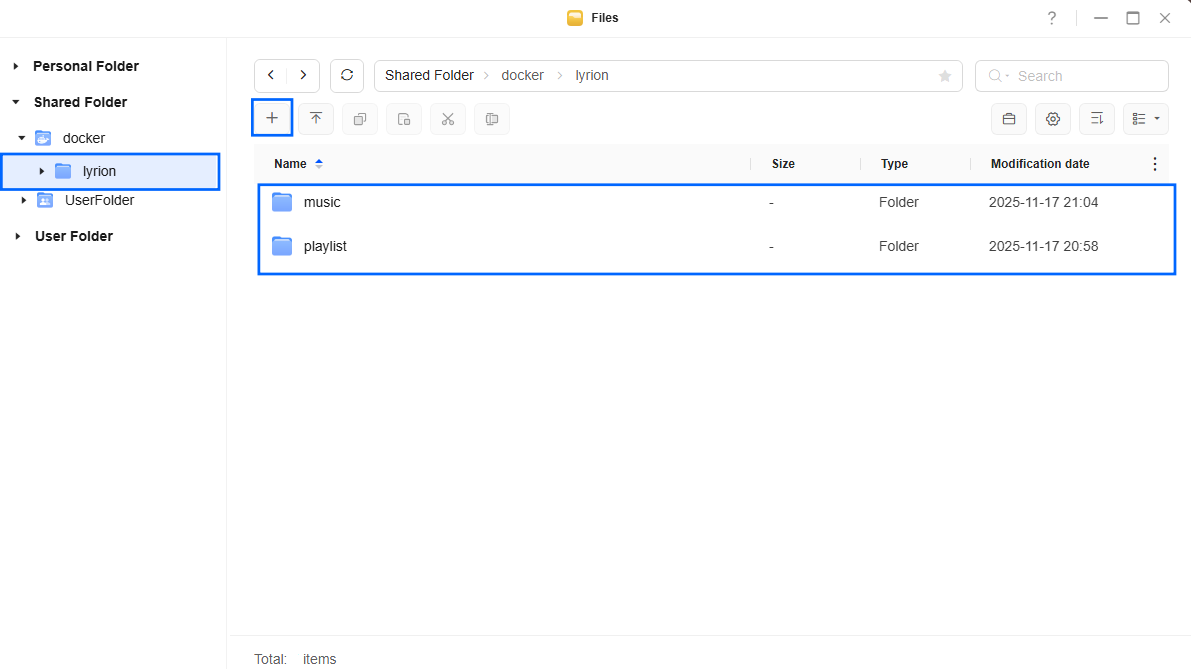

Now create two new folders inside the lyrion folder that you have previously created at STEP 3 and name them music and playlist. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Lyrion Music Server UGREEN NAS Set up 2

  • STEP 5

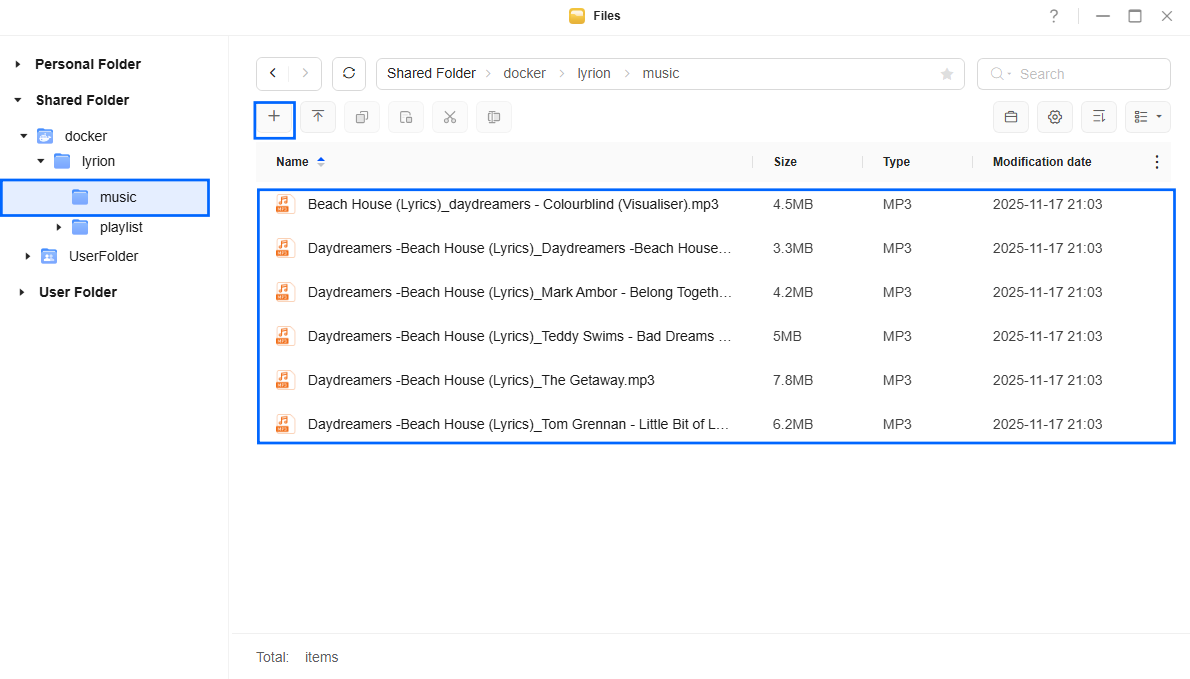

Populate your music folder with your own music. Follow the instructions in the image below.

Lyrion Music Server UGREEN NAS Set up 3



  • STEP 6

Log into Portainer using your username and password. On the left sidebar in Portainer, click onĀ HomeĀ thenĀ Live connect. Follow the instructions in the image below.

Portainer Add Stack NAS 1

On the left sidebar in Portainer, click on StacksĀ thenĀ + Add stack. Follow the instructions in the image below.

Portainer Add Stack NAS 2

  • STEP 7

In the Name field type in lyrion. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  lyrion:
    container_name: Lyrion-Music-Server
    image: lmscommunity/lyrionmusicserver:stable
    healthcheck:
      test: timeout 10s bash -c ':> /dev/tcp/127.0.0.1/9002' || exit 1
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    volumes:
      - /volume1/docker/lyrion:/config:rw
      - /volume1/docker/lyrion/music:/music:ro
      - /volume1/docker/lyrion/playlist:/playlist:rw
      - /etc/localtime:/etc/localtime:ro
    ports:
      - 9002:9002/tcp
      - 9090:9090/tcp
      - 3483:3483/tcp
      - 3483:3483/udp
    environment:
       HTTP_PORT: 9002
       PUID: 999
       PGID: 10
       TZ: Europe/Bucharest
       EXTRA_ARGS: "--advertiseaddr=192.168.1.18" # Your Own UGREEN Local NAS IP
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value numbers for PUIDĀ andĀ PGIDĀ with your own values. (Follow my step by step guide on how to do this.)
Note: Before you paste the code above in the Web editor area below, change the value for TZ.Ā (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Web editor area below, change the value for 192.168.1.18. Type in your own UGREEN Local NAS IP. 192.168.1.18 is my own Synology Local NAS IP.

Lyrion Music Server UGREEN NAS Set up 4

  • STEP 8

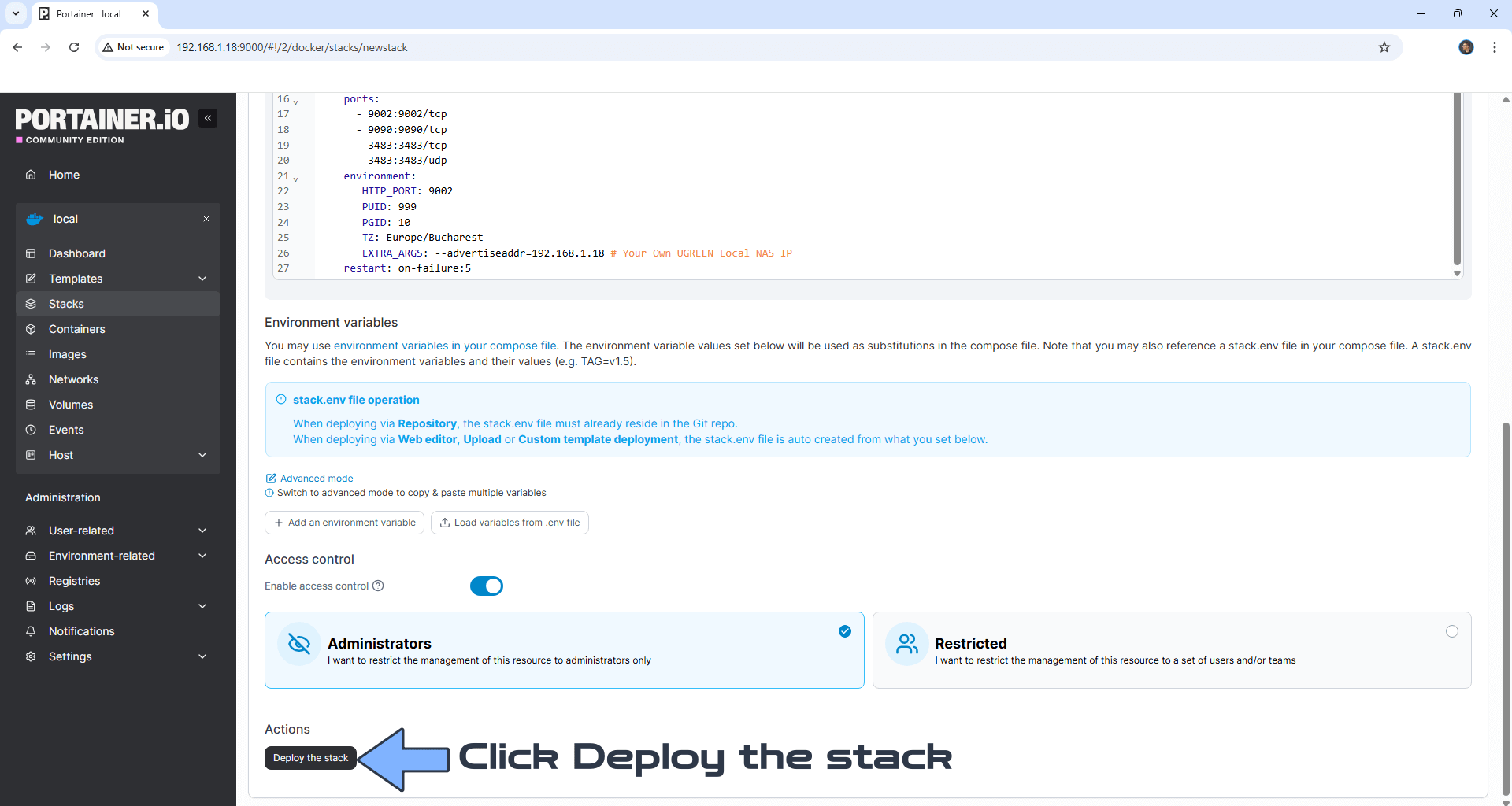

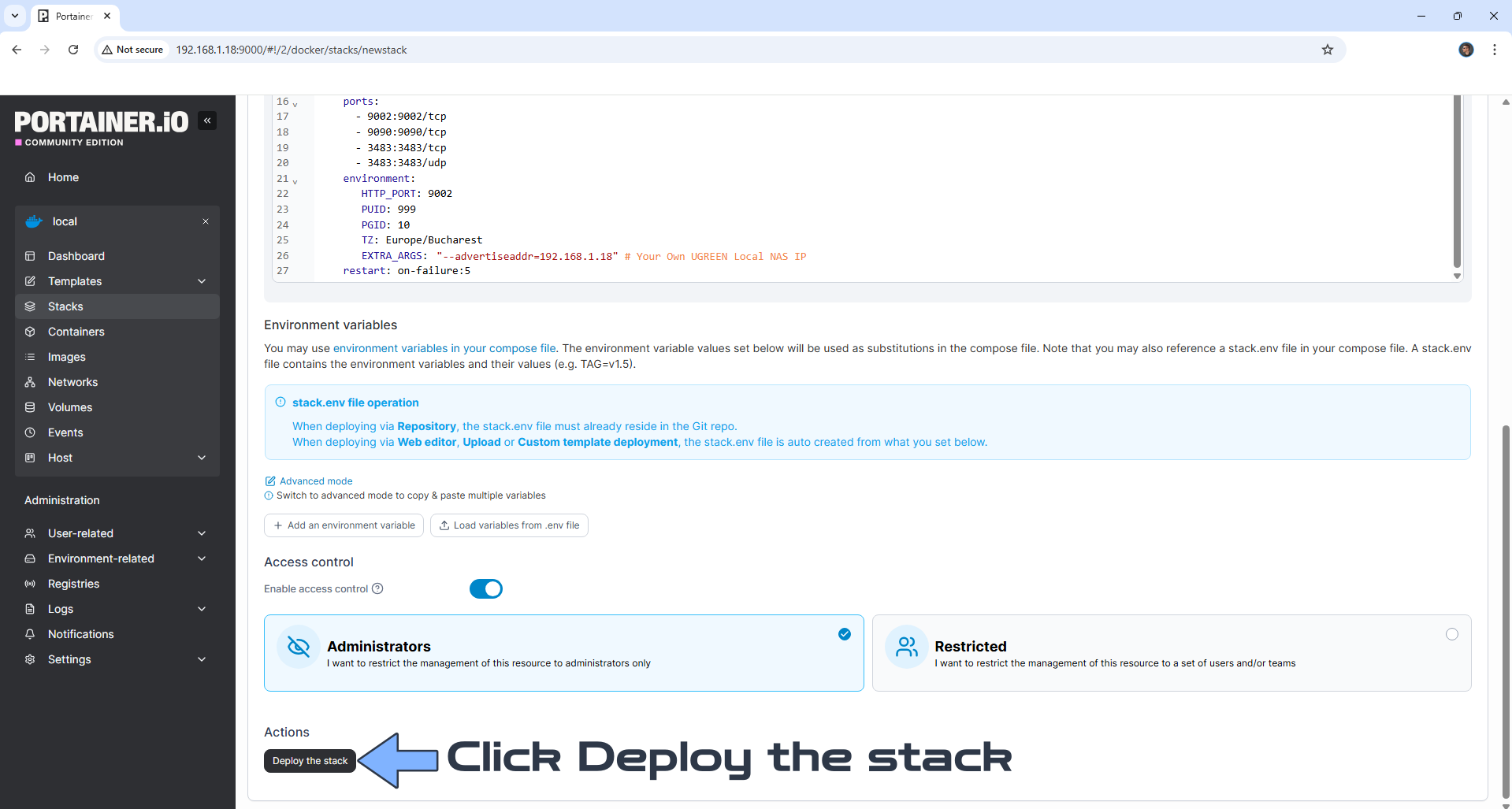

Scroll down on the page until you see a button namedĀ Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Lyrion Music Server UGREEN NAS Set up 5

  • STEP 9

If everything goes right, you will see the following message at the top right of your screen: ā€œSuccess Stack successfully deployedā€œ.

Portainer Success Stack NAS

  • STEP 10

šŸŸ¢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guidesĀ forget to support my work, or justĀ ignoreĀ STEP 1. Iā€™ve been very honest about this aspect of my work since the beginning: I donā€™t run any ADS, I donā€™t require subscriptions, paid or otherwise, I donā€™t collect IPs, emails, and I donā€™t have any referral links from Amazon or other merchants. I also donā€™t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. Itā€™s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

  • STEP 11

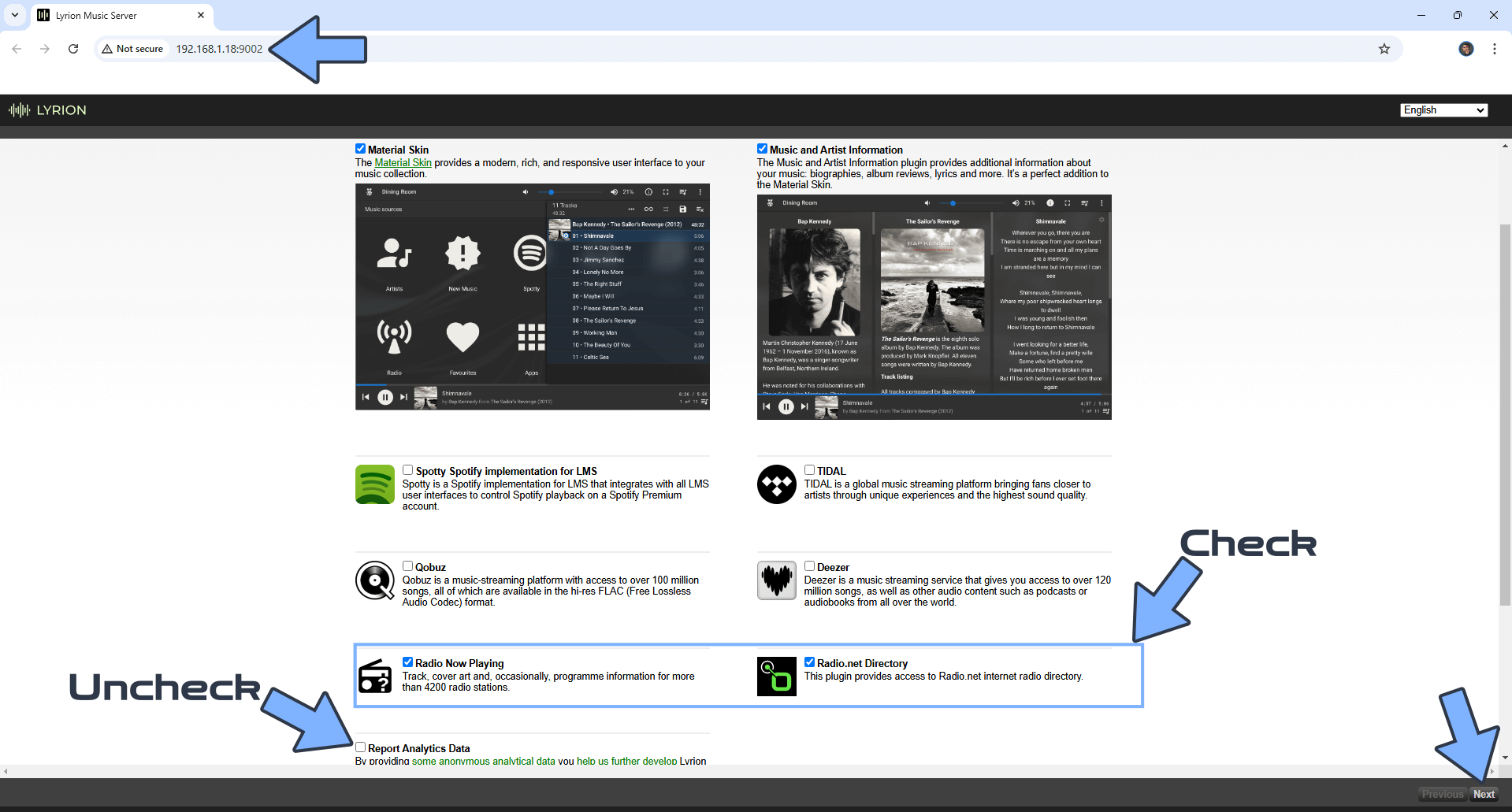

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type inĀ http://ugreen-ip-address:9002 If everything goes right, you will see the Lyrion Music Server dashboard. Check the Material Skin, Music and Artist information, Radio Now Playing and Radio net Directory. Click Next. Follow the instructions in the image below.

Lyrion Music Server UGREEN NAS Set up 6

  • STEP 12

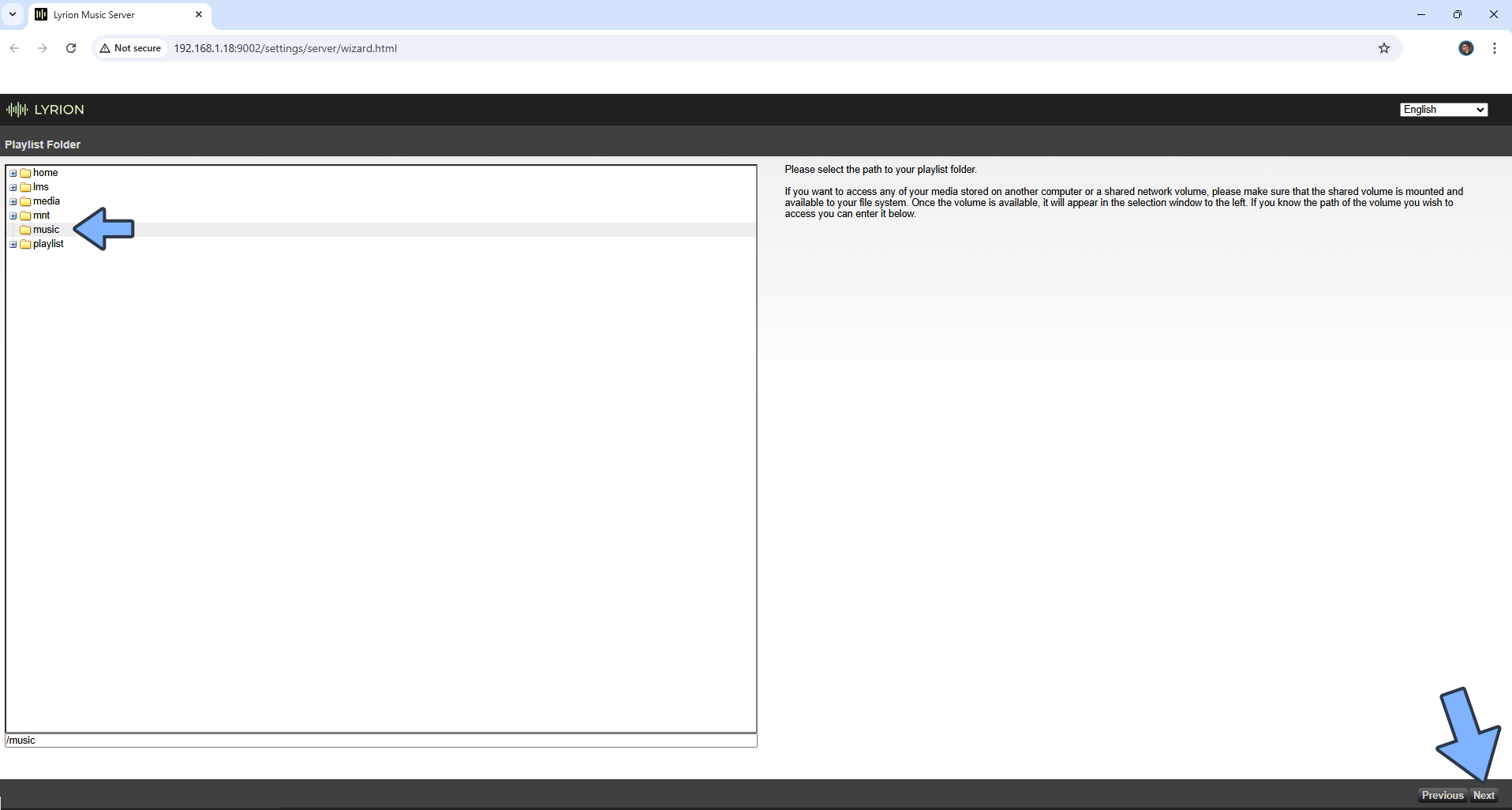

Select the music folder, then click Next. Follow the instructions in the image below.

Lyrion Music Server UGREEN NAS Set up 7

  • STEP 13

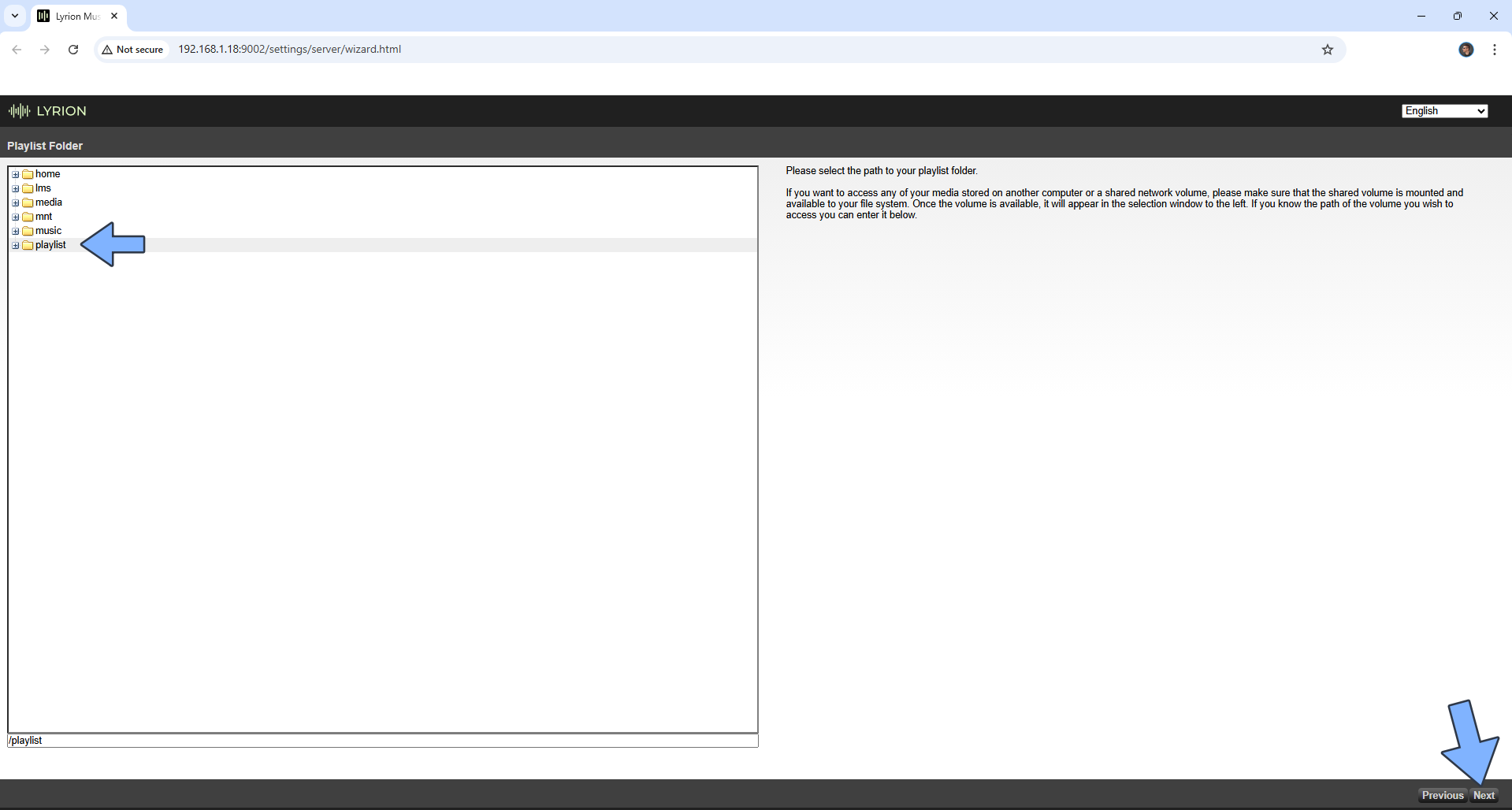

Select the playlist folder, then click Next. Follow the instructions in the image below.

Lyrion Music Server UGREEN NAS Set up 8

  • STEP 14

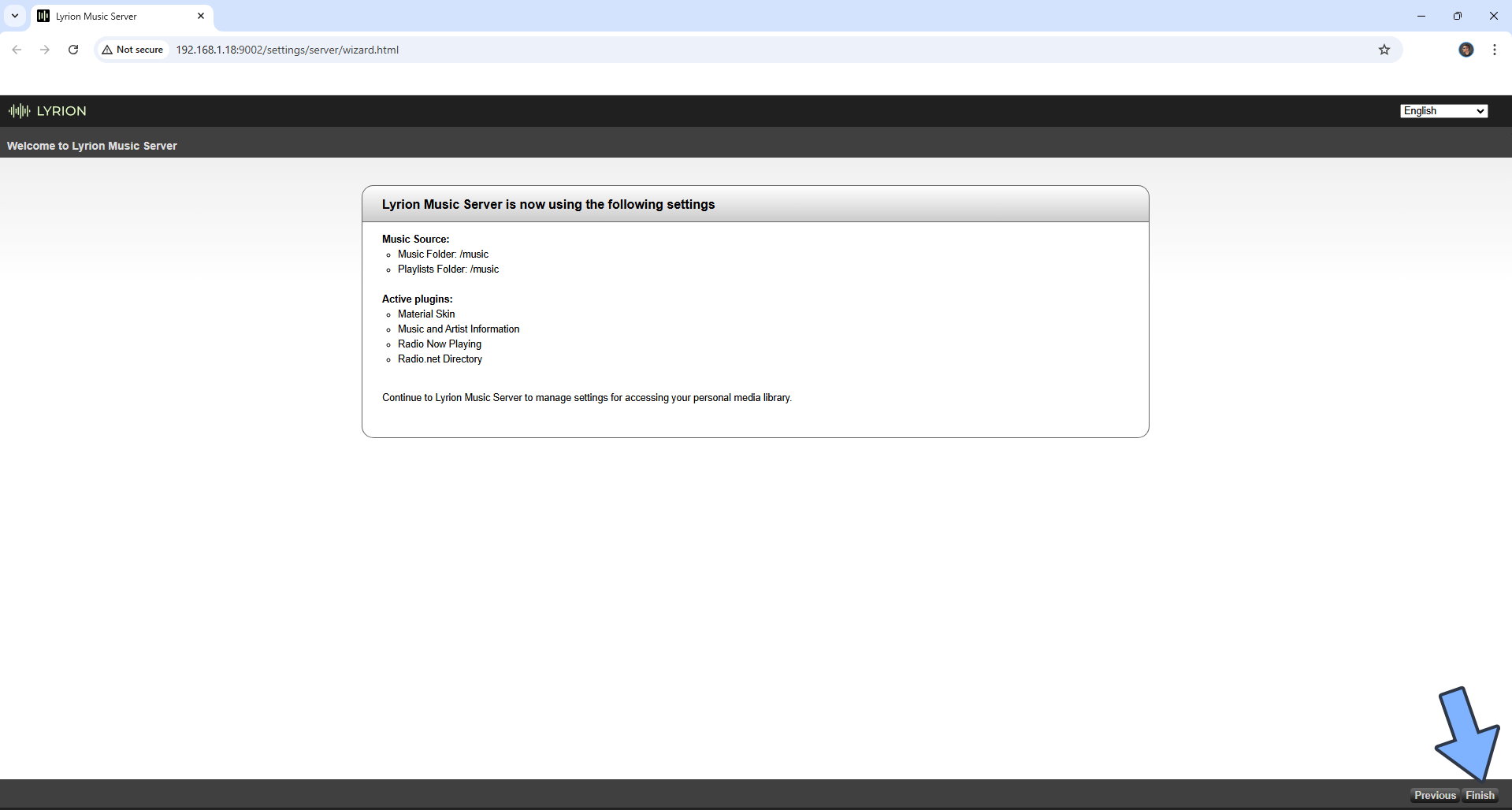

Click Finish. Follow the instructions in the image below.

Lyrion Music Server UGREEN NAS Set up 9

  • STEP 15

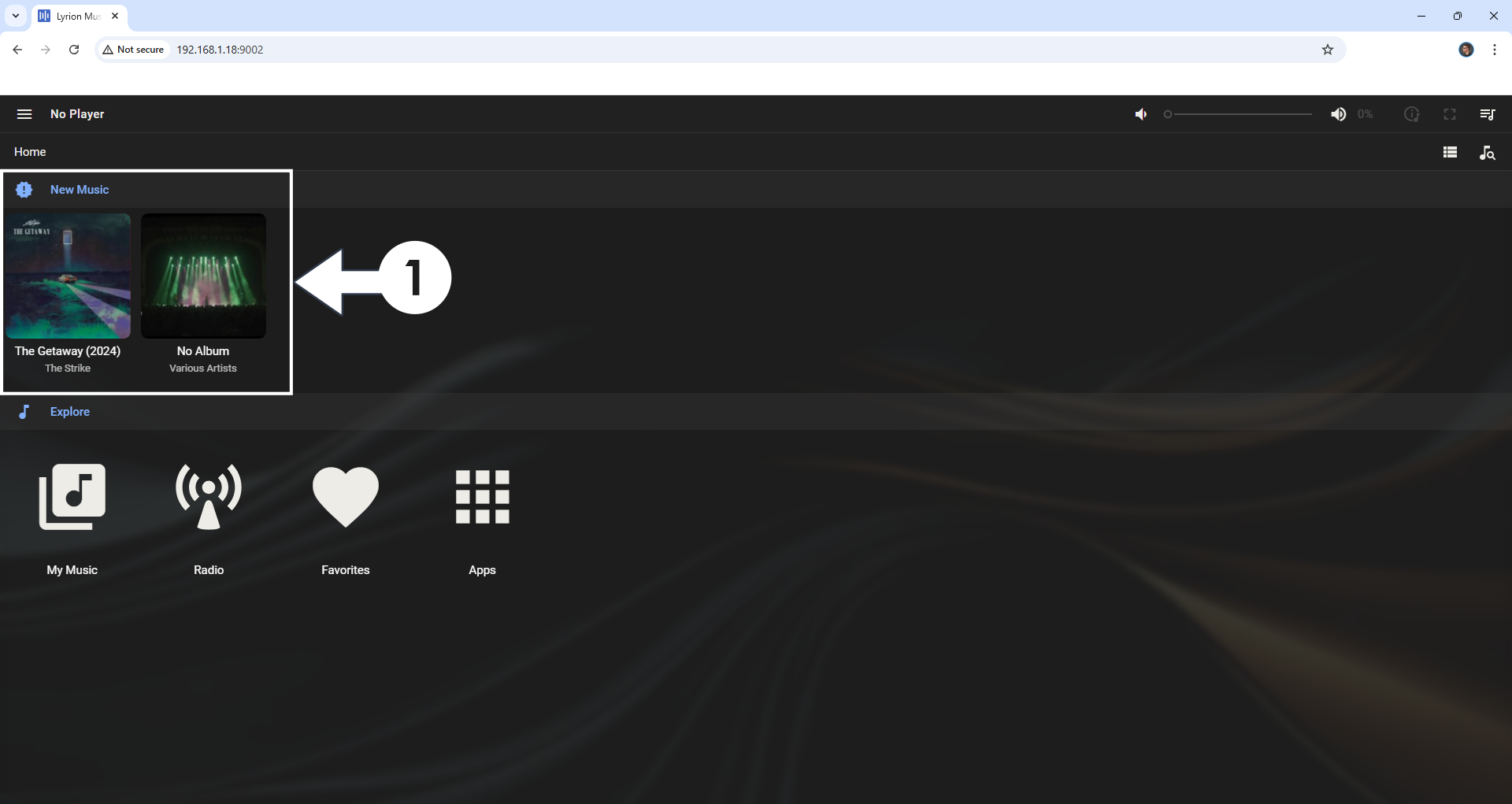

Click on your own Album/Music. āš ļøNote: You will see this area only if you have added Music/Music folders at STEP 5. Follow the instructions in the image below.

Lyrion Music Server UGREEN NAS Set up 10

  • STEP 16

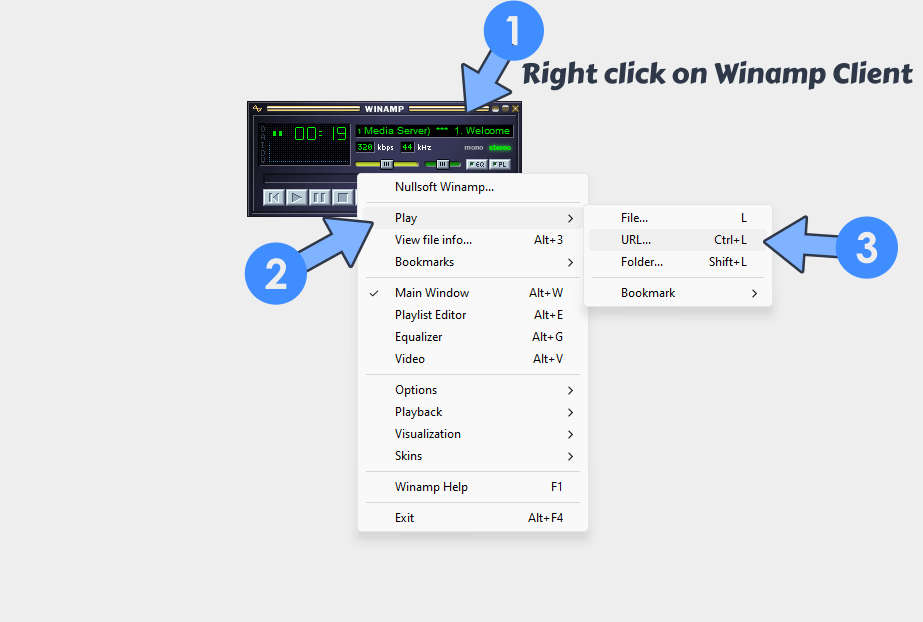

Lyrion Music Server is a server and, to play music, you need a client that acts as a player. To explain how to set up a new player on your Lyrion Music Server, I will use Winamp as an external player that is installed on my Windows 11 PC. You can also use VLC or other players. Open Winamp, then right click on it. A new pop up window will open. Click Play, then URL. Follow the instructions in the image below.

Lyrion Music Server UGREEN NAS Set up 11

  • STEP 17

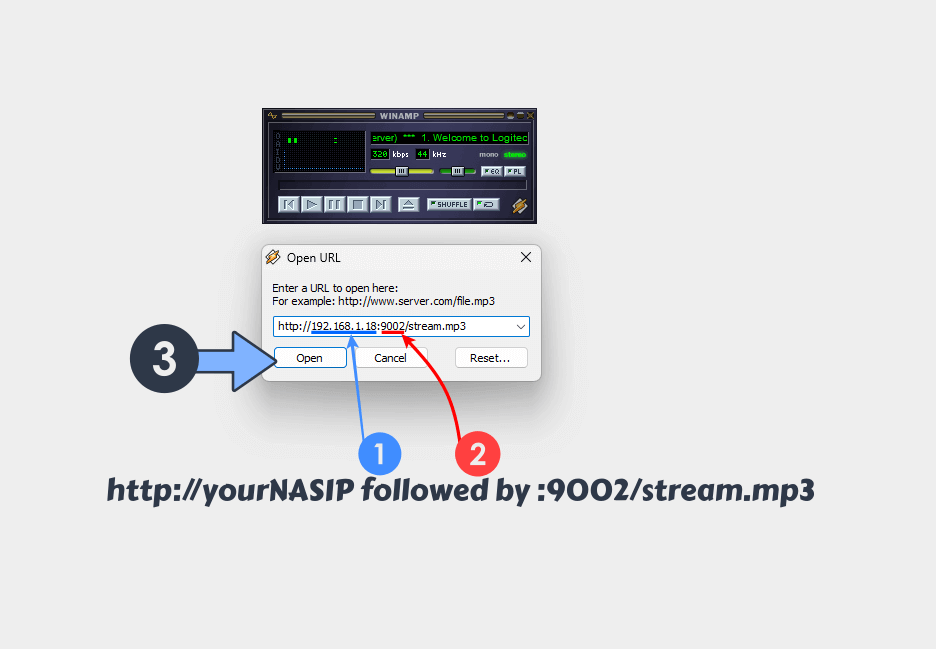

In the URL field, type in your local UGREEN NAS IP followed by :9002/stream.mp3 Then click Open. Follow the instructions in the image below. 192.168.1.18 is my own local UGREEN NAS IP. You should use your own local NAS IP.

http://192.168.1.18:9002/stream.mp3

Lyrion Music Server UGREEN NAS Set up 12

  • STEP 18

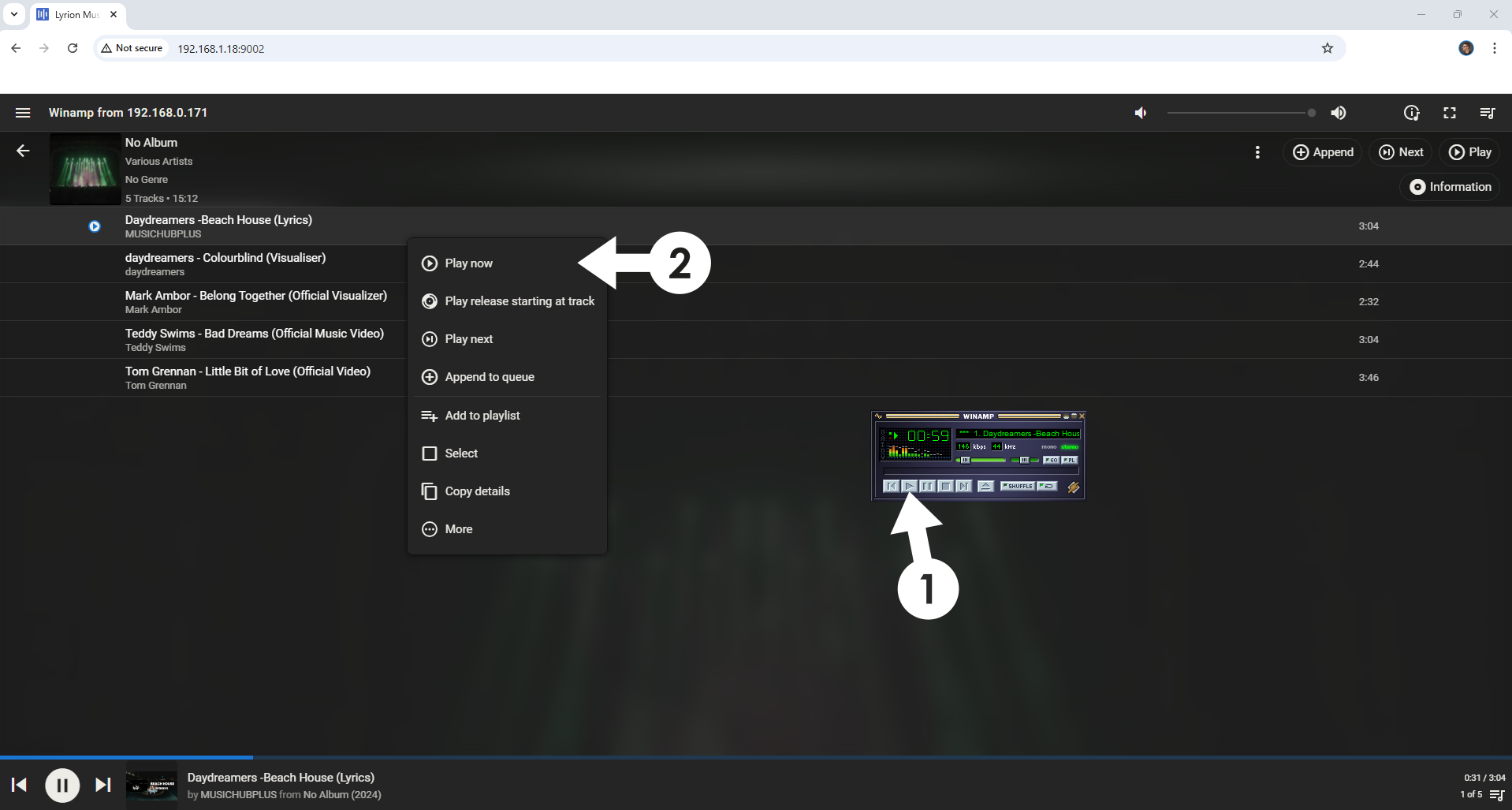

Click the Play icon on your WinAmp client, then select a song on your Lyrion page, then click Play now. Follow the instructions in the image below.

Lyrion Music Server UGREEN NAS Set up 14

  • STEP 19

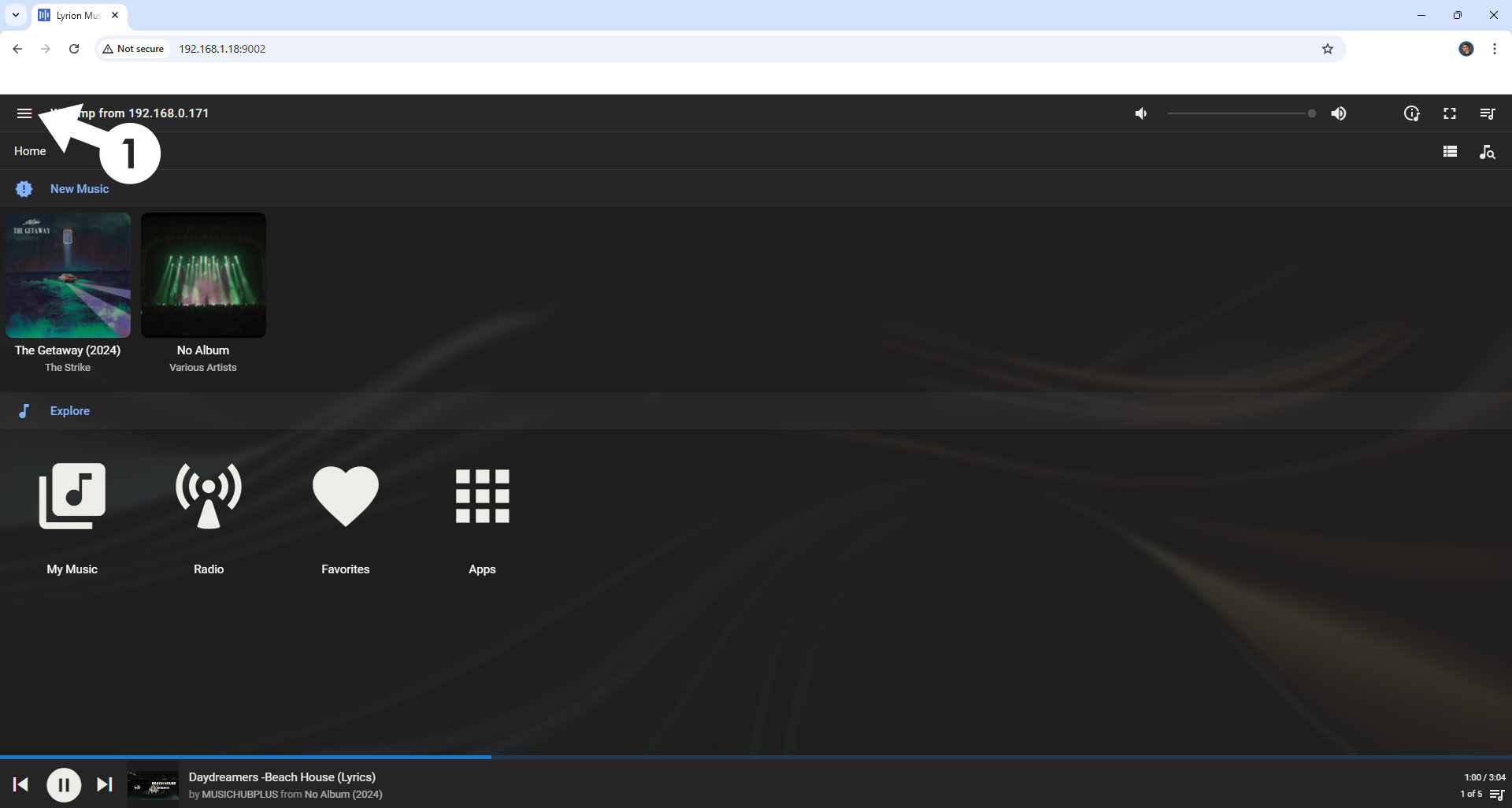

At the top left of the page, click on the 3 horizontal lines. Follow the instructions in the image below.

Lyrion Music Server UGREEN NAS Set up 15

  • STEP 20

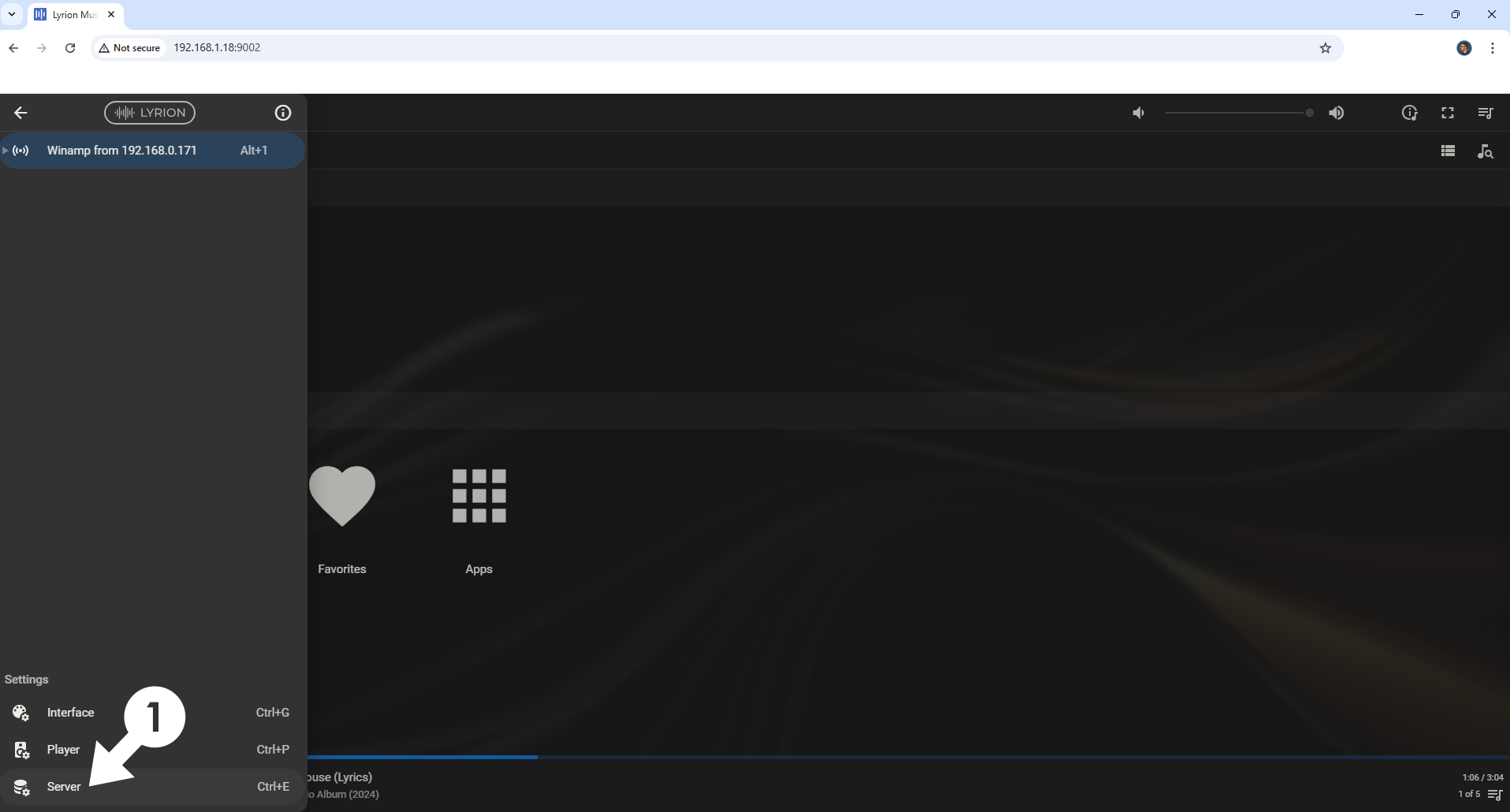

Click Server. Follow the instructions in the image below.

Lyrion Music Server UGREEN NAS Set up 16

  • STEP 21

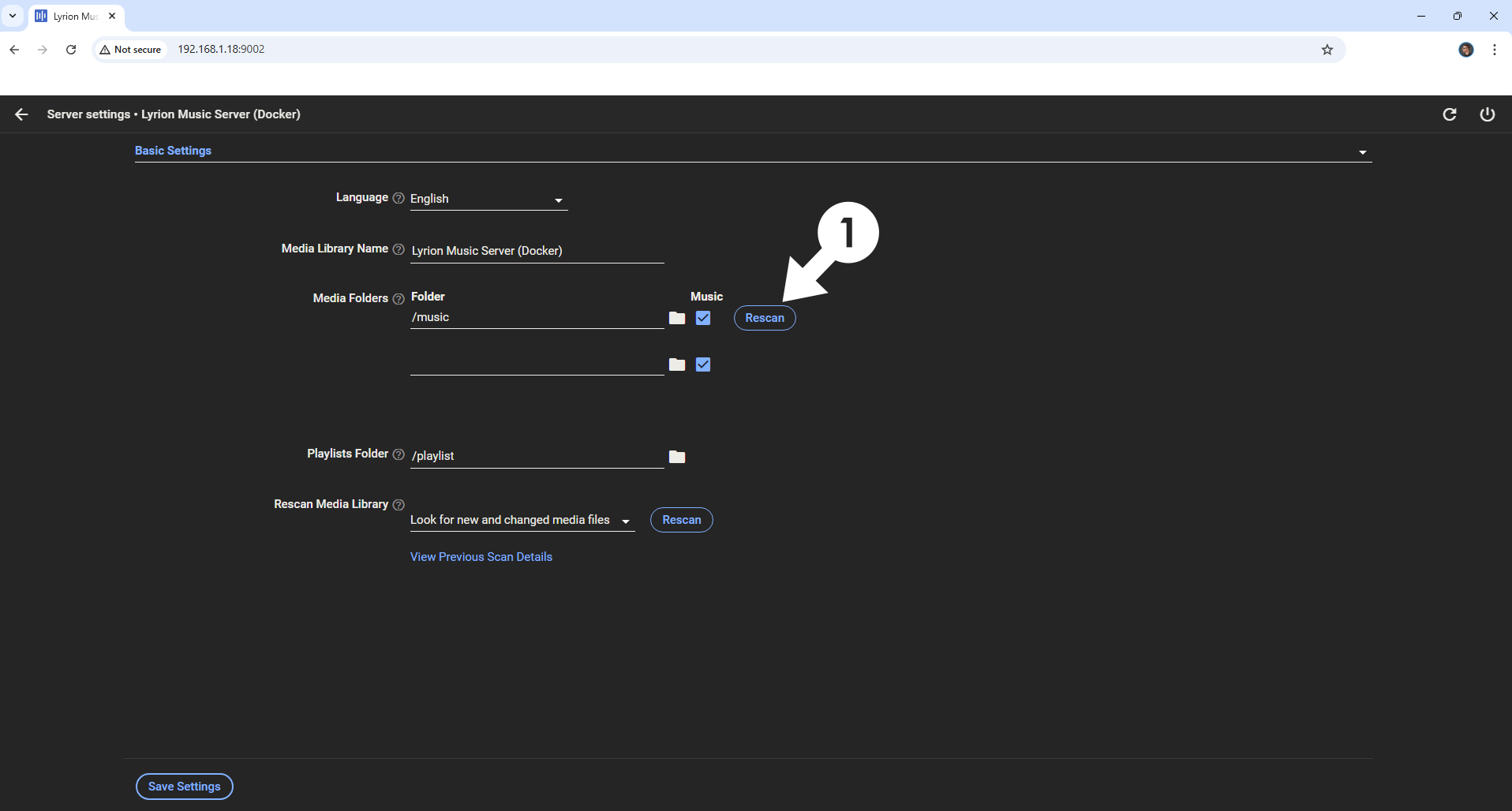

Every time you upload music/folders in your music folder at STEP 5, click Rescan to update your music Album/Music on the Lyrion page. Follow the instructions in the image below.

Lyrion Music Server UGREEN NAS Set up 17

  • STEP 22

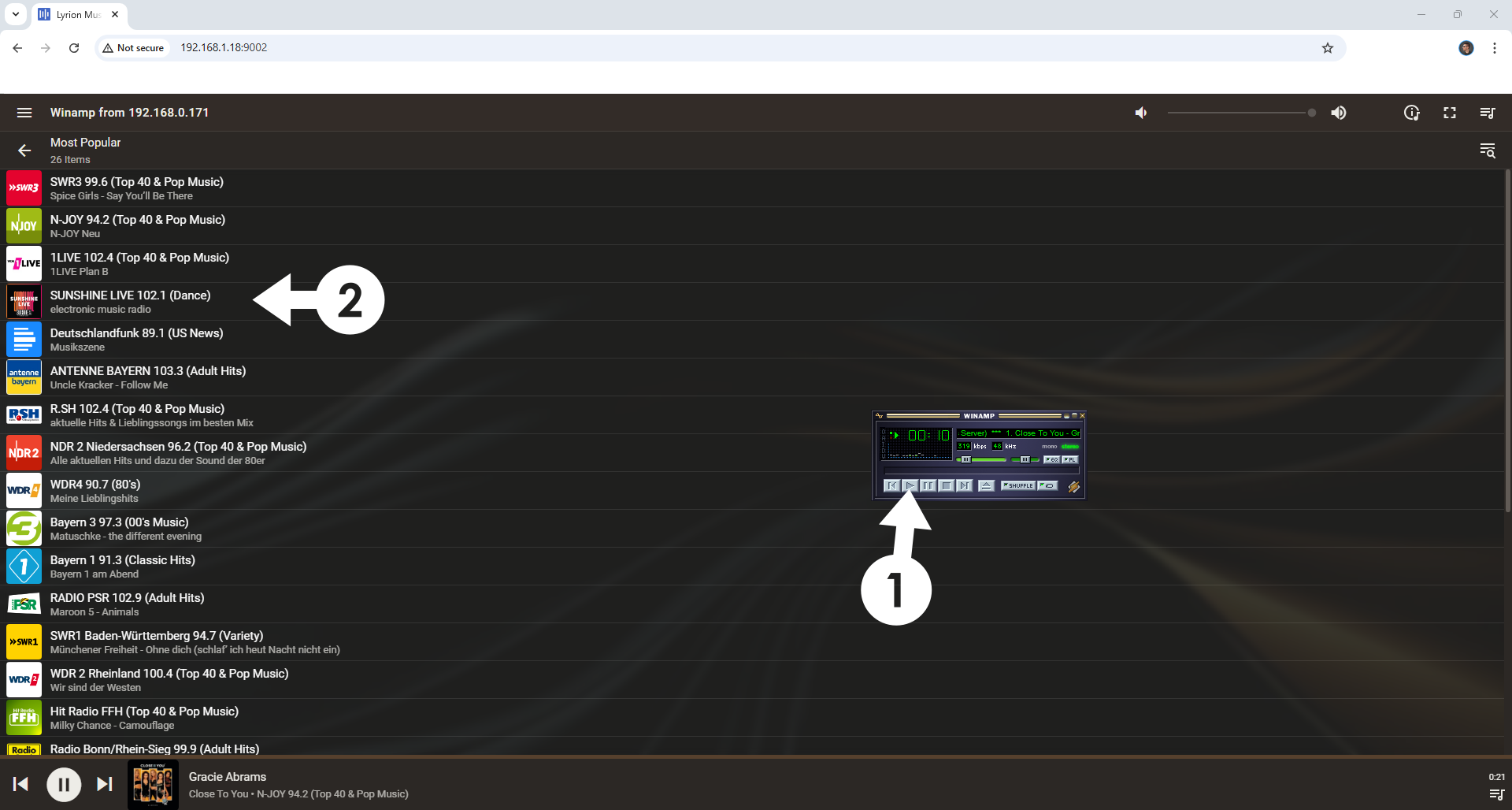

Thanks to Lyrion Music Server, you can also stream Radio on air. Click Radio. Follow the instructions in the image below.

Lyrion Music Server UGREEN NAS Set up 18

Enjoy Lyrion Music Server!

šŸ†˜TROUBLESHOOTING

Note: If you want to run the Lyrion Music Server container over HTTPS, check out How to Run Docker Containers Over HTTPS on Your UGREEN NAS. āš ļøRemember: if you want to use the player to play music, you need to port forward ports 3483 (TCP/UDP), 9090 (TCP), 9002 (TCP) in your router pointing to your local UGREEN NAS IP. It’s also mandatory to change the address at STEP 17 from http://yournasIP:9002/stream.mp3 to https://lyrion.ddns.net/stream.mp3
šŸ†™Note/Update/Container: How to Update Your Docker Containers on UGREEN NAS Using Portainer.
šŸ³Note: How to Create Docker Shortcuts on Desktop.
šŸ†•Note: How to Update Portainer to the latest version.
