Glances is a cross-platform monitoring tool which aims to present a large amount of monitoring information through a curses or Web based interface. The information dynamically adapts depending on the size of the user interface. In this step by step guide I will show you how to install Glances on your UGREEN NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest Glances 4.1.2.1 release.

• STEP 1

Please Support My work by Making a Donation.

• STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your UGREEN NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

• STEP 3

Add Read & Write Permissions to the Docker Folder. If you have already added the Read and Write Permissions to the Docker Folder, skip this STEP.

• STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

• STEP 5

In the Name field type in glances. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  glances:
    container_name: Glances
    image: nicolargo/glances:latest-full
    healthcheck:
     test: curl -f http://localhost:61208/ || exit 1
    mem_limit: 4g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    pid: host
    privileged: true
    network_mode: host
    restart: on-failure:5
    ports:
      - 61208:61208
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock:ro
    environment:
      GLANCES_OPT: -w

• STEP 6

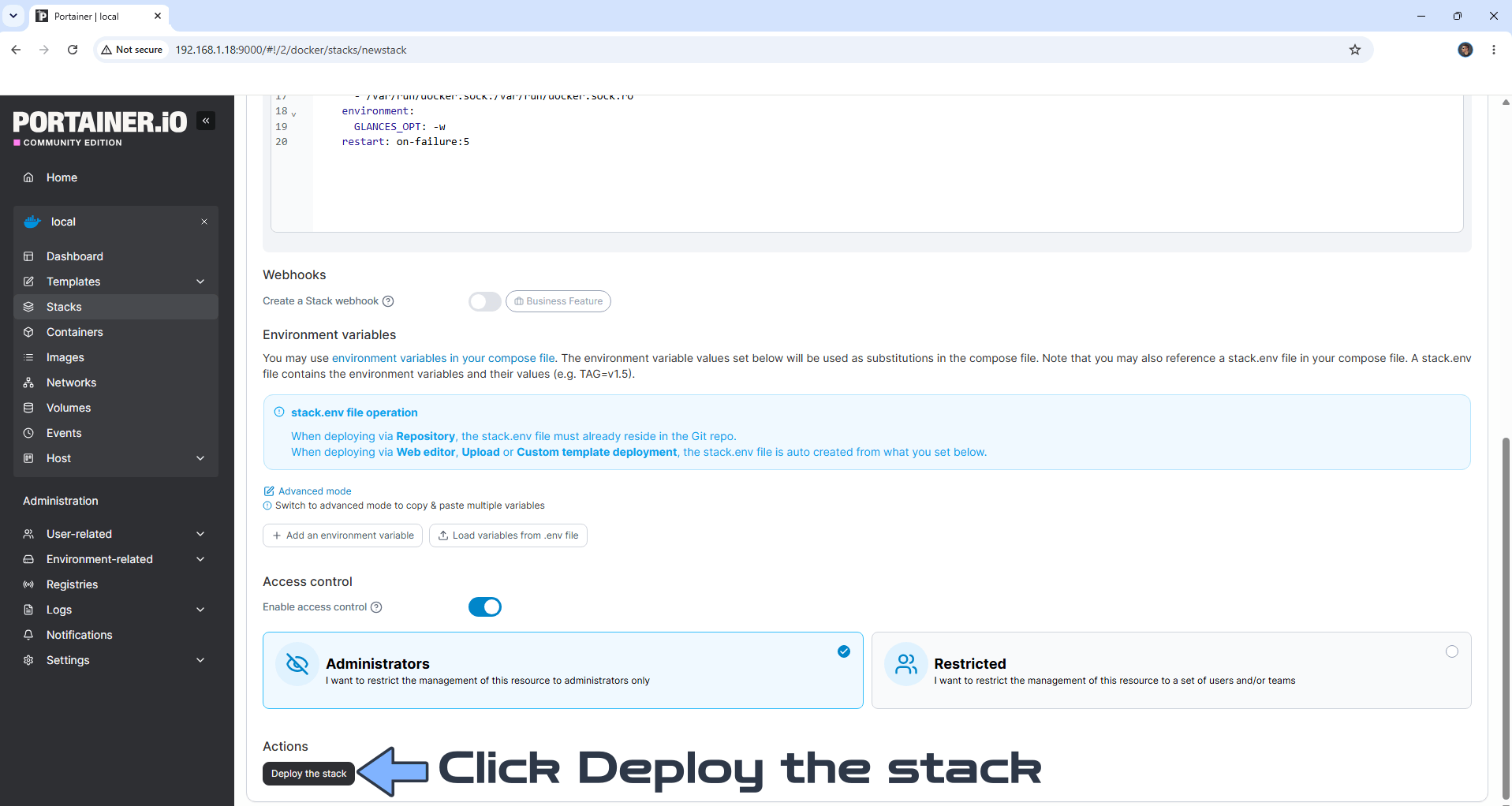

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

• STEP 7

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

• STEP 8

Go back to STEP 1 or you will deal with karma 🙂

• STEP 9

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://ugreennas-ip-address:61208 follow the instructions in the image below.

Enjoy Glances on your UGREEN NAS!

This post was updated on Wednesday / August 28th, 2024 at 4:38 AM
