Dashdot (or dash.) is a modern server dashboard, developed with a simple, but performant stack and designed with glassmorphism in mind. It is intended to be used for smaller VPS and private servers like a UGREEN NAS device. In this step by step guide I will show you how to install Dashdot on your UGREEN NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest Dash. v6.3.4 release.

💡Note: Check out my guide on how to Install Dashdot on Your Synology NAS.

• STEP 1

Please Support My work by Making a Donation.

• STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your UGREEN NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

• STEP 3

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Home then Live connect. Follow the instructions in the image below.

• STEP 4

In the Name field type in dashdot. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  dashdot:
    container_name: Dashdot
    image: mauricenino/dashdot
    mem_limit: 4g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    volumes:
      - /:/mnt/host:ro
    ports:
      - 7512:3001
    privileged: true
    environment:
      DASHDOT_ENABLE_CPU_TEMPS: true
      DASHDOT_OVERRIDE_OS: UGOS PRO
    restart: on-failure:5

• STEP 5

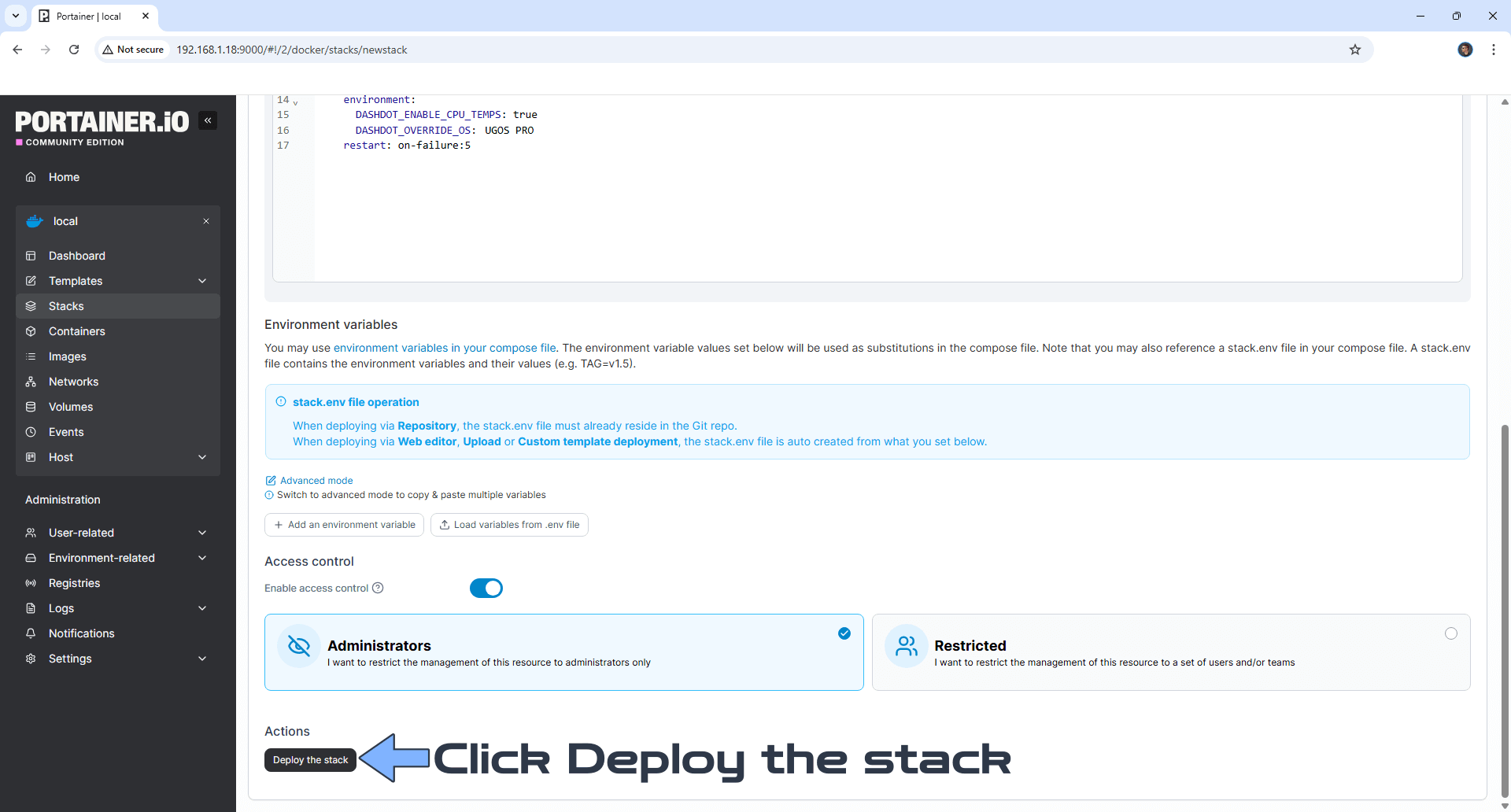

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

• STEP 6

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

• STEP 7

🟢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guides forget to support my work, or just ignore STEP 1. I’ve been very honest about this aspect of my work since the beginning: I don’t run any ADS, I don’t require subscriptions, paid or otherwise, I don’t collect IPs, emails, and I don’t have any referral links from Amazon or other merchants. I also don’t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. It’s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

• STEP 8

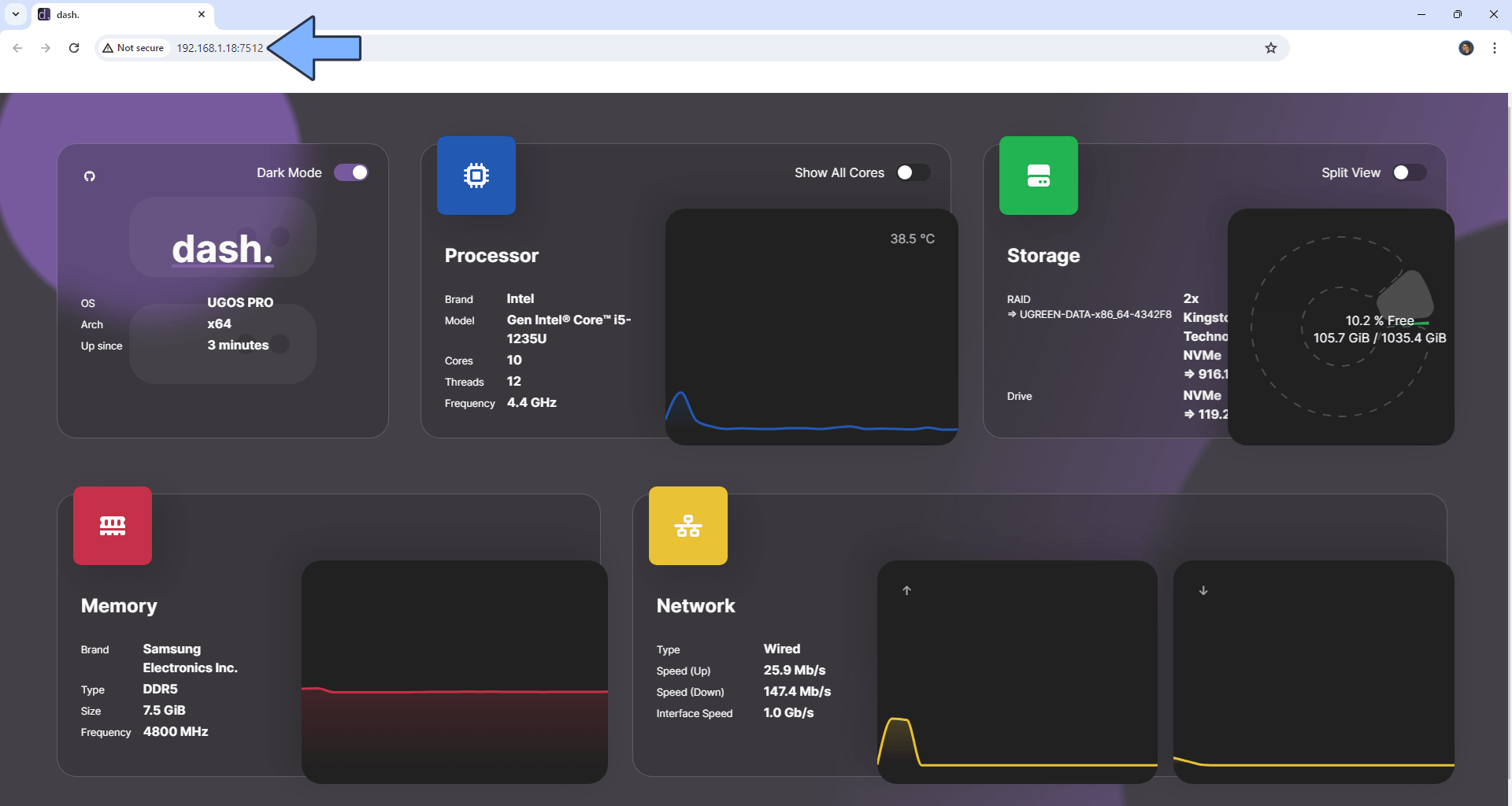

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://ugreen-ip-address:7512

Enjoy Dashdot on your UGREEN NAS!

🆘TROUBLESHOOTING

Note: If you want to run the Dashdot container over HTTPS, check out How to Run Docker Containers Over HTTPS on Your UGREEN NAS.

🆙Note/Update/Container: How to Update Your Docker Containers on UGREEN NAS Using Portainer.
🐳Note: How to Create Docker Shortcuts on Desktop.
🆕Note: How to Update Portainer to the latest version.
🆕Note: How to Clean Docker.
